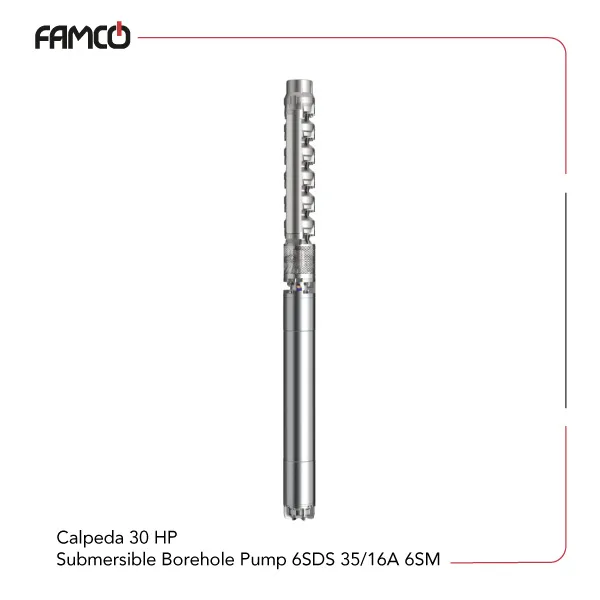

Calpeda 30 HP Submersible Borehole Pump 6SDS 35/16A 6SM

22 kW (30 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Calpeda Pumps, Calpeda Submersible Pumps

Overview of Calpeda 30 HP Submersible Borehole Pump 6SDS 35/16A 6SM

The 6SDS 35/16A 6SM Calpeda is a 30 HP industrial pump designed for high-capacity submerged conditions. Considering how it reaches heads of up 222 meterts, this Calpeda submersible pump- is suitable for applications requiring significant lifting height and flow rate, such as water supply systems, irrigation, or industrial processes. The pump’s robust motor and high flow capacity make it a reliable choice for demanding environments. Its ability to handle water with some sand content adds to its versatility, ensuring it performs well in less filtered water sources. The pump’s design emphasizes durability and efficiency, making it a practical solution for large-scale water handling needs.

Calpeda 30 HP Submersible Borehole Pump 6SDS 35/16A 6SM Specifications

This pump is designed to operate efficiently at a maximum liquid temperature of 25°C. It can handle water with up to 100 grams of sand per cubic meter, making it suitable for various water conditions. The motor features 2 poles and runs at a speed of approximately 2900 revolutions per minute. This 6SDS series Calpeda submersible pump could be the one for you if you want a pump that supports a three-phase power supply of 400 volts or 400/690 volts, providing flexibility for different electrical setups. The pump’s power output is 22 kilowatts, equivalent to 30 horsepower, offering more than acceptable performance for demanding applications. It can generate a maximum delivery head of 222 meters, making it capable of lifting water over significant heights. The maximum flow rate is 767 liters per minute, allowing for high-volume water transfer. Overall, this pump combines durability, efficiency, and high capacity, making it ideal for industrial, municipal, or large-scale water management projects.

Specification	Value
Liquid temperature	up to 25 °C
Maximum amount of sand in the water	100 g/m3
Number of poles	2
Frequency	50 Hz
Speed	≈ 2900 rpm
Three-phase voltage	400 V; 400/690 V
Power	22 kW
Power (HP)	30 HP
Max. delivery head	222 m
Max. flow rate	767 l/min

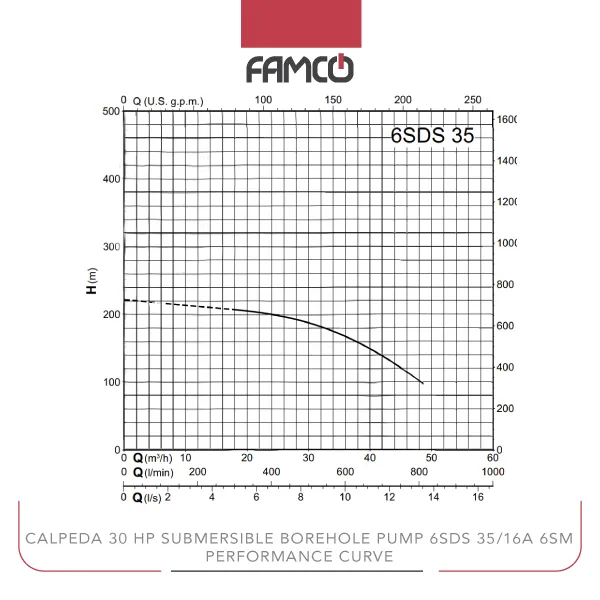

Calpeda 30 HP Submersible Borehole Pump 6SDS 35/16A 6SM Performance Data

m³/h	0	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46
l/min	0	300	333	367	400	433	467	500	533	567	600	633	667	700	733	767
head (m)	222	208	206	203	201	197	193	188	183	176	168	160	150	139	128	116

Calpeda 30 HP Submersible Borehole Pump 6SDS 35/16A 6SM Applications

Water supply systems
Irrigation projects
Industrial water transfer
Municipal water management

Calpeda 30 HP Submersible Borehole Pump 6SDS 35/16A 6SM Benefits

High flow rate for large volume transfer
Strong lifting capacity with 222 m head
Durable motor suitable for tough conditions
Flexible voltage options for various setups

Calpeda 30 HP Submersible Borehole Pump 6SDS 35/16A 6SM Price List

No.	Name	Price
1	Calpeda 30 HP Submersible Borehole Pump 6SDS 35/16A 6SM Price33	Contact us

Brand	Calpeda
Applications	Garden irrigation, Municipal water supply, Water Supply Connections
Power (kW)	22
Power (HP)	30
Maximum Delivery Head (m)	222
Maximum Flow Rate (L/min)	767
