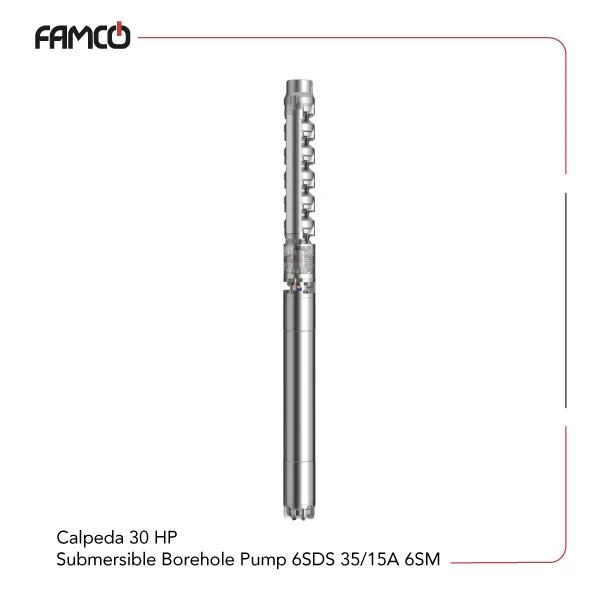

Calpeda 30 HP Submersible Borehole Pump 6SDS 35/15A 6SM Specifications
This pump operates efficiently at a maximum liquid temperature of 25°C and can handle up to 100 grams of sand per cubic meter of water. It features a two-pole motor running at approximately 2900 revolutions per minute, suitable for standard 50 Hz power supply. The Calpeda submersible pumps of this range support three-phase voltage options of 400 V and 400/690 V, providing flexibility for different electrical setups. With a power output of 22 kilowatts or 30 horsepower, it delivers a maximum head of 208 meters and a flow rate of up to 767 liters per minute.
The pump is designed for robust performance in demanding environments, making it ideal for water transfer, irrigation, and industrial applications where high flow and pressure are required.
| Specification | Value |
| Liquid temperature | up to 25 °C |
| Maximum amount of sand in the water | 100 g/m3 |
| Number of poles | 2 |
| Frequency | 50 Hz |
| Speed | ≈ 2900 rpm |
| Three-phase voltage | 400 V; 400/690 V |
| Power | 22 kW |
| Power (HP) | 30 HP |
| Max. delivery head | 208 m |
| Max. flow rate | 767 l/min |

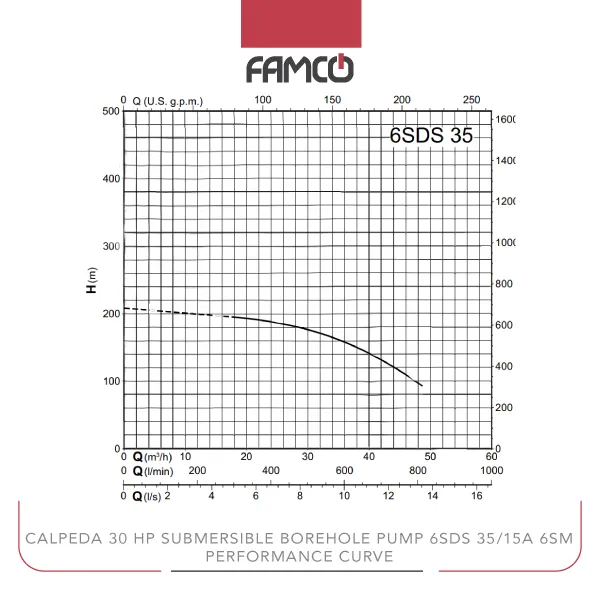

Calpeda 30 HP Submersible Borehole Pump 6SDS 35/15A 6SM Performance Data
| m³/h | 0 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 |
| l/min | 0 | 300 | 333 | 367 | 400 | 433 | 467 | 500 | 533 | 567 | 600 | 633 | 667 | 700 | 733 | 767 |
| head (m) | 208 | 196 | 194 | 191 | 189 | 186 | 182 | 177 | 172 | 166 | 159 | 151 | 142 | 132 | 122 | 110 |
Calpeda 30 HP Submersible Borehole Pump 6SDS 35/15A 6SM Applications
- Water transfer in industrial settings
- Irrigation systems for agriculture
- Municipal water supply projects
- Industrial fluid handling
Calpeda 30 HP Submersible Borehole Pump 6SDS 35/15A 6SM Benefits
- High flow rate of 767 liters per minute
- Maximum head of 208 meters for strong pressure
- Supports sand content up to 100 g/m3
- Flexible voltage options for different setups
Calpeda 30 HP Submersible Borehole Pump 6SDS 35/15A 6SM Price List
| No. | Name | Price |
| 1 | Calpeda 30 HP Submersible Borehole Pump 6SDS 35/15A 6SM Price | Contact us |
