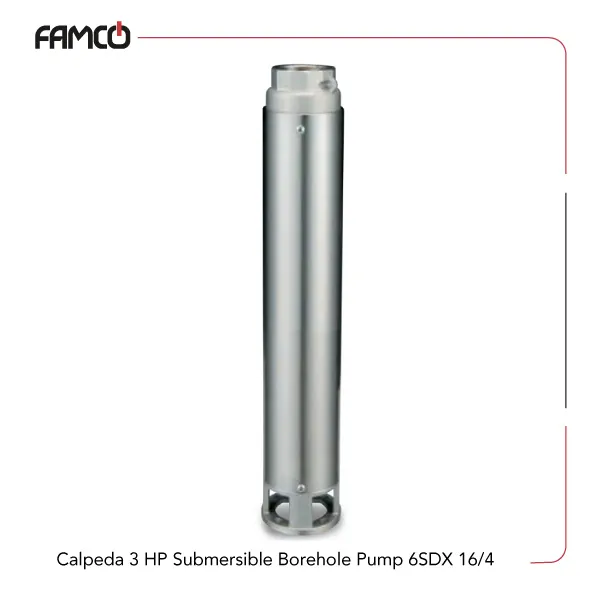

Calpeda 3 HP Submersible Borehole Pump 6SDX 16/4

Calpeda 3 HP Submersible Borehole Pump 6SDX 16/4 Specifications

This product features a three-phase voltage of 400 V, with an option for 400/690 V, making it suitable for various industrial power setups. It delivers a power output of 2.2 kW, equivalent to 3 HP, providing reliable performance for demanding tasks. The pump can generate a maximum delivery head of 43 meters, allowing it to lift water efficiently over significant heights. Its maximum flow rate reaches 383 liters per minute, making it ideal for applications requiring high-volume water movement. Operating at approximately 2900 RPM, the pump you see here from the Calpeda submersible pump series maintains a steady and efficient speed. It is designed to handle water temperatures up to 30 °C and can manage water with up to 50 grams of sand per cubic meter, suitable for environments with some particulate matter. The device features a two-pole motor and operates at a frequency of 50 Hz. It supports an immersion depth of up to 150 meters, making it versatile for deep water applications. The protection rating of IP 68 ensures the pump is dust-tight and protected against continuous immersion, suitable for harsh conditions and outdoor use.

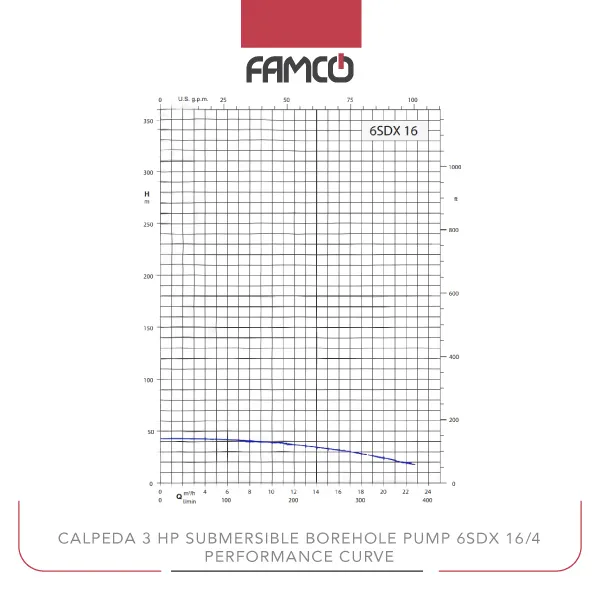

Calpeda 3 HP Submersible Borehole Pump 6SDX 16/4 Performance Data

Calpeda 3 HP Submersible Borehole Pump 6SDX 16/4 Applications

• Water transfer in industrial settings
• Deep well irrigation systems
• Drainage and flood control
• Water supply for construction sites

Calpeda 3 HP Submersible Borehole Pump 6SDX 16/4 Benefits

• High durability with IP 68 protection rating
• Capable of handling deep immersion up to 150 meters
• Efficient performance with a maximum flow rate of 383 l/min
• Suitable for water with some sand content, up to 50 g/m3

Calpeda 3 HP Submersible Borehole Pump 6SDX 16/4 Price List
