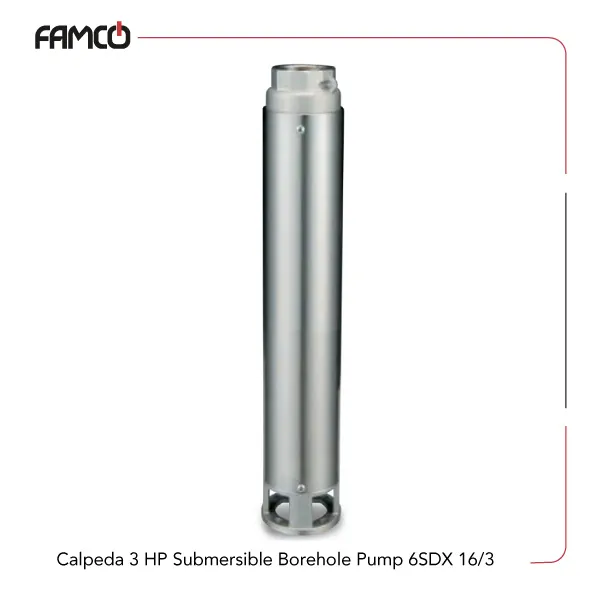

Calpeda 3 HP Submersible Borehole Pump 6SDX 16/3

2.2 kW (3 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Calpeda Pumps, Calpeda Submersible Pumps

Overview of Calpeda 3 HP Submersible Borehole Pump 6SDX 16/3

The 6SDX 16/3 is a 3 HP Calpeda submersible pump. It is ideal for applications requiring deep immersion, high flow rates, and reliable operation. Its construction and protection rating make it suitable for outdoor use and challenging environments. The pump’s versatility allows it to be used in irrigation, water supply, and drainage systems, among others. With a powerful motor and efficient design, it ensures consistent performance even under demanding conditions. Its ability to handle water with some sand content and operate at significant depths makes it a versatile choice for many industrial and agricultural tasks.

Calpeda 3 HP Submersible Borehole Pump 6SDX 16/3 Specifications

This product features a three-phase voltage system compatible with 400 V and 690 V supplies. It delivers a power output of 2.2 kW, equivalent to 3 HP, making it suitable for various demanding applications. The pump can generate a maximum head of 32 meters, allowing it to lift water efficiently over significant heights. Its maximum flow rate reaches 383 liters per minute, ensuring a steady and reliable water supply. Operating at approximately 2900 rpm, the device maintains a consistent performance. It is designed to work with water temperatures up to 30 °C and can handle water containing up to 50 grams of sand per cubic meter, making it suitable for environments with some particulate matter. The Calpeda submersible pump features a two-pole motor and operates at a frequency of 50 Hz. It can be submerged up to 150 meters deep, providing flexibility for various installation depths. Its robust protection rating of IP 68 ensures durability and resistance to dust and water ingress, suitable for outdoor and harsh conditions.

Calpeda 3 HP Submersible Borehole Pump 6SDX 16/3

Specification	Value
Three-phase voltage (V)	400 V; 400/690 V
Power (kW)	2.2
Power (HP)	3
Max. delivery head (m)	32
Max. flow rate (l/min)	383
Speed (rpm)	≈ 2900
Liquid temperature	30 °C
Maximum amount of sand in water (g/m3)	50
Number of poles	2
Frequency (Hz)	50
Max. immersion depth (m)	150
Protection	IP 68

Calpeda 3 HP Submersible Borehole Pump 6SDX 16/3 Performance Data

m³/h	0	3	6	9	12	15	18	21	23
l/min	0	50	100	150	200	250	300	350	383
head (m)	32	32	32	30	28	25	21	17	13

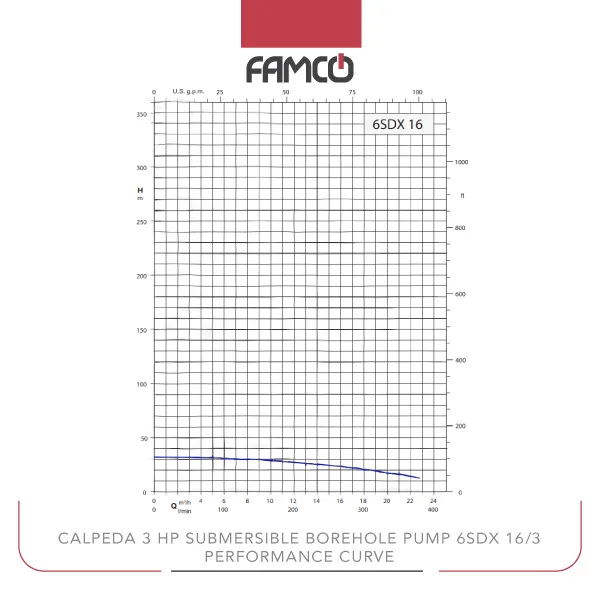

Calpeda 3 HP Submersible Borehole Pump 6SDX 16/3 Performance Curve

Calpeda 3 HP Submersible Borehole Pump 6SDX 16/3 Applications

Irrigation systems in agriculture
Water supply for residential or commercial buildings
Drainage and flood control projects
Industrial water transfer and pumping

Calpeda 3 HP Submersible Borehole Pump 6SDX 16/3 Benefits

High efficiency with a powerful 2.2 kW motor
Suitable for deep immersion up to 150 meters
Durable IP 68 protection for outdoor use
Handles water with particulate matter up to 50 g/m3

Calpeda 3 HP Submersible Borehole Pump 6SDX 16/3 Price List

No.	Name	Price
1	Calpeda 3 HP Submersible Borehole Pump 6SDX 16/3 Price	Contact us

Brand	Calpeda
Applications	Garden irrigation, Water Supply Connections, Water supply systems
Power (kW)	2.2
Power (HP)	3
Maximum Flow Rate (L/min)	383
Maximum Delivery Head (m)	32
