Calpeda 3 HP Submersible Borehole Pump 4SDX 3/33C Specifications
This pump operates with a single-phase voltage of 230V or a three-phase voltage range of 230-400V, making it versatile for different power setups. It delivers a power output of 2.2 kW, equivalent to 3 HP, providing strong performance for various applications. The maximum delivery head this series of Calpeda submersible pumps have reached is 211 meters, allowing the 4SDX 3/33C to lift water efficiently over long distances or heights. It can handle a maximum flow rate of 70 liters per minute, suitable for tasks requiring steady water movement. The pump runs at a speed of 2900 RPM, ensuring reliable operation. It is designed to work with water temperatures up to 35°C and can handle water containing up to 50 grams of sand per cubic meter, making it suitable for use in environments with some debris. The device features a two-pole motor, operates at a frequency of 50 Hz, and has an insulation class rated F for safety and durability. Its IP 68 protection rating guarantees excellent resistance to dust and water ingress, ideal for outdoor or harsh conditions.
| Specification | Value |
| single-phase voltage (V) | 230 |
| three-phase voltage (V) | 230-400 |
| power (kW) | 2.2 |
| power (HP) | 3 |
| Max. delivery head (m) | 211 |
| max. flow rate (l/min) | 70 |
| speed (rpm) | 2900 |
| Liquid temperature | 35 °C |
| Maximum amount of sand in the water | 50 g/m3 |
| number of poles | 2 |
| frequency (Hz) | 50 |
| Insulation class | F |
| Protection | IP 68 |

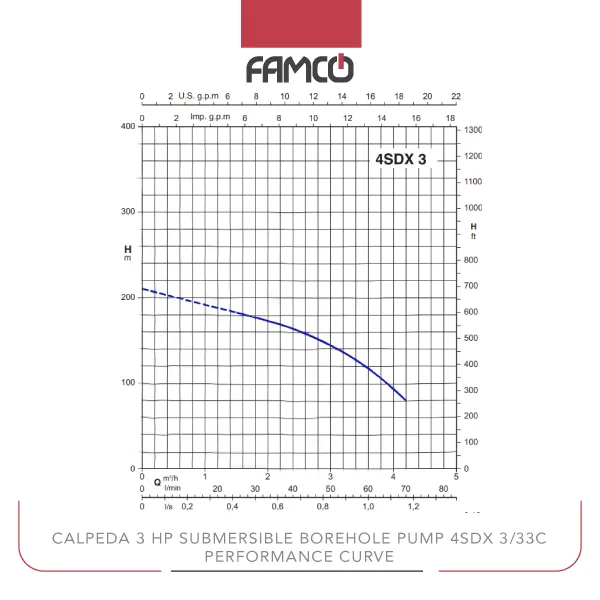

Calpeda 3 HP Submersible Borehole Pump 4SDX 3/33C Performance Data
| m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
| head (m) | 211 | – | – | – | – | 183 | 177 | 171 | 164 | 155 | 145 | 118 | 80 |
Calpeda 3 HP Submersible Borehole Pump 4SDX 3/33C Applications
- Irrigation systems in agriculture
- Water supply for residential buildings
- Industrial water transfer
- Fountain and water feature installations
Calpeda 3 HP Submersible Borehole Pump 4SDX 3/33C Benefits
- High delivery head for lifting water over long distances
- Durable IP 68 protection for outdoor use
- Handles water with some sand content
- Versatile voltage options for different setups
Calpeda 3 HP Submersible Borehole Pump 4SDX 3/33C Price List
| No. | Name | Price |
| 1 | Calpeda 3 HP Submersible Borehole Pump 4SDX 3/33C Price | Contact us |
