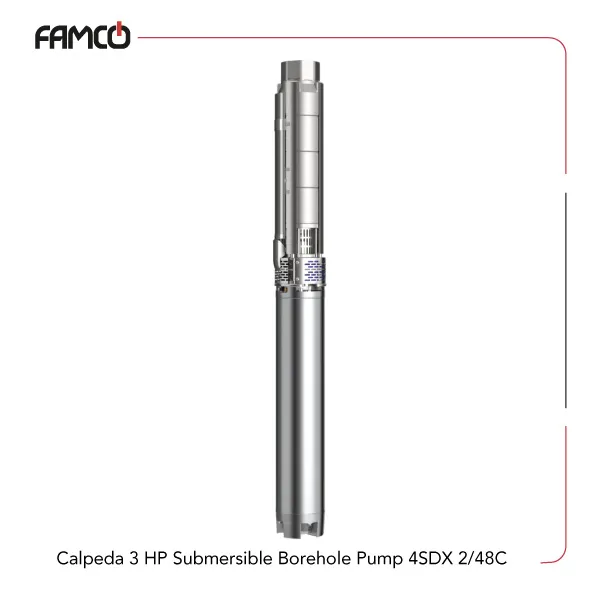

Calpeda 3 HP Submersible Borehole Pump 4SDX 2/48C Specifications
This pump operates efficiently with a single-phase voltage of 230V or a three-phase range of 230-400V. It delivers a power output of 2.2 kW, equivalent to 3 HP, making it suitable for various demanding applications. The pump can generate a maximum head of 280 meters, allowing it to lift water to significant heights. Its maximum flow rate is 40 liters per minute, ensuring steady water movement. The motor runs at 2900 RPM, providing reliable and consistent performance. It is designed to handle water temperatures up to 35°C and can tolerate water with sand content up to 50 grams per cubic meter. The device features a two-pole motor, operates at a frequency of 50 Hz, and has an insulation class rated F for safety and durability. Its IP 68 protection rating guarantees complete protection against dust and water ingress, making this a top-choice among the lineup of Calpeda submersible pumps suitable for outdoor and harsh environments. Overall, this pump combines power, durability, and versatility, ideal for water transfer, irrigation, and industrial applications requiring high performance and resilience.
| Specification | Value |
| single-phase voltage (V) | 230 |
| three-phase voltage (V) | 230-400 |
| power (kW) | 2.2 |
| power (HP) | 3 |
| Max. delivery head (m) | 280 |
| max. flow rate (l/min) | 40 |
| speed (rpm) | 2900 |
| Liquid temperature | 35 °C |
| Maximum amount of sand in the water | 50 g/m3 |
| number of poles | 2 |
| frequency (Hz) | 50 |
| Insulation class | F |
| Protection | IP 68 |

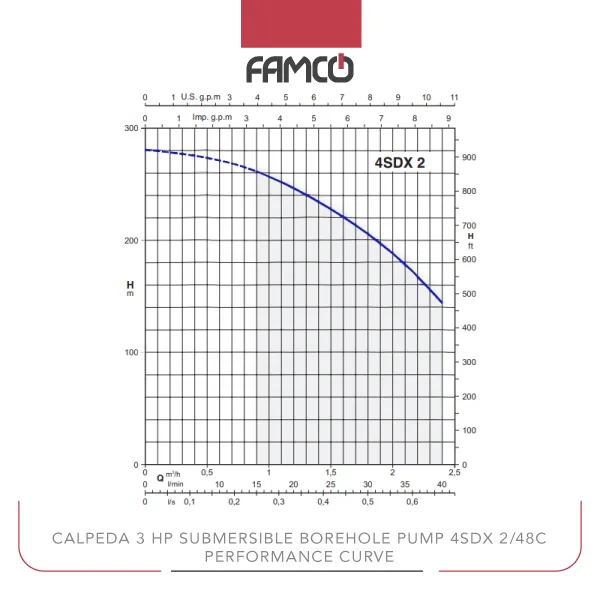

Calpeda 3 HP Submersible Borehole Pump 4SDX 2/48C Performance Data
| m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
| head (m) | 280 | – | – | 261 | 246 | 227 | 205 | 178 | 144 |
Calpeda 3 HP Submersible Borehole Pump 4SDX 2/48C Applications
- Irrigation systems for farms and gardens
- Water supply for residential or commercial buildings
- Industrial water transfer and processing
- Flood control and drainage projects
Calpeda 3 HP Submersible Borehole Pump 4SDX 2/48C Benefits
- High maximum head for lifting water over long distances
- Durable IP 68 protection for outdoor use
- Flexible power options with single and three-phase compatibility
- Reliable performance with high flow rate and robust motor
Calpeda 3 HP Submersible Borehole Pump 4SDX 2/48C Price List
| No. | Name | Price |
| 1 | Calpeda 3 HP Submersible Borehole Pump 4SDX 2/48C Price | Contact us |
There are no reviews yet.
