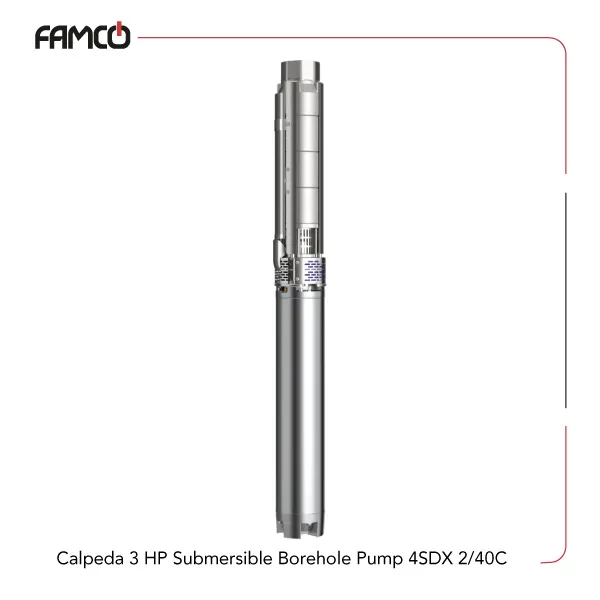

Calpeda 3 HP Submersible Borehole Pump 4SDX 2/40C

2.2 kW (3 HP)

Single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Calpeda Pumps, Calpeda Submersible Pumps

Overview of Calpeda 3 HP Submersible Borehole Pump 4SDX 2/40C

The 4SDX 2/40C is a 3 HP pump that lives up to tasks with a head height of 235 meters and flow rates of 40 l/min. It is suitable for both residential and industrial use, especially where high head and flow are needed. Its robust construction and high protection rating make it ideal for outdoor applications. The pump’s ability to handle water with some sand content adds to its versatility. It is easy to install and operate, providing efficient performance in different settings. Whether for irrigation, water supply, or other fluid transfer needs, this pump offers a solid solution with durable features and high efficiency. With this model you can use it in two models:

Calpeda 3 HP Submersible Borehole Pump 4SDXM 2/40C (single-phase)

Calpeda 3 HP Submersible Borehole Pump 4SDX 2/40C (three-phase)

Calpeda 3 HP Submersible Borehole Pump 4SDX 2/40C Specifications

This pump operates on a single-phase voltage of 230V or a three-phase system ranging from 230V to 400V. It delivers a power output of 2.2 kW, equivalent to 3 HP, making it suitable for various demanding applications. The pump can reach a maximum head of 235 meters, providing strong vertical lift, and can handle a maximum flow rate of 40 liters per minute. It runs at a speed of 2900 RPM, ensuring efficient operation. Designed to work with liquids at a temperature of up to 35°C, this Calpeda submersible pump can tolerate water with a sand content of up to 50 grams per cubic meter, making it versatile for different water qualities. The motor features 2 poles and operates at a frequency of 50 Hz. Its insulation class is F, which offers good thermal resistance, and it has an IP 68 protection rating, making it highly resistant to dust and water ingress, suitable for outdoor or harsh environments.

Calpeda 3 HP Submersible Borehole Pump 4SDX 2/40C

Specification	Value
Single-phase voltage (V)	230
Three-phase voltage (V)	230-400
Power (kW)	2.2
Power (HP)	3
Max. delivery head (m)	235
Max. flow rate (l/min)	40
Speed (rpm)	2900
Liquid temperature	35 °C
Maximum amount of sand in water (g/m3)	50
Number of poles	2
Frequency (Hz)	50
Insulation class	F
Protection	IP 68

Calpeda 3 HP Submersible Borehole Pump 4SDX 2/40C Performance Data

m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4
l/min	0	5	10	15	20	25	30	35	40
head (m)	235	–	–	217	205	190	170	47	119

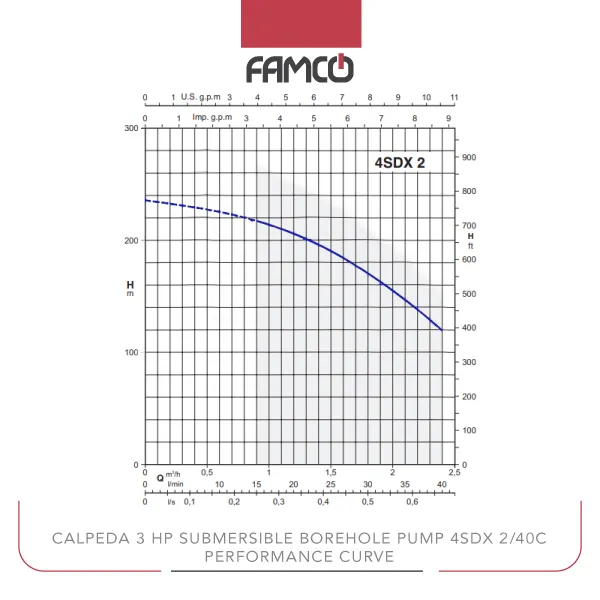

Calpeda 3 HP Submersible Borehole Pump 4SDX 2/40C Performance Curve

Calpeda 3 HP Submersible Borehole Pump 4SDX 2/40C Applications

Irrigation systems in agriculture
Water supply for residential or commercial buildings
Industrial fluid transfer tasks
Flood control and drainage projects

Calpeda 3 HP Submersible Borehole Pump 4SDX 2/40C Benefits

High maximum head for vertical lifting
Durable IP 68 protection rating
Versatile with both single and three-phase options
Handles water with sand content up to 50 g/m3

Calpeda 3 HP Submersible Borehole Pump 4SDX 2/40C Price List

No.	Name	Price
1	Calpeda 3 HP Submersible Borehole Pump 4SDX 2/40C Price	Contact us

Brand	Calpeda
Applications	Deep well water extraction
Power (kW)	2.2
Power (HP)	3
Maximum Flow Rate (L/min)	40
Maximum Delivery Head (m)	235
