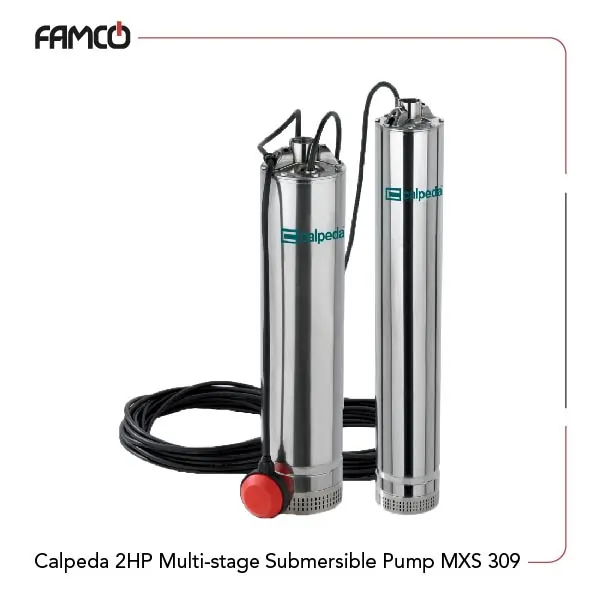

Calpeda 2HP Multi-stage Submersible Pump MXS 309 Specifications
This product is designed for efficient operation in various environments. This Calpeda submersible pump can handle liquid temperatures up to 35° C and has a minimum immersion depth of 100 mm, with a maximum immersion depth of 20 m when using the appropriate cable length. The product’s motor operates at a frequency of 50 Hz and has a rotation speed of approximately 2900 rpm. It is available in both single-phase (230 V) and three-phase (230-400 V) configurations. The insulation class is rated as F to reach reliable performance under various conditions. This powerful Calpeda product has an IP X8 protection class, which is suitable for continuous immersion in water. This unit features triple impregnation technology for humidity-proof dry winding to enhance durability and longevity. It is equipped with 8 impellers made from PPO-GF20 (Noryl) and a shaft constructed from chrome-nickel steel (AISI 304). The mechanical seals are made from high-quality materials to give the product a market advantage with effective sealing and lubrication.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 8 | |
| Power (kW) | 1.5 | |
| Power (HP) | 2 | |
| Head (m) | 35-100 | |
Calpeda 2HP Multi-stage Submersible Pump MXS 309 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbon, Silicon Carbide, NBR
- Seal lubrication oil: for food machinery and pharmaceutical use Oil
Calpeda 2HP Multi-stage Submersible Pump MXS 309 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MXS 309 | G 1 1/4 | 768 | 7 | 133 | 19.3 |
| MXSM 309 | G 1 1/4 | 768 | 7 | 133 | 20.9 |

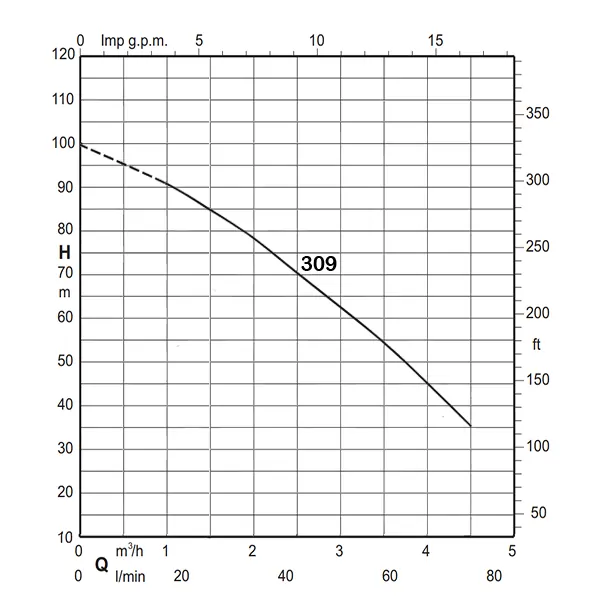

Calpeda 2HP Multi-stage Submersible Pump MXS 309 Performance Data
| Q= m3 /h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 |
| Q=l/min | 0 | 16.66 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 75 |
| H (m) | 100 | 91 | 85 | 78.5 | 70.5 | 62.5 | 54.4 | 45 | 35 |
Calpeda 2HP Multi-stage Submersible Pump MXS 309 Applications
- Industrial liquid transfer
- Food processing and handling
- Pharmaceutical manufacturing
- Water treatment facilities
Calpeda 2HP Multi-stage Submersible Pump MXS 309 Benefits
- High durability with quality materials
- Efficient operation at various depths
- Suitable for food and pharmaceutical use
- Reliable performance in continuous immersion
Calpeda 2HP Multi-stage Submersible Pump MXS 309 Price List
| No. | Name | Price |
| 1 | Calpeda 2HP Multi-stage Submersible Pump MXS 309 Price | Contact us |
