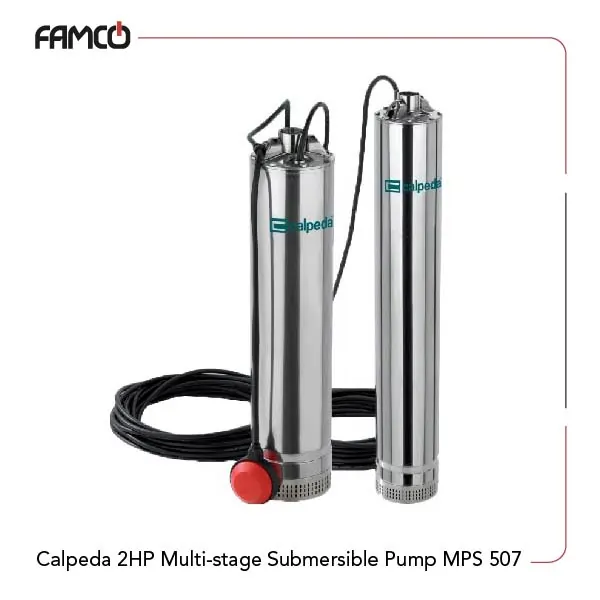

Calpeda 2HP Multi-stage Submersible Pump MPS 507 Specifications
This product is designed for efficient operation in various applications. It handles liquid temperatures up to 35° C which has made it suitable for a range of environments. The minimum immersion depth in this product is 100 mm, while the maximum depth can reach 20 m, provided the right cable length is used. It operates at a frequency of 50 Hz and has a rotation speed of approximately 2900 rpm to guarantee a solid performance. The voltage options in this product are standard and include single-phase at 230 V and three-phase at 230-400 V. The insulation class is rated F to reach maximum durability and safety in practice. This pump easily passes benchmark standards with an IP X8 protection class, indicating it is built for continuous immersion in water. This Calpeda submersible pump features triple impregnation for humidity-proof dry winding, seven impellers made from PPO-GF20 (Noryl), and a powerful shaft made from chrome-nickel steel. The mechanical seals are designed with finest materials giving it reliability.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 7 | |
| Power (kW) | 1.5 | |
| Power (HP) | 2 | |
| Head (m) | 22-78.5 | |
Calpeda 2HP Multi-stage Submersible Pump MPS 507 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbon, Silicon Carbide, NBR
- Seal lubrication oil: for food machinery and pharmaceutical use Oil

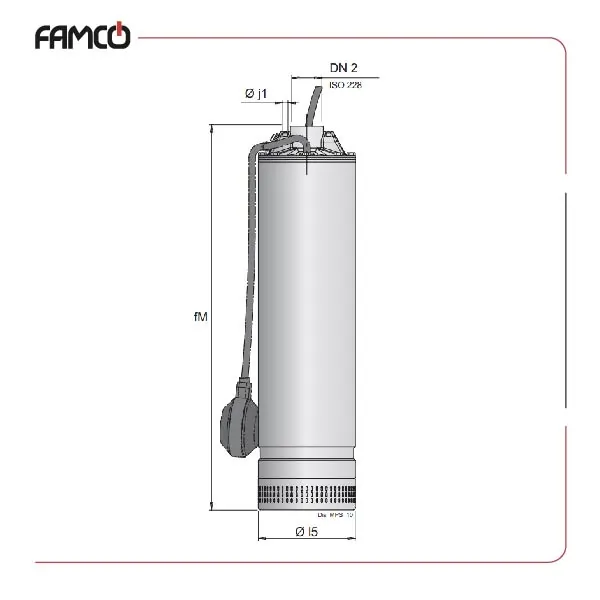

Calpeda 2HP Multi-stage Submersible Pump MPS 507 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MPS 507 | G 1 1/4 | 671 | 7 | 133 | 17.3 |
| MPSM 507 | G 1 1/4 | 671 | 7 | 133 | 20.2 |

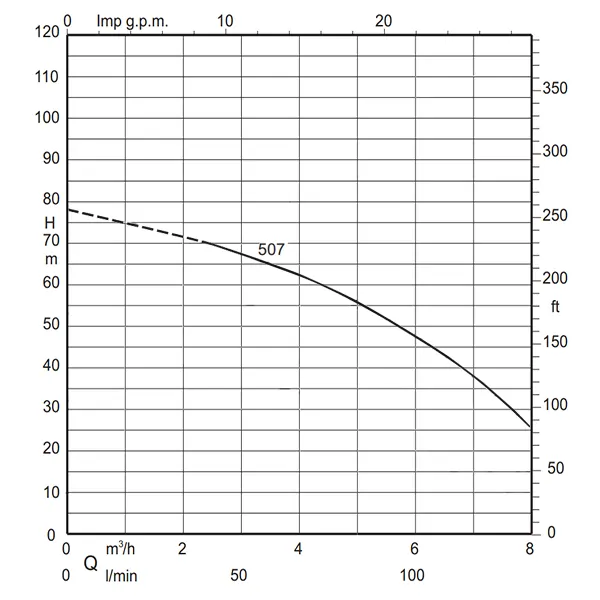

Calpeda 2HP Multi-stage Submersible Pump MPS 507 Performance Data
| Q= m3 /h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7 | 8 |
| Q=l/min | 0 | 16.6 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 75 | 83.3 | 100 | 117 | 133 |
| H (m) | 78.5 | – | – | – | 69.5 | 66.5 | 64 | 61.5 | 58 | 54.5 | 45.5 | 36 | 22 |
Calpeda 2HP Multi-stage Submersible Pump MPS 507 Applications
- Industrial water transfer
- Agricultural irrigation systems
- Commercial water supply
- Pharmaceutical and food processing
Calpeda 2HP Multi-stage Submersible Pump MPS 507 Benefits
- High efficiency with low energy consumption
- Durable construction for long-lasting performance
- Versatile voltage options for different setups
- Reliable operation in submerged conditions
Calpeda 2HP Multi-stage Submersible Pump MPS 507 Price List
| No. | Name | Price |
| 1 | Calpeda 2HP Multi-stage Submersible Pump MPS 507 Price | Contact us |
