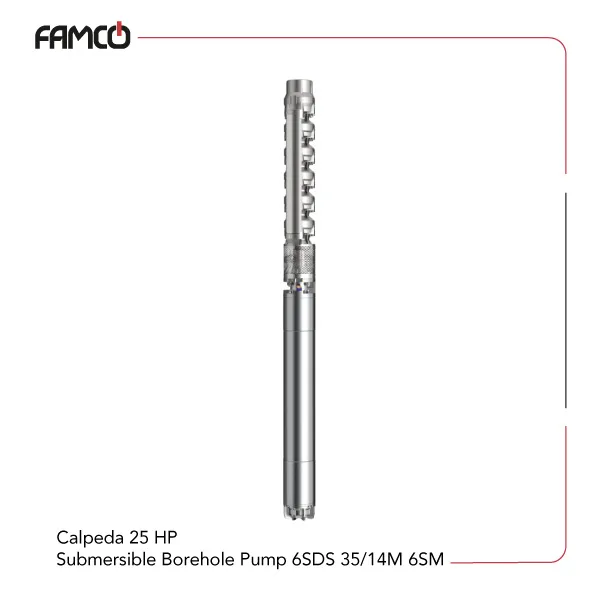

Calpeda 25 HP Submersible Borehole Pump 6SDS 35/14M 6SM Specifications
This industrial pump macthes the 6SM motor flanges and features a powerful 18.5 kW (25 HP) motor with 35 stages, designed for deep and high-volume water transfer. It operates at a frequency of 50 Hz and has a robust protection degree of IP 68, making it suitable for harsh environments. The pump can handle a maximum immersion depth of 150 meters and a flow rate of up to 767 liters per minute. Its maximum head height reaches 189 meters, ensuring efficient water movement over long distances or high elevations. Equipped with a cast iron impeller and a stainless steel motor shaft, the device offers durability and resistance to corrosion. It supports three-phase voltage options of 400V and 400/690V, with a two-pole motor for reliable operation. The pump is capable of handling sand content up to 100 grams per cubic meter, making the 6SDS 35/14M Calpeda submersible pumps a power tool used for various water sources with some debris. Overall, this pump is ideal for industrial, agricultural, or municipal applications requiring high performance and durability in demanding conditions.
| Specification | Value |
| Power (kW) | 18.5 |
| Power (HP) | 25 |
| Number of stages | 35 |
| Max. immersion depth (m) | 150 |
| Max. flow rate (l/min) | 767 |
| Max. head height (m) | 189 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Sand content max. (g/m3) | 100 |
| Three-phase voltage (V) | 400, 400/690 |
| Protection degree | IP 68 |
| Impeller | cast iron |
| Motor shaft | Stainless steel |
Calpeda 25 HP Submersible Borehole Pump 6SDS 35/14M 6SM Performance Data
| m³/h | 0 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 |
| l/min | 0 | 300 | 333 | 367 | 400 | 433 | 467 | 500 | 533 | 567 | 600 | 633 | 667 | 700 | 733 | 767 |
| head (m) | 189 | 176 | 174 | 172 | 169 | 166 | 162 | 158 | 153 | 147 | 141 | 134 | 126 | 117 | 107 | 95.8 |
Calpeda 25 HP Submersible Borehole Pump 6SDS 35/14M 6SM Applications
- Deep well water extraction
- Municipal water supply systems
- Agricultural irrigation
- Industrial water transfer
Calpeda 25 HP Submersible Borehole Pump 6SDS 35/14M 6SM Benefits
- High efficiency with 35 stages for deep water pumping
- Durable cast iron impeller and stainless steel shaft
- Suitable for harsh environments with IP 68 protection
- Handles sand content up to 100 g/m3 for varied water sources
Calpeda 25 HP Submersible Borehole Pump 6SDS 35/14M 6SM Price List
| No. | Name | Price |
| 1 | Calpeda 25 HP Submersible Borehole Pump 6SDS 35/14M 6SM Price | Contact us |
There are no reviews yet.
