Calpeda 25 HP Submersible Borehole Pump 6SDS 35/12A 6SM

18.5 kW (25 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Calpeda Pumps, Calpeda Submersible Pumps

Overview of Calpeda 25 HP Submersible Borehole Pump 6SDS 35/12A 6SM

The 6SDS 35/12A 6SM is a 25 HP Calpeda pump you can use in up to 150-meter deep submerged conditions with head heights reaching 151-meters. It can handle water with small amounts of sand and operates smoothly at 50 Hz. Its high 767 l/min flow rate and delivery head make it perfect for large-scale tasks like irrigation, water supply, and industrial processes. The pump’s robust motor and durable build ensure long-lasting performance in demanding environments. It is suitable for various settings where high efficiency and strong performance are needed, especially in situations involving minor sand contamination or high-volume water movement. This Calpeda pumping unit is compatible with three-phase setups.

Calpeda 25 HP Submersible Borehole Pump 6SDS 35/12A 6SM Specifications

This 6SDS series pump from Calpeda operates efficiently at a maximum liquid temperature of 25°C and can handle water with up to 100 grams of sand per cubic meter. It features a two-pole motor running at approximately 2900 RPM, suitable for 50 Hz power supply. The device supports three-phase voltage options of 400 V and 690 V, with a power output of 18.5 kW or 25 HP. It can generate a maximum delivery head of 167 meters and a flow rate of up to 767 liters per minute, making this series more than ideal for various industrial and water transfer applications. The Calpeda submersible pump‘s design ensures durability and reliable performance even in environments with minor sand contamination, thanks to its robust construction and efficient motor. Its high flow capacity and head make it suitable for large-scale water pumping tasks, irrigation, and other fluid transfer needs in commercial settings.

Specification	Value
Liquid temperature	up to 25 °C
Maximum amount of sand in the water	100 g/m3
Number of poles	2
Frequency (Hz)	50
Speed (rpm)	≈ 2900
Three-phase voltage (V)	400 V; 400/690 V
Power (kW)	18.5
Power (HP)	25
Max. delivery head (m)	167
Max. flow rate (l/min)	767

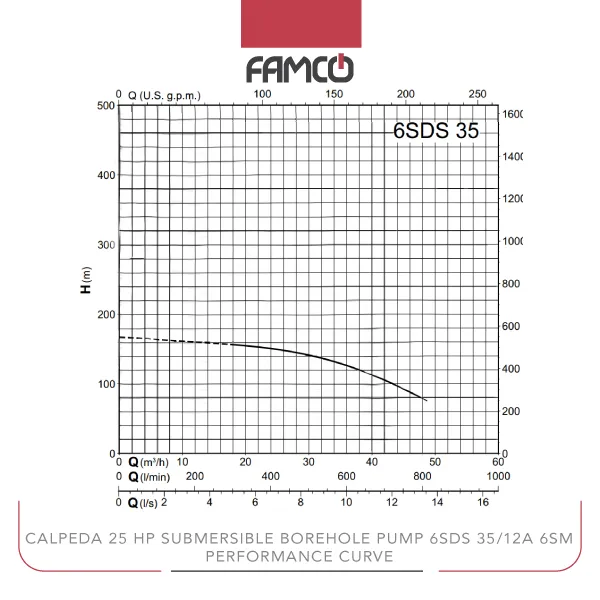

Calpeda 25 HP Submersible Borehole Pump 6SDS 35/12A 6SM Performance Data

m³/h	0	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46
l/min	0	300	333	367	400	433	467	500	533	567	600	633	667	700	733	767
head (m)	167	157	155	153	151	148	145	142	137	132	127	120	113	106	97	88.1

Calpeda 25 HP Submersible Borehole Pump 6SDS 35/12A 6SM Applications

Irrigation systems in agriculture
Industrial water transfer
Municipal water supply
Construction site water management

Calpeda 25 HP Submersible Borehole Pump 6SDS 35/12A 6SM Benefits

High flow rate for large volume transfer
Durable construction for tough environments
Flexible voltage options for different setups
Efficient operation with low maintenance

Calpeda 25 HP Submersible Borehole Pump 6SDS 35/12A 6SM Price List

No.	Name	Price
1	Calpeda 25 HP Submersible Borehole Pump 6SDS 35/12A 6SM Price	Contact us

Brand	Calpeda
Applications	Irrigation, Water Supply Connections, Water Supply Lines
Power (kW)	18.5
Power (HP)	25
Maximum Flow Rate (L/min)	767
Maximum Delivery Head (m)	167
