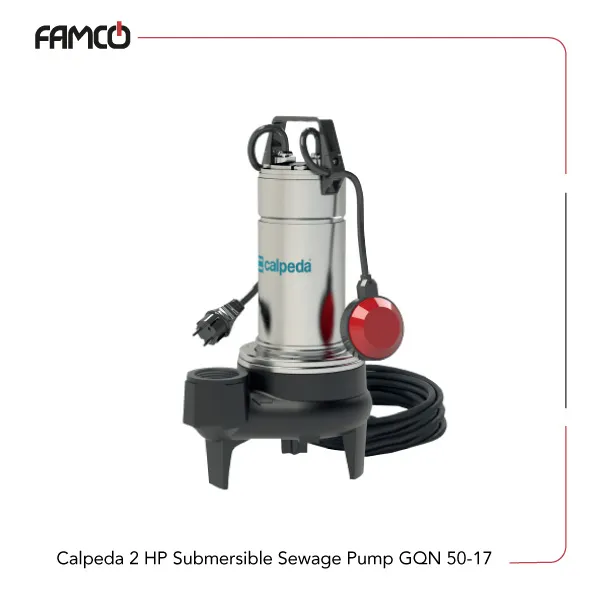

Calpeda 2 HP Submersible Sewage Pump GQN 50-17 Specifications
Many installers choose this model for locations that require a dependable eight hundred liters per minute of movement without complicated maintenance routines. Its build gives it the stability needed for long running hours, which is why teams familiar with Calpeda sewage pumps often turn to the GQN series for routine drainage work. The hydraulic design stays consistent even when the pump faces shifts in water conditions, as long as the pH stays within the six to eleven range. In several projects where steady submerged operation is necessary, the choice of Calpeda submersible pumps has come down to their ability to stay reliable in warm water and limited visibility environments. The insulation class F motor supports continuous duty, letting facilities run the unit for extended periods in pits or collection chambers. Across many sites, this model fits well in demanding layouts thanks to its compact form, strong seals, and flexible power options.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Maximum liquid temperature | 35 °C |
| Immersion depth | 5 m max |
| Minimum immersion depth | 275 mm |
| Continuous duty | with submerged motor |
| pH value | 6-11 |
| Pump casing | Cast iron |
| Impeller | Cast iron |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Ceramic / Carbon / NBR |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Head (m) | 16.4 |
| Flow rate (l/min) | 800 |
| Single-phase weight (kg) | 19 |
| Three-phase weight (kg) | 22.3 |
| Insulation class | F |
| Protection | IP X8 |

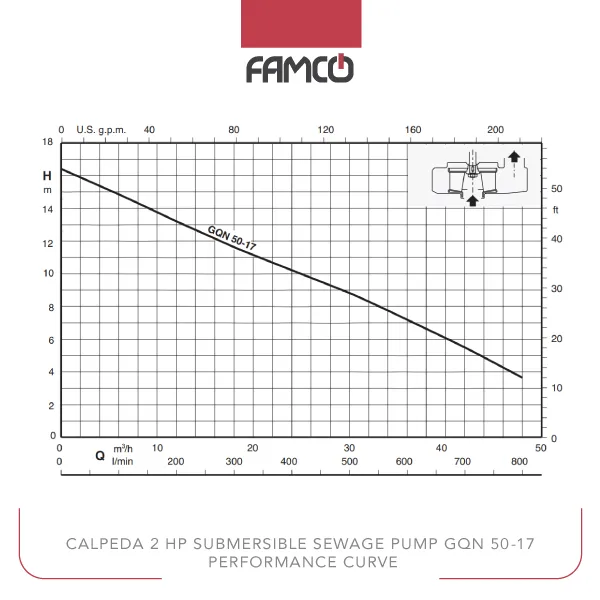

Calpeda 2 HP Submersible Sewage Pump GQN 50-17 Performance Data
| m³/h | 0 | 3 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| l/min | 0 | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| Head (m) | 16.4 | 15.7 | 14.9 | 13.2 | 11.7 | 10.3 | 8.9 | 7.3 | 505 | 3.6 |
Calpeda 2 HP Submersible Sewage Pump GQN 50-17 Applications
- Irrigation systems in agriculture
- Drainage and sump pumping
- Water supply for residential or industrial sites
- Deep well water extraction
Calpeda 2 HP Submersible Sewage Pump GQN 50-17 Benefits
- Durable cast iron construction for long-lasting use
- Flexible power options with single-phase and three-phase compatibility
- High flow rate and head height for efficient water transfer
- Reliable performance with high protection and sealing quality
Calpeda 2 HP Submersible Sewage Pump GQN 50-17 Price List
| No. | Name | Price |
| 1 | Calpeda 2 HP Submersible Sewage Pump GQN 50-17 Price | Contact us |
