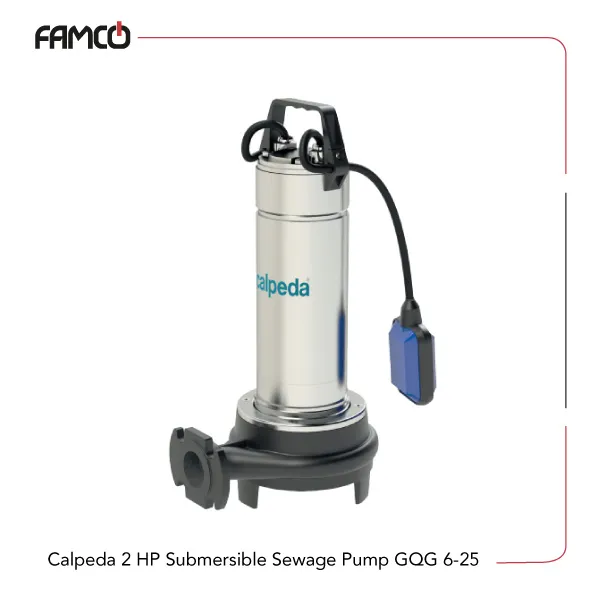

Calpeda 2 HP Submersible Sewage Pump GQG 6-25 Specifications
This pump features a robust cast iron casing and impeller, designed for durability and reliable performance. This Calpeda sewage pump operates with a power of 1.5 kW or 2 HP, suitable for various applications requiring efficient liquid transfer. The pump can handle a maximum liquid temperature of 35 °C and is capable of continuous operation when submerged. It supports both single-phase and three-phase power supplies, with weights of 18.7 kg and 22 kg respectively. The device has a maximum immersion depth of 5 meters and requires a minimum of 300 mm for proper installation. It boasts a head height of 23 meters and a flow rate of 280 liters per minute, making it ideal for tasks demanding high flow and lift. The mechanical seals placed inside this Calpeda submersible pump are made of ceramic, carbon, and NBR, ensuring durability and leak prevention. The pump is part of the GQ series, which includes a grinder feature, enhancing its versatility for various industrial or domestic uses. Its design emphasizes longevity, efficiency, and ease of maintenance, suitable for demanding environments where reliable liquid handling is essential.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Grinder | included in GQ series |
| Maximum liquid temperature | 35 °C |
| Immersion depth | 5 m max |
| Minimum immersion depth | 300 mm |
| Continuous duty | with submerged motor |
| Pump casing | Cast iron |
| Impeller | Cast iron |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Ceramic / Carbon / NBR |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Head (m) | 23 |
| Flow rate (l/min) | 280 |
| Single-phase weight (kg) | 18.7 |
| Three-phase weight (kg) | 22 |

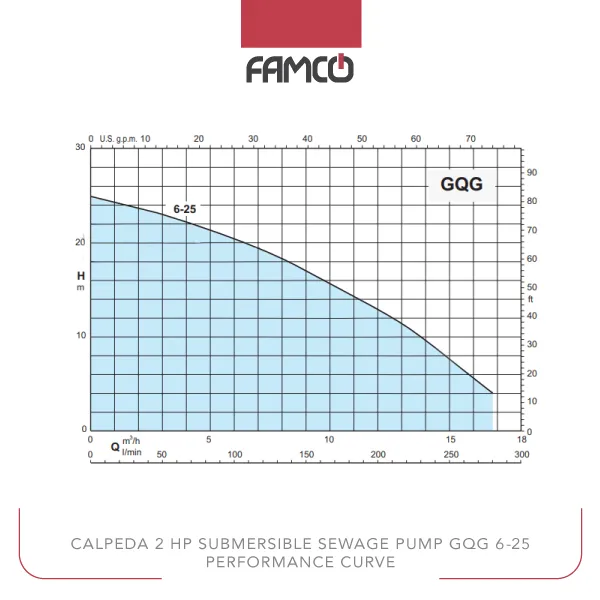

Calpeda 2 HP Submersible Sewage Pump GQG 6-25 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 13.2 | 15 | 16.8 |
| l/min | 0 | 50 | 100 | 150 | 200 | 220 | 250 | 280 |
| Head (m) | 25 | 23 | 20.5 | 17 | 13 | 11 | 7.8 | 4 |
Calpeda 2 HP Submersible Sewage Pump GQG 6-25 Applications
- Wastewater and sewage pumping
- Industrial liquid transfer
- Drainage systems
- Construction site dewatering
Calpeda 2 HP Submersible Sewage Pump GQG 6-25 Benefits
- Durable cast iron construction for long-term use
- High flow rate and head height for efficient performance
- Suitable for continuous operation when submerged
- Flexible power options with single-phase and three-phase compatibility
Calpeda 2 HP Submersible Sewage Pump GQG 6-25 Price List
| No. | Name | Price |
| 1 | Calpeda 2 HP Submersible Sewage Pump GQG 6-25 Price | Contact us |
