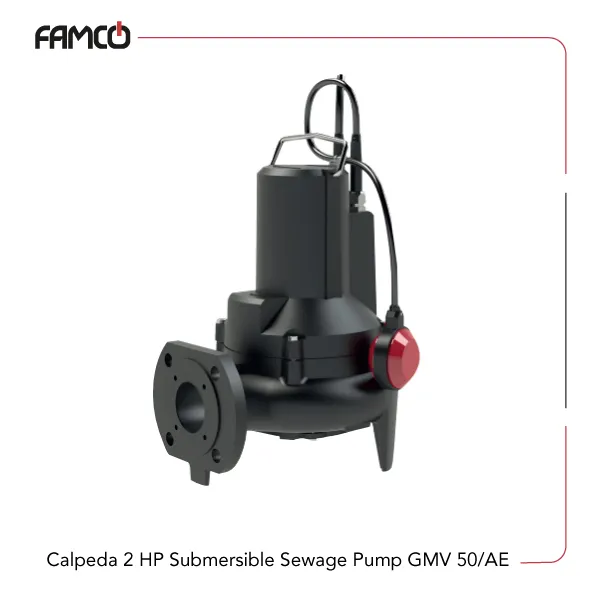

Calpeda 2 HP Submersible Sewage Pump GMV 50/AE Specifications
This pump features a robust cast iron casing and impeller, designed for durability and efficiency. It operates at approximately 2900 rpm and supports both 230V and 400V three-phase power supplies. The insulation class is F, ensuring safety and performance under demanding conditions. With an IP X8 protection rating, it is suitable for submersion up to 10 meters deep. The Calpeda submersible pump you see here is capable of handling liquids with a pH range of 6 to 11 and a maximum temperature of 35°C. It includes high-quality seals: upper mechanical seal made of ceramic, carbon, and NBR, and lower seal of silicon carbide, silicon carbide, and NBR, providing reliable sealing and longevity. The pump delivers a flow rate of 650 liters per minute and a head of 12.9 meters, making this a versatile Calpeda sewage pump for different users. Power consumption is 1.5 kW or 2 HP, suitable for efficient operation in different setups. Overall, this pump combines strength, efficiency, and safety features suitable for industrial or residential use where reliable water movement is needed.
| Specification | Value |
| Number of poles | 2 |
| Three-phase voltage (V) | 230, 400 |
| Speed (rpm) | ≈2900 |
| Insulation class | F |
| Protection | IP X8 |
| Immersion depth | 10 m max |
| Max. liquid pH value | 6-11 |
| Maximum liquid temperature (°C) | 35 |
| Pump casing | Cast iron |
| Impeller | Cast iron |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Silicon carbide / Silicon carbide / NBR |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Head (m) | 12.9 |
| Flow rate (l/min) | 650 |
Calpeda 2 HP Submersible Sewage Pump GMV 50/AE Performance Curve
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 35 | 39 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 583 | 650 |
| H metres | 12.9 | 11.5 | 10 | 8.5 | 6.5 | 4.3 | 2.5 | 1 |
Calpeda 2 HP Submersible Sewage Pump GMV 50/AE Applications
- Water transfer in industrial facilities
- Irrigation systems for agriculture
- Drainage and flood control
- Water supply for residential buildings
Calpeda 2 HP Submersible Sewage Pump GMV 50/AE Benefits
- Durable cast iron construction for long-lasting use
- High efficiency with a flow rate of 650 l/min
- Suitable for submersion up to 10 meters deep
- Reliable seals prevent leaks and extend lifespan
Calpeda 2 HP Submersible Sewage Pump GMV 50/AE Price List
| No. | Name | Price |
| 1 | Calpeda 2 HP Submersible Sewage Pump GMV 50/AE Price | Contact us |
