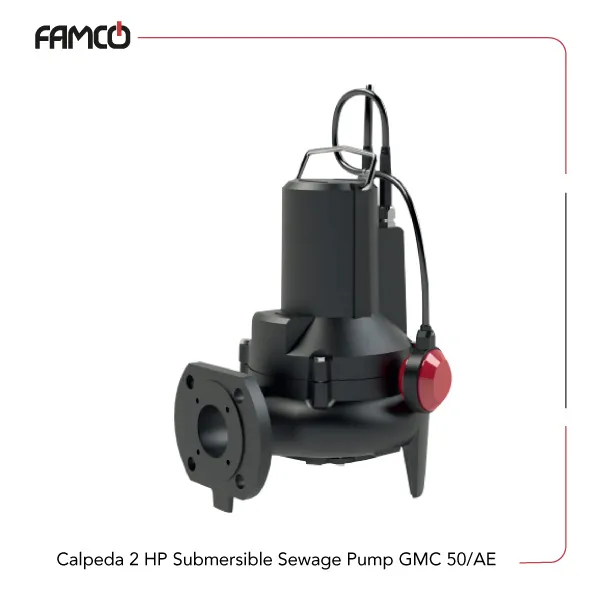

Calpeda 2 HP Submersible Sewage Pump GMC 50/AE Specifications
This pump features a robust cast iron casing and impeller, designed for durability and efficient operation. It operates at approximately 2900 rpm and supports both three-phase and single-phase power supplies, with voltages of 230, 400 V. The device has an insulation class F, ensuring safety and performance under demanding conditions. Its protection rating is IP X8, making it suitable for submersion up to 10 meters deep. The pump can handle liquids with a pH range of 6 to 11 and a maximum temperature of 35°C, making it versatile for various applications. Equipped with double mechanical sealing, this Calpeda submersible pump’s are made of ceramic, carbon, and NBR on the upper side, while the lower seals are silicon carbide and NBR, providing reliable sealing and longevity. With a power output of 1.5 kW (2 HP), the presented Calpeda sewage pump delivers a head of 17.3 meters and a flow rate of 800 liters per minute, making it ideal for water transfer, irrigation, and industrial processes requiring high efficiency and durability.
| Specification | Value |
| Number of poles | 2 |
| Three-phase voltage (V) | 230, 400 |
| Single-phase voltage (V) | 400 |
| Speed (rpm) | ≈2900 |
| Insulation class | F |
| Protection | IP X8 |
| Immersion depth | 10 m max |
| Max. liquid pH value | 6-11 |
| Maximum liquid temperature (°C) | 35 |
| Pump casing | Cast iron |
| Impeller | Cast iron |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Silicon carbide / Silicon carbide / NBR |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Head (m) | 17.3 |
| Flow rate (l/min) | 800 |
Calpeda 2 HP Submersible Sewage Pump GMC 50/AE Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| H metres | 17.3 | 14.5 | 12.5 | 11 | 9 | 7.5 | 5.5 | 3 | 1 |
Calpeda 2 HP Submersible Sewage Pump GMC 50/AE Applications
- Water transfer in industrial settings
- Irrigation systems for agriculture
- Flood control and drainage
- Cooling systems in factories
Calpeda 2 HP Submersible Sewage Pump GMC 50/AE Benefits
- Durable cast iron construction
- High flow rate of 800 l/min
- Supports multiple power options
- Suitable for submersion up to 10 meters
Calpeda 2 HP Submersible Sewage Pump GMC 50/AE Price List
| No. | Name | Price |
| 1 | Calpeda 2 HP Submersible Sewage Pump GMC 50/AE Price | Contact us |
