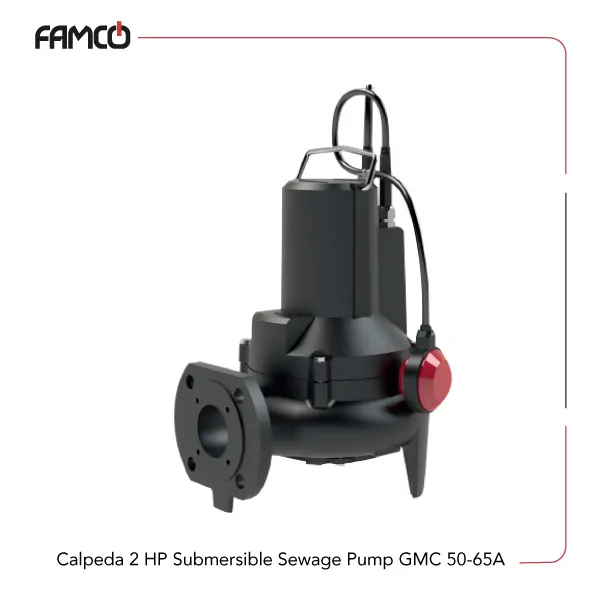

Calpeda 2 HP Submersible Sewage Pump GMC 50-65A Specifications
In wastewater management, efficiency and durability go hand in hand. The Calpeda 2 HP Submersible Sewage Pump GMC 50-65A is designed to handle demanding sewage tasks while maintaining steady performance. Its cast iron body and impeller protect the pump against wear, providing a longer service life even in harsh environments. While it operates on a single-phase 230V power supply, this Calpeda sewage pump excels in managing liquids within a pH range of 6 to 11, which is common in many wastewater scenarios. The advanced sealing system reduces maintenance needs, making it a practical choice for residential or commercial settings. If reliable flow and robust design are priorities, this Calpeda submersible pump is an excellent option for efficient sewage removal.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Speed (rpm) | ≈ 2900 |
| Insulation class | F |
| Protection | IP X8 |
| Immersion depth (m) | 10 |
| Max. liquid pH value | 6-11 |
| Maximum liquid temperature (°C) | 35 |
| Pump casing | Cast iron |
| Impeller | Cast iron |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Silicon carbide / Silicon carbide / NBR |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Head (m) | 17.3 |
| Flow rate (l/min) | 800 |
Calpeda 2 HP Submersible Sewage Pump GMC 50-65A Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| Head (metres) | 17.3 | 14.5 | 12.5 | 11 | 9 | 7.5 | 5.5 | 3 | 1 |
Calpeda 2 HP Submersible Sewage Pump GMC 50-65A Applications
- Drainage of flooded areas
- Water transfer in residential systems
- Irrigation and garden watering
- Industrial water pumping
Calpeda 2 HP Submersible Sewage Pump GMC 50-65A Benefits
- High durability with cast iron construction
- Reliable sealing with ceramic and silicon carbide seals
- Suitable for deep immersion up to 10 meters
- Efficient performance with a flow rate of 800 l/min
Calpeda 2 HP Submersible Sewage Pump GMC 50-65A Price List
| No. | Name | Price |
| 1 | Calpeda 2 HP Submersible Sewage Pump GMC 50-65A Price | Contact us |
