Calpeda 2 HP Submersible Borehole Pump 4SDX 3/25C Specifications
This model is built to reach a delivery head of 160 m while maintaining a flow rate of 70 l/min under a 50 Hz operating frequency and a fixed speed of 2900 rpm. Electrical compatibility includes both 230 V single-phase and 230–400 V three-phase supplies, paired with a 2-pole motor rated at 1.5 kW. Insulation class F and IP 68 protection define its suitability for submerged borehole conditions with liquid temperatures up to 35 °C and sand content limited to 50 g/m³. Within the Calpeda submersible pump range, the 4SDX 3/25C sits in the higher-head segment without increasing flow demand. This Calpeda borehole submersible unit is typically selected where depth is the controlling factor and electrical flexibility is required, while performance limits remain clearly defined by the stated hydraulic and electrical data.
| Specification | Value |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 230-400 |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Max. delivery head (m) | 160 |
| Max. flow rate (l/min) | 70 |
| Speed (rpm) | 2900 |
| Liquid temperature | 35 °C |
| Maximum amount of sand in the water (g/m3) | 50 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection | IP 68 |

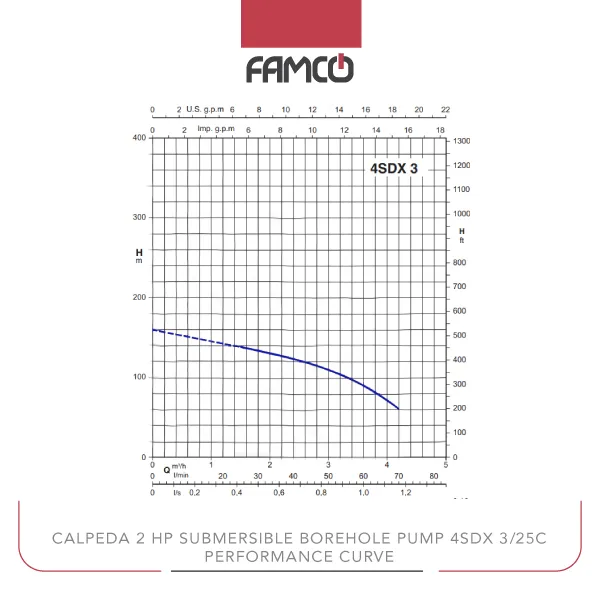

Calpeda 2 HP Submersible Borehole Pump 4SDX 3/25C Performance Data
| m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
| head (m) | 160 | – | – | – | – | 139 | 134 | 129 | 123 | 117 | 110 | 90 | 61 |
Calpeda 2 HP Submersible Borehole Pump 4SDX 3/25C Applications
- Irrigation systems in agriculture
- Water supply for residential buildings
- Industrial water transfer
- Fountain and water feature installations
Calpeda 2 HP Submersible Borehole Pump 4SDX 3/25C Benefits
- High durability with IP 68 protection rating
- Flexible power options for different setups
- Strong performance with 160m head and 70 l/min flow
- Capable of handling water with sand content
Calpeda 2 HP Submersible Borehole Pump 4SDX 3/25C Price List
| No. | Name | Price |
| 1 | Calpeda 2 HP Submersible Borehole Pump 4SDX 3/25C Price | Contact us |
