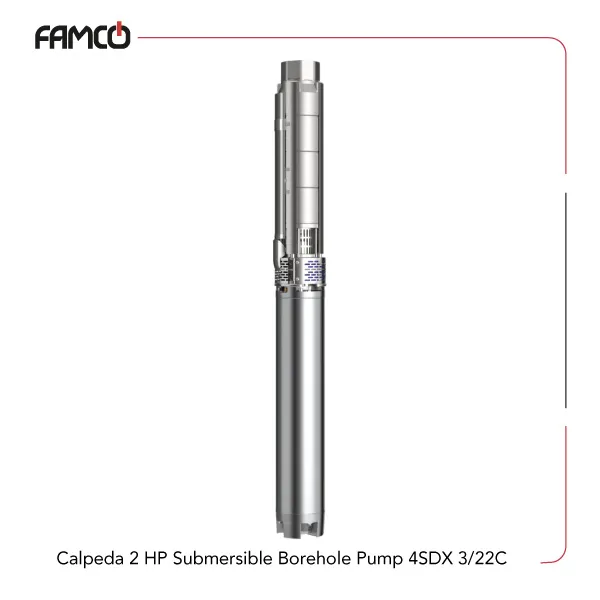

Calpeda 2 HP Submersible Borehole Pump 4SDX 3/22C

1.5 kW (2 HP)

Single- or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Calpeda 2 HP Submersible Borehole Pump 4SDX 3/22C

The Calpeda 2 HP Submersible Borehole Pump 4SDX 3/22C delivers 2 HP (1.5 kW) at 2900 rpm, providing a maximum delivery head of 142 meters with a flow rate of 70 liters per minute. It operates at 50 Hz with a 2-pole motor, insulation class F, and IP 68 protection. The pump is suitable for liquid temperatures up to 35 °C and can handle sand content up to 50 g/m³. This model is available in both single-phase (230 V) and three-phase (230–400 V) versions:

Calpeda 2 HP Submersible Borehole Pump 4SDX 3/22C (Single-phase)

Calpeda 2 HP Submersible Borehole Pump 4SDX 3/22C (Three-phase)

Related Products

Calpeda 2 HP Submersible Borehole Pump 4SDX 3/22C Specifications

This model is designed to deliver 70 l/min while reaching a head of 142 m at a constant speed of 2900 rpm, powered by a 2 HP motor rated at 1.5 kW. It operates at 50 Hz and supports both 230 V single-phase and 230–400 V three-phase power configurations. With insulation class F and IP 68 protection, it is suitable for continuous submerged operation in boreholes where liquid temperatures reach up to 35 °C and sand content does not exceed 50 g/m³. Within the range of Calpeda submersible pumps, the 4SDX 3/22C fits applications that require higher head without increasing flow beyond 70 l/min. This Calpeda submersible pump is engineered around defined electrical and hydraulic limits, making selection straightforward for deep well installations that demand precise performance data rather than vague promises.

Calpeda 2 HP Submersible Borehole Pump 4SDX 3/22C



Specification Value
single-phase voltage (V) 230
three-phase voltage (V) 230-400
power (kW) 1.5
power (HP) 2
Max. delivery head (m) 142
max. flow rate (l/min) 70
speed (rpm) 2900
Liquid temperature 35 °C
Maximum amount of sand in the water 50 g/m3
number of poles 2
frequency (Hz) 50
Insulation class F
Protection IP 68

Calpeda 2 HP Submersible Borehole Pump 4SDX 3/22C Performance Data

m³/h 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3 3.6 4.2
l/min 0 5 10 15 20 25 30 35 40 45 50 60 70
head (m) 142 123 120 115 110 105 98 80 54

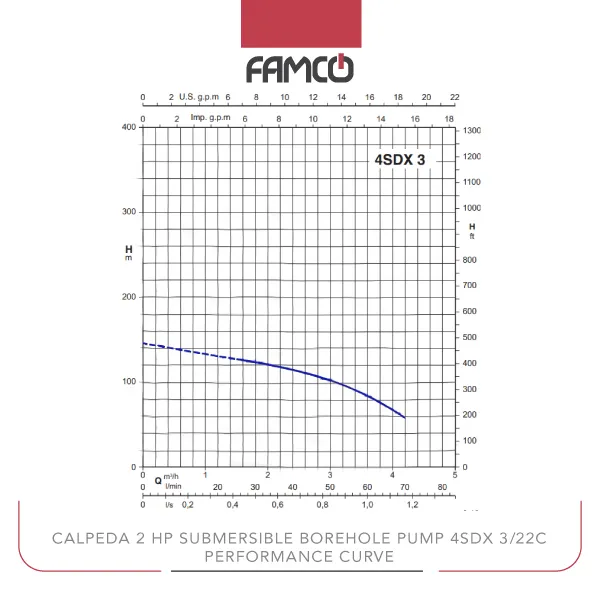

Calpeda 2 HP Submersible Borehole Pump 4SDX 3/22C Performance Curve

Calpeda 2 HP Submersible Borehole Pump 4SDX 3/22C Applications

  • Irrigation systems for farms and gardens
  • Water supply in residential or commercial buildings
  • Industrial water transfer and boosting
  • Fountain and water feature installations



Calpeda 2 HP Submersible Borehole Pump 4SDX 3/22C Benefits

  • High maximum head for effective water delivery
  • Versatile power options for different setups
  • Durable design with IP 68 protection rating
  • Can handle water with some sand content



Calpeda 2 HP Submersible Borehole Pump 4SDX 3/22C Price List

No. Name Price
1 Calpeda 2 HP Submersible Borehole Pump 4SDX 3/22C Price Contact us
