Calpeda 2 HP Submersible Borehole Pump 4SDX 2/33C Specifications
This pump operates efficiently with a single-phase voltage of 230V or a three-phase voltage range of 230-400V. It delivers a power output of 1.1 kW, equivalent to 1.5 HP, making it suitable for various water transfer tasks. The device can generate a maximum head of 196 meters, allowing it to lift water over significant heights, and it has a maximum flow rate of 40 liters per minute, most used for moderate water movement. The pump runs at a speed of 2900 RPM. It is designed to handle water temperatures up to 35°C and can tolerate water containing up to 50 grams of sand per cubic meter, making it suitable for use in environments with some particulate matter. The Calpeda submersible pump features a two-pole motor, operates at a frequency of 50 Hz, and has an insulation class rated F for safety and durability. Its protection class is IP 68, providing excellent resistance to dust and water ingress, suitable for outdoor or harsh conditions. Overall, this pump combines power, durability, and versatility, making it a reliable choice for water transfer, irrigation, and other fluid handling applications.
| Specification | Value |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 230-400 |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Max. delivery head (m) | 196 |
| Max. flow rate (l/min) | 40 |
| Speed (rpm) | 2900 |
| Liquid temperature | 35 °C |
| Maximum amount of sand in water (g/m3) | 50 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection | IP 68 |

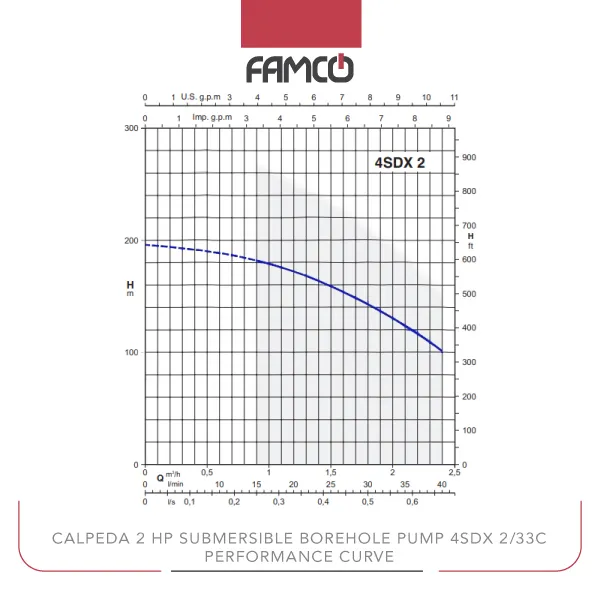

Calpeda 2 HP Submersible Borehole Pump 4SDX 2/33C Performance Data
| m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
| head (m) | 196 | – | – | 182 | 172 | 152 | 143 | 124 | 101 |
Calpeda 2 HP Submersible Borehole Pump 4SDX 2/33C Applications
- Irrigation systems for farms and gardens
- Water supply for residential or industrial use
- Flood control and drainage projects
- Water transfer in construction sites
Calpeda 2 HP Submersible Borehole Pump 4SDX 2/33C Benefits
- High durability with IP 68 protection rating
- Capable of handling water with sand content up to 50 g/m3
- Powerful performance with a maximum head of 196 meters
- Flexible power options with single-phase and three-phase compatibility
Calpeda 2 HP Submersible Borehole Pump 4SDX 2/33C Price List
| No. | Name | Price |
| 1 | Calpeda 2 HP Submersible Borehole Pump 4SDX 2/33C Price | Contact us |
