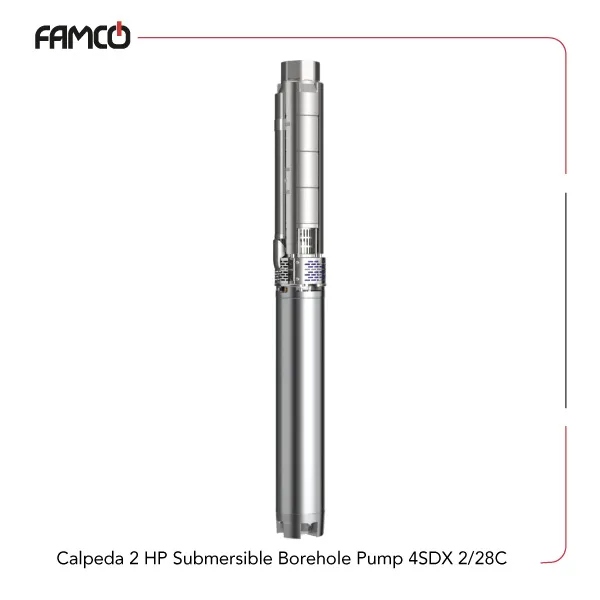

Calpeda 2 HP Submersible Borehole Pump 4SDX 2/28C Specifications
This product features a versatile power setup with options for single-phase at 230V and three-phase ranging from 230V to 400V. It delivers a power output of 1.5 kW, equivalent to 2 HP, making it suitable for various demanding applications. The pump can reach a maximum head of 166 meters, providing strong vertical lift, and it can handle a flow rate of up to 40 liters per minute. Operating at a speed of 2900 rpm, it maintains efficiency across different operational conditions. The Calpeda submersible pump is designed to work with liquids at a temperature of up to 35 °C and can tolerate water containing up to 50 grams of sand per cubic meter, ensuring durability in less clean environments. Its construction includes a two-pole motor with a frequency of 50 Hz, and it is built with an insulation class F for safety and performance. The pump boasts an IP 68 protection rating, making it highly resistant to dust and water ingress, suitable for outdoor or harsh environments. Overall, this product combines power, durability, and versatility, ideal for applications requiring reliable water transfer and lifting capabilities in various settings.
| Specification | Value |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 230-400 |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Max. delivery head (m) | 166 |
| Max. flow rate (l/min) | 40 |
| Speed (rpm) | 2900 |
| Liquid temperature | 35 °C |
| Maximum amount of sand in water (g/m3) | 50 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection | IP 68 |

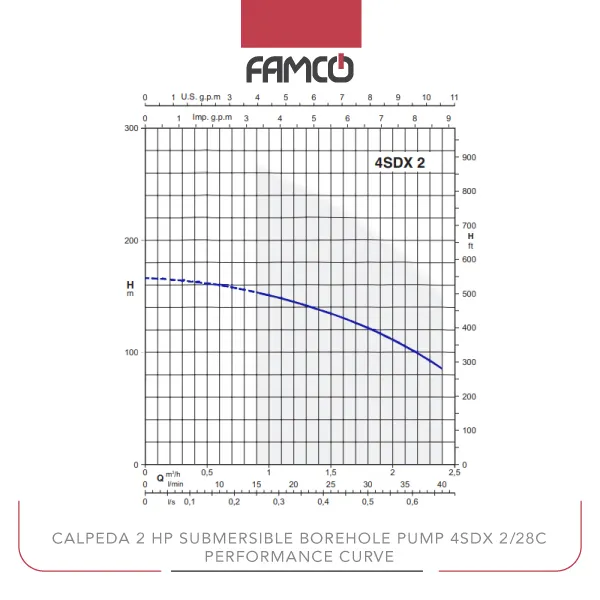

Calpeda 2 HP Submersible Borehole Pump 4SDX 2/28C Performance Data
| m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
| head (m) | 166 | – | – | 153 | 144 | 134 | 121 | 105 | 85 |
Calpeda 2 HP Submersible Borehole Pump 4SDX 2/28C Applications
- Irrigation systems in agriculture
- Industrial water transfer
- Construction site water management
- Flood control and drainage
Calpeda 2 HP Submersible Borehole Pump 4SDX 2/28C Benefits
- High durability with IP 68 protection
- Flexible power options for different setups
- Strong lifting capacity with 166 meters head
- Can handle water with sand up to 50 g/m3
Calpeda 2 HP Submersible Borehole Pump 4SDX 2/28C Price List
| No. | Name | Price |
| 1 | Calpeda 2 HP Submersible Borehole Pump 4SDX 2/28C Price | Contact us |
