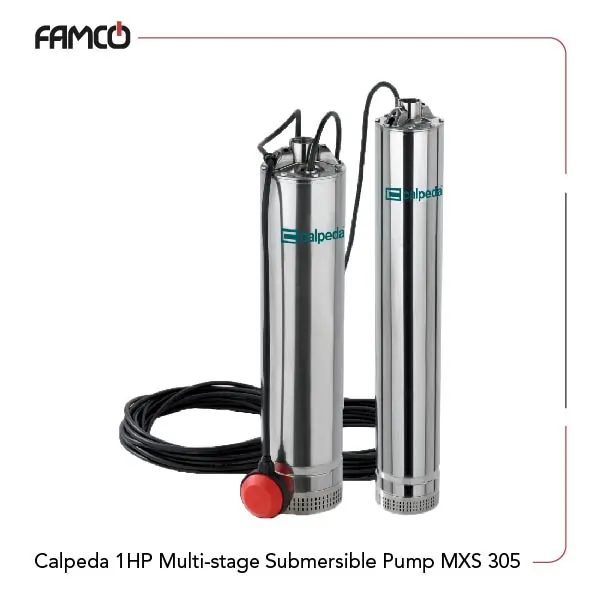

Calpeda 1HP Multi-stage Submersible Pump MXS 305 Specifications
This product is designed for efficient operation in various environments. It handles liquid temperatures up to 35° C while transferring and has a minimum immersion depth of 100 mm based on the different applications. The maximum immersion depth of this Calpeda submersible pump is 20 m, if the suitable cable length is used. The frequency of 50 Hz and a rotation speed of approximately 2900 rpm has given it a smooth run-time without frequent breakdowns. The voltage options include single-phase at 230 V and three-phase at 230-400 V. The insulation class is rated F to maximize durability. This pump features an IP X8 protection class for continuous immersion. The humidity-proof dry winding is achieved through triple impregnation to enhance its reliability. This product is equipped with five impellers made from PPO-GF20 (Noryl) and a shaft constructed from chrome-nickel steel (AISI 304). The mechanical seals are sturdy altogether, with the upper seal made of steatite, carbon, and NBR, while the lower seal uses carbon, silicon carbide, and NBR. The lubrication oil used in this device is the kind suitable for food machinery and pharmaceutical use.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 5 | |
| Power (kW) | 0.45 | |
| Power (HP) | 0.6 | |
| Head (m) | 19-53 | |
Calpeda 1HP Multi-stage Submersible Pump MXS 305 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbon, Silicon Carbide, NBR
- Seal lubrication oil: for food machinery and pharmaceutical use Oil

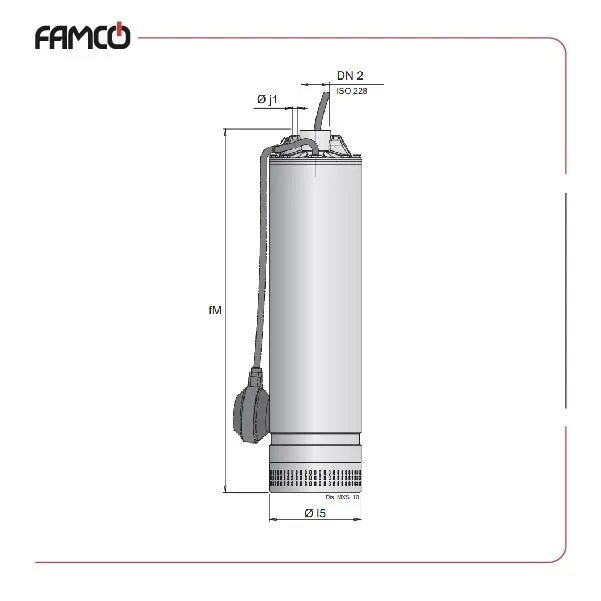

Calpeda 1HP Multi-stage Submersible Pump MXS 305 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MXS 305 | G 1 1/4 | 553 | 7 | 133 | 14 |
| MXSM 305 | G 1 1/4 | 553 | 7 | 133 | 15.8 |

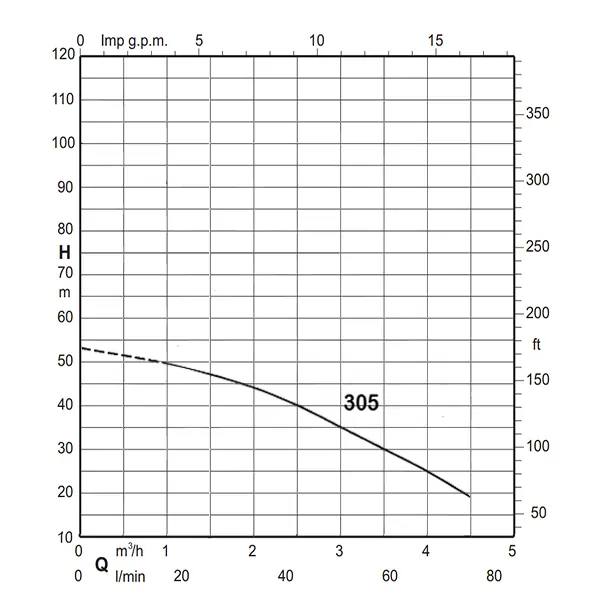

Calpeda 1HP Multi-stage Submersible Pump MXS 305 Data
| Q= m3 /h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 |
| Q=l/min | 0 | 16.66 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 75 |
| H (m) | 53 | 49.5 | 47 | 44 | 40 | 35 | 30 | 25 | 19 |
Calpeda 1HP Multi-stage Submersible Pump MXS 305 Applications
- Food processing and handling
- Pharmaceutical manufacturing
- Water treatment facilities
- Industrial cooling systems
Calpeda 1HP Multi-stage Submersible Pump MXS 305 Benefits
- High durability with IP X8 protection
- Efficient operation at various depths
- Suitable for food and pharmaceutical use
- Robust mechanical seals for enhanced reliability
Calpeda 1HP Multi-stage Submersible Pump MXS 305 Price List
| No. | Name | Price |
| 1 | Calpeda 1HP Multi-stage Submersible Pump MXS 305 Price | Contact us |
