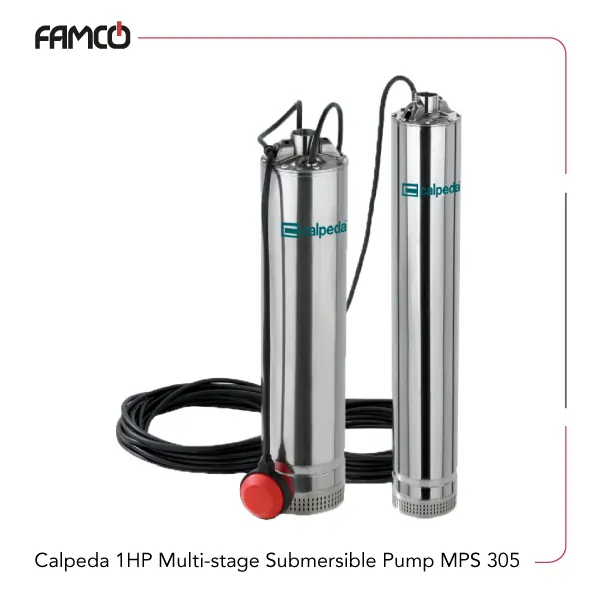

Calpeda 1HP Multi-stage Submersible Pump MPS 305 Specifications
Calpeda 1HP multi-stage submersible pump MPS 305 is designed for water supply from wells, tanks, or reservoirs. It can be immersed up to 20 meters deep. The pump features a robust 2-pole motor available in both single-phase and three-phase options, with an insulation class of F for durability. Its protection rating of IP X8 ensures safety against water ingress during operation. The impeller is made of Noryl, a durable plastic material that enhances performance and longevity. With a power output of 0.75 kW (1 HP), it can deliver a maximum head of 49.5 meters and flow rates up to 4.5 cubic meters per hour or 75 liters per minute. The current draw is 1.9 amps at 400V and 5 amps at 230V, making it suitable for various electrical setups. This Calpeda submersible pump is ideal for domestic, civil, and industrial applications, including garden irrigation, rainwater harvesting, and water transfer systems, providing reliable and efficient water movement in different environments.
| Specification | Value |
| Liquid temperature (° C) | up to 35 |
| Maximum immersion depth (m) | 20 |
| Motor | 2-pole |
| Number of phases | single- and three-phase |
| Insulation class | F |
| Protection | IP X8 |
| Impeller | Noryl |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Maximum delivery head (m) | 49.5 |
| Maximum flow rate (m3/h) | 4.5 |
| Maximum flow rate (L/min) | 75 |
| Current (A) | 1.9 (400V)/ 5 (230V) |
Calpeda 1HP Multi-stage Submersible Pump MPS 305 Applications
- Water supply from wells, tanks, or reservoirs
- Domestic, civil, and industrial water transfer
- Garden irrigation and watering systems
- Rainwater harvesting and storage
Calpeda 1HP Multi-stage Submersible Pump MPS 305 Benefits
- High durability with Noryl impeller and IP X8 protection
- Flexible power options with single- and three-phase motors
- Efficient water transfer with high flow rate and head capacity
- Suitable for various environments and water temperatures
Calpeda 1HP Multi-stage Submersible Pump MPS 305 Price List
| No. | Name | Price |
| 1 | Calpeda 1HP Multi-stage Submersible Pump MPS 305 Price | Contact us |
