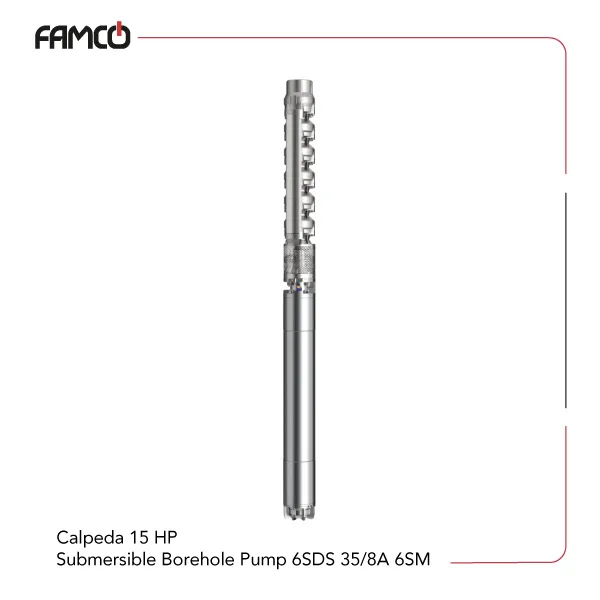

Calpeda 15 HP Submersible Borehole Pump 6SDS 35/8A 6SM Specifications
This pump operates efficiently at a maximum liquid temperature of 25°C and can handle up to 100 grams of sand per cubic meter of water. It features a two-pole motor running at approximately 2900 RPM, suitable for 50 Hz power supply. The device supports three-phase voltages of 400 V and 400/690 V, providing reliable power input. With a power output of 11 kW (15 HP), it delivers a maximum head of 111 meters and a flow rate of 767 liters per minute. The pump is designed for robust performance in demanding environments, making these Calpeda submersible pumps a tested and proven choice for various industrial and water management applications. Its construction ensures durability and efficiency, capable of handling moderate abrasive materials like sand without compromising performance. The motor’s speed and power specifications allow for consistent operation, while the maximum delivery head and flow rate ensure it can meet diverse operational needs. Overall, this pump combines power, durability, and efficiency, making it suitable for tasks requiring high flow and head capabilities in challenging conditions.
| Specification | Value |
| Liquid temperature | up to 25 °C |
| Maximum amount of sand in the water | 100 g/m3 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Speed (rpm) | ≈ 2900 |
| Three-phase voltage (V) | 400 V; 400/690 V |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Max. delivery head (m) | 111 |
| Max. flow rate (l/min) | 767 |

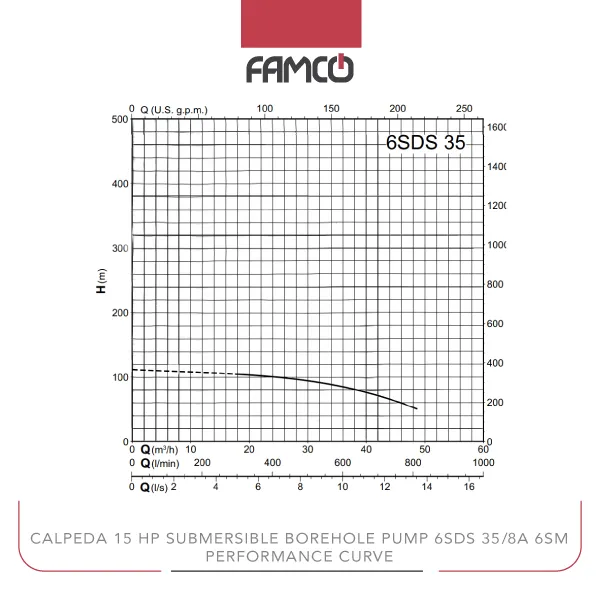

Calpeda 15 HP Submersible Borehole Pump 6SDS 35/8A 6SM Performance Data
| m³/h | 0 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 |
| l/min | 0 | 300 | 333 | 367 | 400 | 433 | 467 | 500 | 533 | 567 | 600 | 633 | 667 | 700 | 733 | 767 |
| head (m) | 111 | 105 | 104 | 102 | 101 | 98.7 | 96.6 | 94.2 | 91.5 | 88.4 | 88.8 | 80.7 | 76.2 | 71.2 | 65.6 | 59.6 |
Calpeda 15 HP Submersible Borehole Pump 6SDS 35/8A 6SM Applications
- Water transfer in industrial settings
- Irrigation systems for agriculture
- Municipal water supply management
- Construction site water removal
Calpeda 15 HP Submersible Borehole Pump 6SDS 35/8A 6SM Benefits
- High flow rate of 767 liters per minute
- Maximum head of 111 meters for deep water applications
- Durable construction for handling sand and debris
- Versatile voltage support for different power setups
Calpeda 15 HP Submersible Borehole Pump 6SDS 35/8A 6SM Price List
| No. | Name | Price |
| 1 | Calpeda 15 HP Submersible Borehole Pump 6SDS 35/8A 6SM Price | Contact us |
There are no reviews yet.
