Calpeda 12.5 HP Submersible Borehole Pump 6SDX 16/15 Specifications
This product features a three-phase power supply with voltages of 400 V and 400/690 V, making it suitable for various industrial applications. It delivers a power output of 9.2 kW, equivalent to 12.5 HP, providing robust performance for demanding tasks. The pump can generate a maximum head of 162 meters, allowing it to lift water efficiently over long distances or high elevations. Its maximum flow rate reaches 383 liters per minute, ensuring a steady and powerful water movement.
Operating at approximately 2900 rpm, the motor at the heart of this Calpeda submersible pump maintains a consistent speed suitable for continuous operation. The device is designed to handle water temperatures up to 30 °C and can tolerate water with up to 50 grams of sand per cubic meter, making it versatile for various water sources. With a protection rating of IP 68, it is highly resistant to dust and water ingress, suitable for submerged or harsh environments. The pump features a two-pole motor and operates at a frequency of 50 Hz, with an impressive maximum immersion depth of 150 meters, ideal for deep well applications or deep water extraction. Its durable construction and high-performance specifications make it suitable for industrial, agricultural, or municipal water management tasks.
| Specification | Value |
| Three-phase voltage | 400 V; 400/690 V |
| Power | 9.2 kW |
| Power (HP) | 12.5 HP |
| Max. delivery head | 162 m |
| Max. flow rate | 383 l/min |
| Speed | ≈ 2900 rpm |
| Liquid temperature | 30 °C |
| Maximum amount of sand in water | 50 g/m3 |
| Number of poles | 2 |
| Frequency | 50 Hz |
| Max. immersion depth | 150 m |
| Protection | IP 68 |

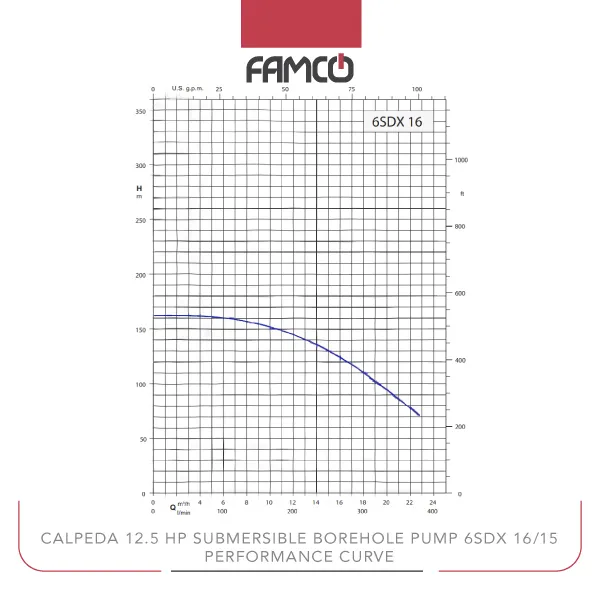

Calpeda 12.5 HP Submersible Borehole Pump 6SDX 16/15 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| head (m) | 162 | 162 | 160 | 155 | 145 | 130 | 110 | 86 | 71 |
Calpeda 12.5 HP Submersible Borehole Pump 6SDX 16/15 Applications
- Deep well water extraction
- Industrial water transfer
- Municipal water supply systems
- Agricultural irrigation
Calpeda 12.5 HP Submersible Borehole Pump 6SDX 16/15 Benefits
- High maximum head for deep water lifting
- Robust construction with IP 68 protection
- Efficient performance with high flow rate
- Suitable for harsh environments with sand tolerance
Calpeda 12.5 HP Submersible Borehole Pump 6SDX 16/15 Price List
| No. | Name | Price |
| 1 | Calpeda 12.5 HP Submersible Borehole Pump 6SDX 16/15 Price | Contact us |
