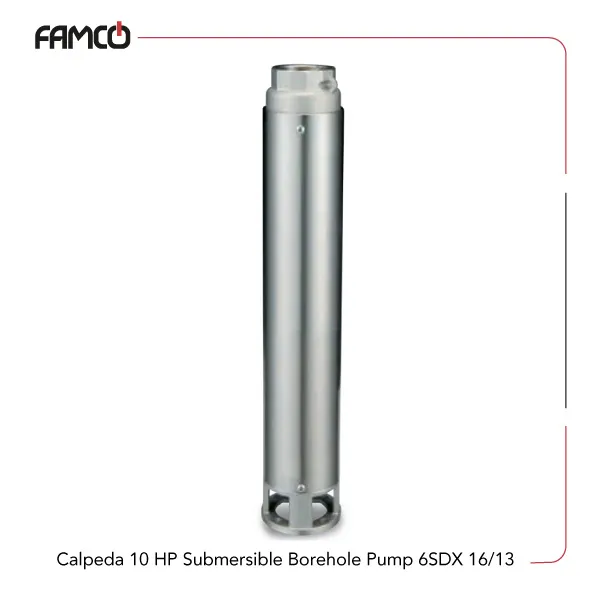

Calpeda 10 HP Submersible Borehole Pump 6SDX 16/13 Specifications
Operating on a three-phase power supply of 400 V or 690 V, the 6SDS 16/13 Calpeda pumps with 7.5 kW (10 HP) of power. It features a maximum delivery head of 141 meters and can handle a flow rate of up to 383 liters per minute, making it suitable for high-demand applications. The pump from the 6SDX series runs at approximately 2900 RPM and is designed to work efficiently with liquids at a temperature of up to 30 °C. It can tolerate water containing up to 50 grams of sand per cubic meter, ensuring durability in less clean environments. Equipped with 2 poles and operating at a frequency of 50 Hz, this Calpeda submersible pump can be submerged to a maximum depth of 150 meters. Its IP 68 protection rating guarantees excellent sealing against dust and water, suitable for demanding outdoor or underwater conditions. Overall, this pump combines power, durability, and versatility, ideal for various industrial and water management tasks.
| Specification | Value |
| Three-phase voltage (V) | 400 V; 400/690 V |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Max. delivery head (m) | 141 |
| Max. flow rate (l/min) | 383 |
| Speed (rpm) | ≈ 2900 |
| Liquid temperature | 30 °C |
| Maximum amount of sand in water (g/m3) | 50 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Max. immersion depth (m) | 150 |
| Protection | IP 68 |
Calpeda 10 HP Submersible Borehole Pump 6SDX 16/13 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| head (m) | 141 | 141 | 139 | 133 | 124 | 112 | 95 | 75 | 60 |
Calpeda 10 HP Submersible Borehole Pump 6SDX 16/13 Applications
- Water transfer in industrial settings
- Irrigation systems for agriculture
- Deep well water extraction
- Flood control and drainage
Calpeda 10 HP Submersible Borehole Pump 6SDX 16/13 Benefits
- High power and flow capacity for demanding tasks
- Deep immersion capability up to 150 meters
- Durable construction with IP 68 protection
- Can handle water with sand content up to 50 g/m3
Calpeda 10 HP Submersible Borehole Pump 6SDX 16/13 Price List
| No. | Name | Price |
| 1 | Calpeda 10 HP Submersible Borehole Pump 6SDX 16/13 Price | Contact us |
