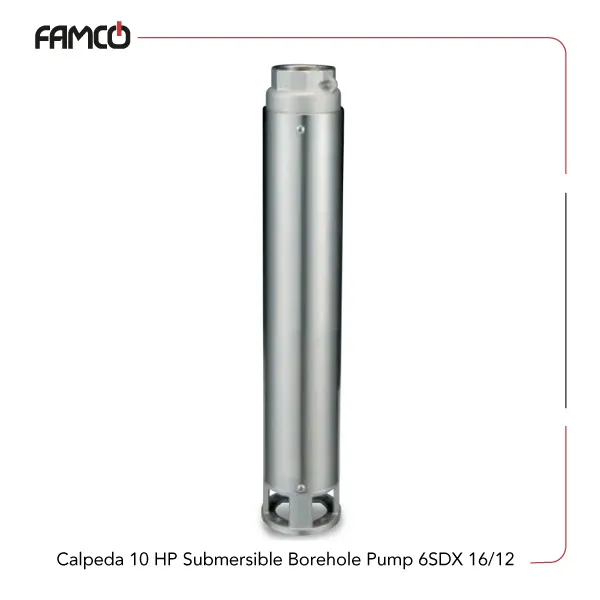

Calpeda 10 HP Submersible Borehole Pump 6SDX 16/12 Specifications
This product features a three-phase voltage of 400 V, with an option for 400/690 V, making it suitable for various industrial power systems. It operates at a power of 7.5 kW, equivalent to 10 HP, providing strong performance for demanding tasks. The pump can deliver a maximum head of 128 meters, making it ideal for applications requiring high lift capabilities. It has a maximum flow rate of 383 liters per minute, ensuring efficient water movement. The motor runs at approximately 2900 RPM, optimized for steady operation. This Calpeda submersible pump is designed to handle water at a temperature of up to 30 °C and can tolerate water with up to 50 grams of sand per cubic meter, making it suitable for slightly contaminated water sources. The pump features 2 poles and operates at a frequency of 50 Hz. It can be submerged up to 150 meters deep, allowing flexible installation options. Its protection class is IP 68, providing excellent resistance against dust and water ingress, suitable for harsh environments and outdoor use.
| Specification | Value |
| Three-phase voltage (V) | 400 V; 400/690 V |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Max. delivery head (m) | 128 |
| Max. flow rate (l/min) | 383 |
| Speed (rpm) | ≈ 2900 |
| Liquid temperature | 30 °C |
| Maximum amount of sand in water (g/m3) | 50 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Max. immersion depth (m) | 150 |
| Protection | IP 68 |
Calpeda 10 HP Submersible Borehole Pump 6SDX 16/12 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| head (m) | 128 | 128 | 127 | 123 | 116 | 105 | 86 | 69 | 57 |
Calpeda 10 HP Submersible Borehole Pump 6SDX 16/12 Applications
- Irrigation systems in agriculture
- Water supply for construction sites
- Flood control and drainage
- Industrial water transfer
Calpeda 10 HP Submersible Borehole Pump 6SDX 16/12 Benefits
- High lifting capacity with a maximum head of 128 meters
- Durable design suitable for harsh environments
- Flexible voltage options for different power systems
- Resistant to sand and water ingress with IP 68 protection
Calpeda 10 HP Submersible Borehole Pump 6SDX 16/12 Price List
| No. | Name | Price |
| 1 | Calpeda 10 HP Submersible Borehole Pump 6SDX 16/12 Price | Contact us |
