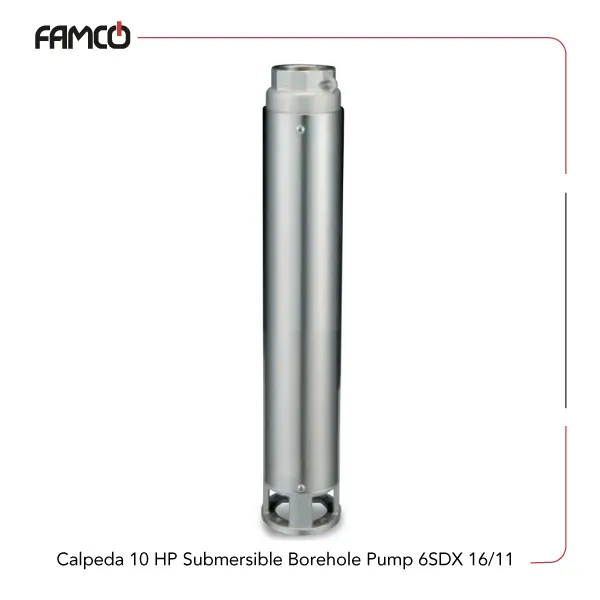

Calpeda 10 HP Submersible Borehole Pump 6SDX 16/11 Specifications
This product features a three-phase voltage of 400 V, with an option for 400/690 V, making it suitable for various industrial power setups. It operates at a power of 7.5 kW, equivalent to 10 HP, providing robust performance for demanding applications. The pump can deliver a maximum head of 119 meters, which allows it to lift water efficiently over long vertical distances. Its maximum flow rate is 383 liters per minute, ensuring a steady supply of water for different needs. The motor runs at approximately 2900 RPM, offering a balance between power and efficiency. Designed to handle water at a temperature of up to 30 °C, it can also manage water with a sand content of up to 50 grams per cubic meter, making it suitable for water sources that contain some debris. The pump features a two-pole motor operating at 50 Hz, with a maximum immersion depth of 150 meters, ideal for deep well applications. Its IP 68 protection rating guarantees excellent durability and resistance to dust and water ingress, suitable for harsh environments and prolonged outdoor use.
| Specification | Value |
| Three-phase voltage (V) | 400 V; 400/690 V |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Max. delivery head (m) | 119 |
| Max. flow rate (l/min) | 383 |
| Speed (rpm) | ≈ 2900 |
| Liquid temperature | 30 °C |
| Maximum amount of sand in water (g/m3) | 50 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Max. immersion depth (m) | 150 |
| Protection | IP 68 |

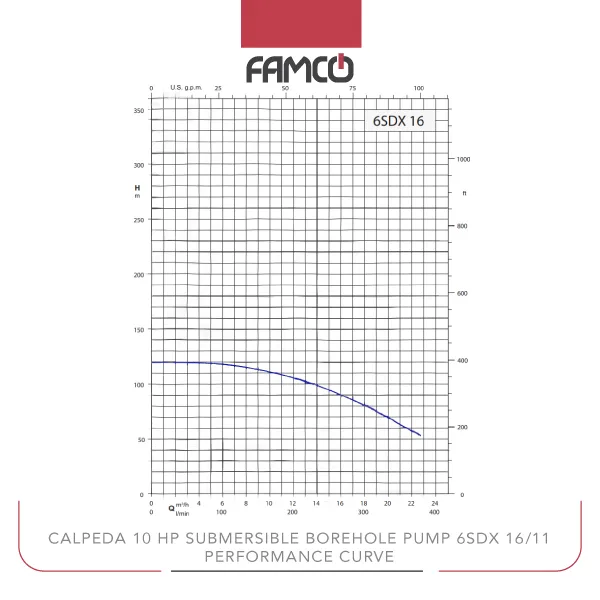

Calpeda 10 HP Submersible Borehole Pump 6SDX 16/11 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| head (m) | 119 | 119 | 118 | 113 | 105 | 94 | 80 | 63 | 52 |
Calpeda 10 HP Submersible Borehole Pump 6SDX 16/11 Applications
- Deep well water extraction
- Irrigation systems
- Municipal water supply
- Industrial water transfer
Calpeda 10 HP Submersible Borehole Pump 6SDX 16/11 Benefits
- High efficiency with 7.5 kW power output
- Capable of operating at great depths up to 150 meters
- Durable IP 68 protection for harsh environments
- Handles water with sand content up to 50 g/m3
Calpeda 10 HP Submersible Borehole Pump 6SDX 16/11 Price List
| No. | Name | Price |
| 1 | Calpeda 10 HP Submersible Borehole Pump 6SDX 16/11 Price | Contact us |
