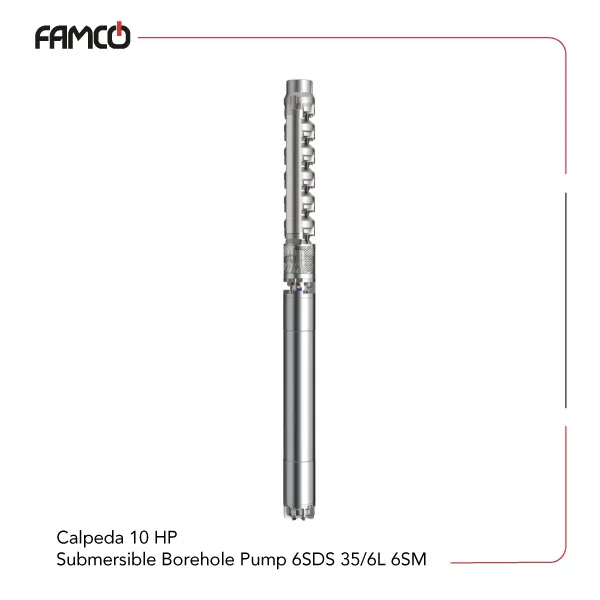

Calpeda 10 HP Submersible Borehole Pump 6SDS 35/6L 6SM Specifications
This industrial pump features a powerful 7.5 kW (10 HP) motor with 35 stages, designed for deep and efficient water transfer. It can operate at a maximum immersion depth of 150 meters, making it suitable for deep well applications. The pump boasts a high flow rate of up to 767 liters per minute and can generate a maximum head height of 77.5 meters, ensuring reliable performance in demanding environments. Equipped with a two-pole motor running at 50 Hz, it supports three-phase voltages of 400V and 690V, so it can work with different power setups. The Calpeda submersible pump is built with a durable cast iron impeller and a stainless steel motor shaft, offering excellent resistance to corrosion and wear. Its protection degree of IP 68 guarantees waterproofing and dust resistance, making it ideal for continuous operation in harsh conditions. The pump can handle sand content up to 100 grams per cubic meter, suitable for water sources with some particulate matter. Overall, this pump combines strength, durability, and efficiency, making it suitable for industrial, agricultural, and municipal water management tasks.
| Specification | Value |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Number of stages | 35 |
| Max. immersion depth (m) | 150 |
| Max. flow rate (l/min) | 767 |
| Max. head height (m) | 77.5 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Sand content max. | 100 g/m3 |
| Three-phase voltage (V) | 400, 400/690 |
| Protection degree | IP 68 |
| Impeller | cast iron |
| Motor shaft | Stainless steel |

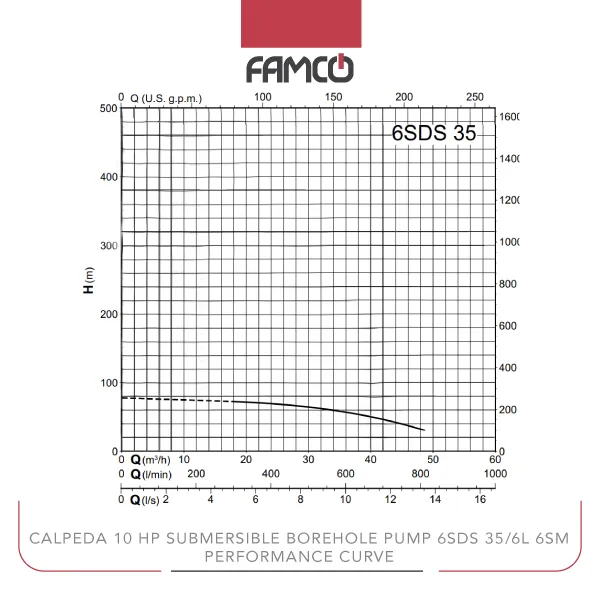

Calpeda 10 HP Submersible Borehole Pump 6SDS 35/6L 6SM Performance Data
| m³/h | 0 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 |
| l/min | 0 | 300 | 333 | 367 | 400 | 433 | 467 | 500 | 533 | 567 | 600 | 633 | 667 | 700 | 733 | 767 |
| head (m) | 77.5 | 72.3 | 71.5 | 70.5 | 69.3 | 67.9 | 66.3 | 64.4 | 62.2 | 59.7 | 56.8 | 53.7 | 50.1 | 46.2 | 41.9 | 37.2 |
Calpeda 10 HP Submersible Borehole Pump 6SDS 35/6L 6SM Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Municipal water supply management
- Industrial water transfer and processing
Calpeda 10 HP Submersible Borehole Pump 6SDS 35/6L 6SM Benefits
- High efficiency with 35 stages for deep water pumping
- Durable construction with cast iron impeller and stainless steel shaft
- Suitable for harsh environments with IP 68 protection
- Supports high flow rates and immersion depths for versatile use
Calpeda 10 HP Submersible Borehole Pump 6SDS 35/6L 6SM Price List
| No. | Name | Price |
| 1 | Calpeda 10 HP Submersible Borehole Pump 6SDS 35/6L 6SM Price | Contact us |
