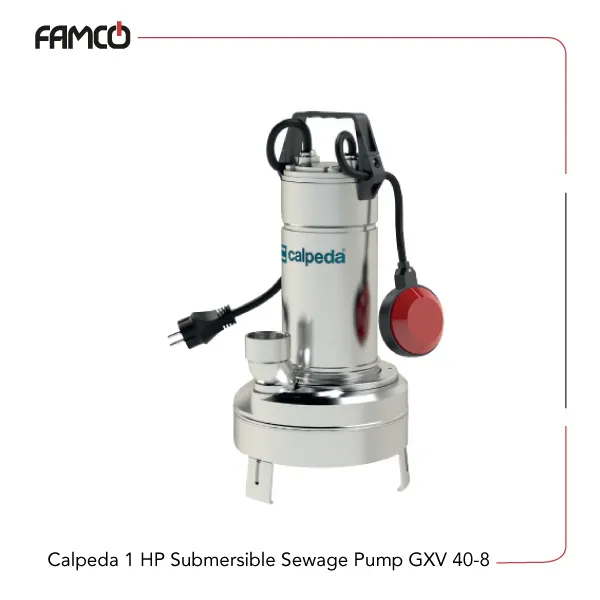

Calpeda 1 HP Submersible Sewage Pump GXV 40-8 Specifications
Many setups that use Calpeda submersible pumps benefit from the GXV 40-8 because it combines strong output with a compact build. It sits comfortably in drainage pits, collection tanks, and small treatment systems while maintaining a consistent 8 meter head. Within the group of Calpeda sewage pumps, this model is known for its corrosion resistant chrome nickel structure, which helps it perform reliably in damp or mildly aggressive environments. The thermal performance of its class F insulation and the stability of its dual mechanical seals give it the resilience needed for frequent cycling or extended run times. Installers often choose it when upgrading older equipment since its weight and electrical flexibility make integration almost painless. It works well in residential sites, agricultural basins, and compact industrial setups where dependable water movement is required.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Speed (rpm) | ≈2900 |
| Insulation class | F |
| Protection | IP X8 |
| Immersion depth | 5 m max |
| Pump casing | Chrome-nickel steel |
| Impeller | Chrome-nickel steel |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Ceramic / Carbon / NBR |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Head (m) | 8 |
| Flow rate (l/min) | 350 |
| Single-phase weight (kg) | 11 |
| Three-phase weight (kg) | 13 |

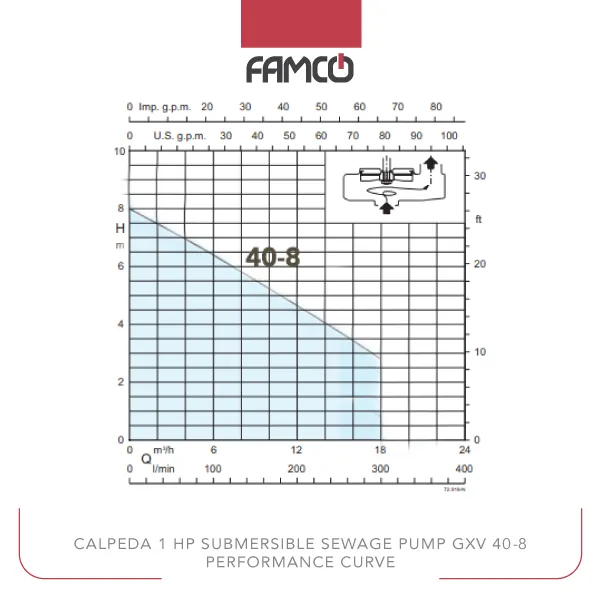

Calpeda 1 HP Submersible Sewage Pump GXV 40-8 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 |
| Head (m) | 7.2 | 6.4 | 5.5 | 4.6 | 3.7 | 2.8 |
Calpeda 1 HP Submersible Sewage Pump GXV 40-8 Applications
- Water supply systems
- Irrigation and agricultural use
- Drainage and flood control
- Industrial water transfer
Calpeda 1 HP Submersible Sewage Pump GXV 40-8 Benefits
- Durable chrome-nickel steel construction
- Supports both single-phase and three-phase power
- High waterproof protection (IP X8)
- Reliable mechanical seals for long-term use
Calpeda 1 HP Submersible Sewage Pump GXV 40-8 Price List
| No. | Name | Price |
| 1 | Calpeda 1 HP Submersible Sewage Pump GXV 40-8 Price | Contact us |
