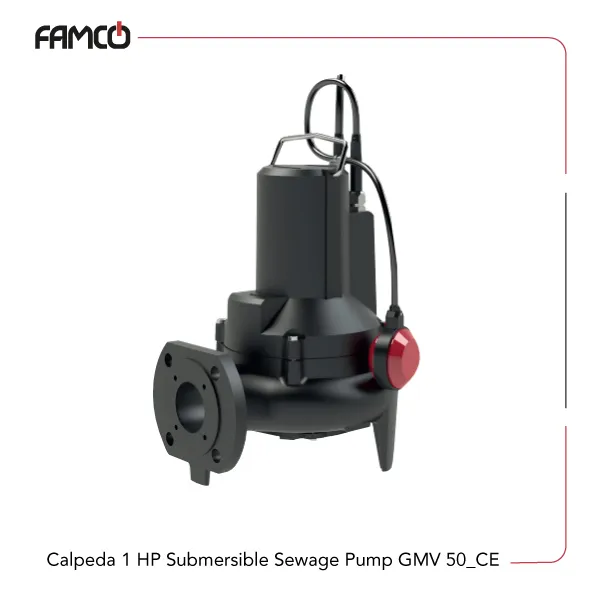

Calpeda 1 HP Submersible Sewage Pump GMV 50/CE Specifications
This pump features a cast iron casing and impeller, designed for durability and reliable performance. It operates at approximately 2900 rpm, suitable for various applications. This Calpeda pump is compatible with different power setups of single-phase and three-phase, with voltages of 230V and 400V. It has an insulation class of F, ensuring safety and efficiency during operation. The Calpeda sewage pump you see here is well-protected with an IP X8 rating, making it suitable for submersion up to 10 meters deep. So, you can reach deeper operation environements with ease of mind. It can handle liquids with a pH range of 6 to 11 and a maximum temperature of 35°C. The mechanical seals are made of ceramic, carbon, and NBR on the upper side, while the lower seals are silicon carbide, providing excellent sealing and longevity. With a power output of 0.75 kW (1 HP), this Calpeda submersible pump delivers a head of 9.2 meters and a flow rate of 650 liters per minute, making it ideal for water transfer, irrigation, and industrial applications. The pump’s design ensures efficient operation in demanding environments, with features that support long-term use and minimal maintenance.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 230, 400 |
| Speed (rpm) | ≈2900 |
| Insulation class | F |
| Protection | IP X8 |
| Immersion depth | 10 m max |
| Max. liquid pH value | 6-11 |
| Maximum liquid temperature (°C) | 35 |
| Pump casing | Cast iron |
| Impeller | Cast iron |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Silicon carbide / Silicon carbide / NBR |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Head (m) | 9.2 |
| Flow rate (l/min) | 650 |

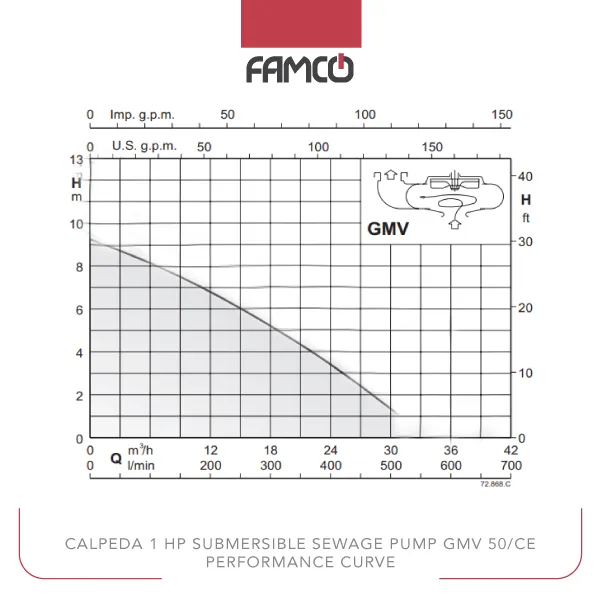

Calpeda 1 HP Submersible Sewage Pump GMV 50/CE Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 |
| Head (m) | 9.2 | 8 | 7 | 5 | 3.5 | 1.5 |
Calpeda 1 HP Submersible Sewage Pump GMV 50/CE Applications
- Water transfer in residential and industrial settings
- Irrigation systems for farms and gardens
- Deep well water extraction
- Water features and fountains
Calpeda 1 HP Submersible Sewage Pump GMV 50/CE Benefits
- Durable cast iron construction for long-lasting use
- Supports both single-phase and three-phase power supplies
- High protection rating suitable for submersion
- Efficient performance with steady flow and head
Calpeda 1 HP Submersible Sewage Pump GMV 50/CE Price List
| No. | Name | Price |
| 1 | Calpeda 1 HP Submersible Sewage Pump GMV 50/CE Price | Contact us |
