Calpeda 1 HP Submersible Sewage Pump GMV 50-65C Specifications
This pump features a cast iron casing and impeller, designed for durability and reliable performance. This Calpeda sewage pump has the advantage of operateing at 2900 rpm. To match different power setups, it supports both single-phase and three-phase power supplies, with voltages of 230V and 400V respectively. The device has an insulation class of F, ensuring safety and efficiency during operation. Its protection rating is IP X8, making it suitable for submersion up to 10 meters deep. The Calpeda submersible pump you see here is capable of handling liquids with a pH range of 6 to 11 and a maximum temperature of 35°C, making it versatile for various applications. The mechanical seals are made of ceramic, carbon, and NBR for upper seals, and silicon carbide for lower seals, providing excellent sealing and longevity. With a power output of 0.75 kW (1 HP), it delivers a maximum head of 12.8 meters and a flow rate of 800 liters per minute, making it suitable for tasks requiring efficient water transfer and circulation. Its design ensures smooth operation and durability in demanding environments, well-mtched for industrial, agricultural, or domestic use where reliable water pumping is essential.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 230, 400 |
| Speed (rpm) | ≈2900 |
| Insulation class | F |
| Protection | IP X8 |
| Immersion depth | 10 m max |
| Max. liquid pH value | 6-11 |
| Maximum liquid temperature (°C) | 35 |
| Pump casing | Cast iron |
| Impeller | Cast iron |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Silicon carbide / Silicon carbide / NBR |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Head (m) | 12.8 |
| Flow rate (l/min) | 800 |

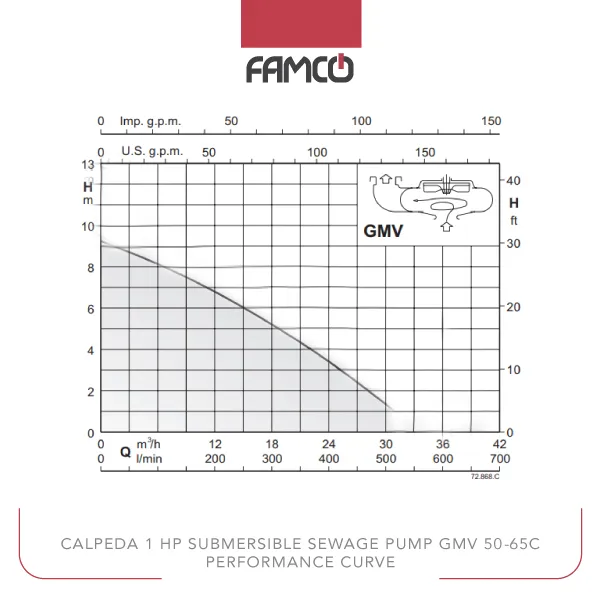

Calpeda 1 HP Submersible Sewage Pump GMV 50-65C Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 |
| Head (m) | 9.2 | 8 | 7 | 5 | 3.5 | 1.35 |
Calpeda 1 HP Submersible Sewage Pump GMV 50-65C Applications
- Irrigation systems in agriculture
- Water transfer in industrial facilities
- Domestic water supply and circulation
- Drainage and flood control
Calpeda 1 HP Submersible Sewage Pump GMV 50-65C Benefits
- High durability with cast iron construction
- Supports deep submersion up to 10 meters
- Efficient performance with 800 l/min flow rate
- Versatile power options for different setups
Calpeda 1 HP Submersible Sewage Pump GMV 50-65C Price List
| No. | Name | Price |
| 1 | Calpeda 1 HP Submersible Sewage Pump GMV 50-65C Price | Contact us |
