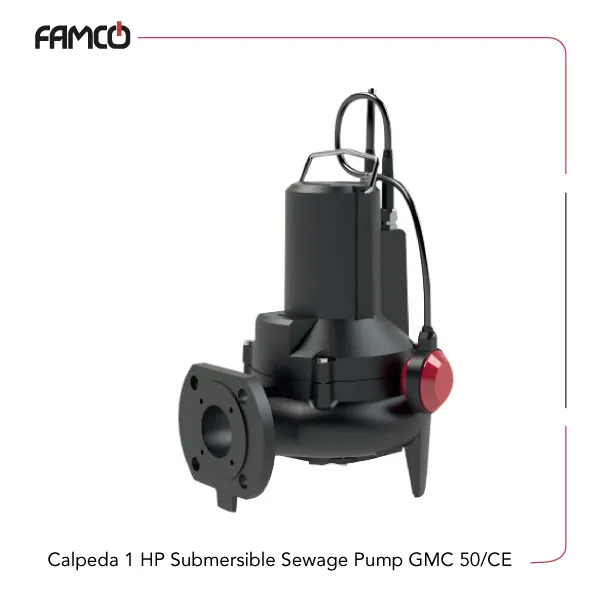

Calpeda 1 HP Submersible Sewage Pump GMC 50/CE

0.75 kW (1 HP)

Single- or Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Calpeda Pumps, Calpeda Sewage Pumps, Calpeda Submersible Pumps

Overview of Calpeda 1 HP Submersible Sewage Pump GMC 50/CE

The Calpeda 1 HP Submersible Sewage Pump GMC 50/CE features a flow rate of 800 liters per minute and a maximum head of 12.8 meters, making it ideal for demanding sewage and wastewater tasks. This pump is built with a cast iron casing and impeller, providing enhanced durability and resistance in harsh conditions. It operates at around 2900 rpm with both single-phase and three-phase 230/400V power options and can be immersed up to 10 meters. The pump’s mechanical seals combine ceramic, carbon, silicon carbide, and NBR materials to ensure long-lasting, reliable sealing for liquids with a pH range of 6 to 11 and temperatures up to 35°C. You can choose this Calpeda pump in two power setup compatible modes:

Calpeda 1 HP Submersible Sewage Pump GMCM 50/CE (Single-phase)

Calpeda 1 HP Submersible Sewage Pump GMC 50/CE (Three-phase)

Calpeda 1 HP Submersible Sewage Pump GMC 50/CE Specifications

For effective sewage management, a pump that balances performance with reliability is essential. This Calpeda 1 HP model delivers a strong 800 liters per minute flow, suitable for various industrial and residential setups. Its cast iron construction stands up to tough conditions, helping to extend service life and reduce maintenance needs. Among Calpeda sewage pumps, the GMC 50/CE is recognized for its ability to handle a broad pH range, which adds to its versatility in different wastewater environments. Users appreciate how Calpeda submersible pumps provide consistent operation while protecting against mechanical wear with advanced sealing technology. Whether for upgrading existing systems or new installations, this pump ensures dependable wastewater removal and smooth operation.

Specification	Value
Number of poles	2
Three-phase voltage (V)	230, 400
Single-phase voltage (V)	230
Speed (rpm)	≈2900
Insulation class	F
Protection	IP X8
Immersion depth	10 m max
Max. liquid pH value	6-11
Maximum liquid temperature (°C)	35
Pump casing	Cast iron
Impeller	Cast iron
Upper mechanical seal	Ceramic / Carbon / NBR
Lower mechanical seal	Silicon carbide / Silicon carbide / NBR
Power (kW)	0.75
Power (HP)	1
Head (m)	12.8
Flow rate (l/min)	800

Calpeda 1 HP Submersible Sewage Pump GMC 50/CE Performance Data

m³/h	0	6	12	18	24	30	36
l/min	0	100	200	300	400	500	600
Head (m)	12.8	9.5	8	6.5	5	3	1

Calpeda 1 HP Submersible Sewage Pump GMC 50/CE Applications

Irrigation systems for agriculture
Industrial water transfer
Drainage and flood control
Water circulation in commercial buildings

Calpeda 1 HP Submersible Sewage Pump GMC 50/CE Benefits

High durability with cast iron construction
Excellent protection with IP X8 rating
Versatile power options for flexibility
Efficient flow rate suitable for various tasks

Calpeda 1 HP Submersible Sewage Pump GMC 50/CE Price List

No.	Name	Price
1	Calpeda 1 HP Submersible Sewage Pump GMC 50/CE Price	Contact us

Brand	Calpeda
Applications	Industrial areas, Sewage management, Wastewater management
Power (kW)	0.75
Power (HP)	1
Maximum Flow Rate (L/min)	800
Maximum Delivery Head (m)	12.8
