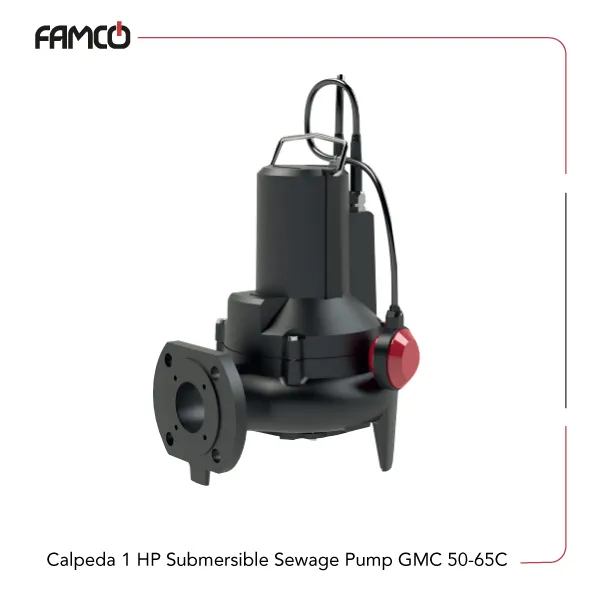

Calpeda 1 HP Submersible Sewage Pump GMC 50-65C Specifications
This Calepda pump from the GMC series features a cast iron casing and impeller, designed for durability and efficiency. It operates at approximately 2900 rpm, suitable for various applications requiring steady flow. The device supports both three-phase and single-phase voltages, with 230V for single-phase and 230/400V for three-phase systems. Its insulation class is F, ensuring safety and performance under demanding conditions. The Calpeda submersible pump is protected with an IP X8 rating, making it suitable for submerged use up to 10 meters deep. It can handle liquids with a pH range of 6 to 11 and a maximum temperature of 35°C, ideal for water transfer and similar liquids. The mechanical seals of this Calpeda sewage pump are made of ceramic, carbon, and NBR for upper seals, and silicon carbide with NBR for lower seals, providing reliable sealing and longevity. It delivers a flow rate of 800 liters per minute and a head height of 12.8 meters, making it effective for various fluid movement tasks. The pump’s force is 0.75 kW or 1 HP, offering a balance between power and efficiency for continuous operation in industrial or residential settings.
| Specification | Value |
| Number of Poles | 2 |
| Three-phase Voltage (V) | 230, 400 |
| Single-phase Voltage (V) | 230 |
| Speed (rpm) | ≈2900 |
| Insulation Class | F |
| Protection | IP X8 |
| Immersion Depth (m) | 10 |
| Max. Liquid pH Value | 6-11 |
| Maximum Liquid Temperature (°C) | 35 |
| Pump Casing | Cast iron |
| Impeller | Cast iron |
| Upper Mechanical Seal | Ceramic / Carbon / NBR |
| Lower Mechanical Seal | Silicon carbide / Silicon carbide / NBR |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Head (m) | 12.8 |
| Flow Rate (l/min) | 800 |

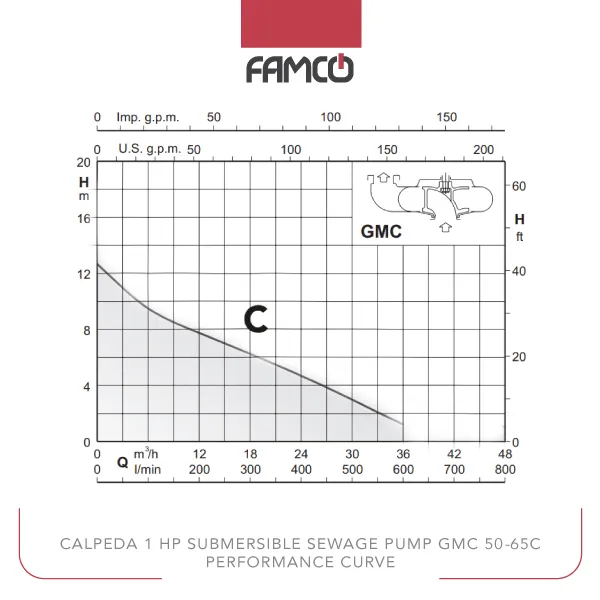

Calpeda 1 HP Submersible Sewage Pump GMC 50-65C Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 |
| Head (m) | 12.8 | 9.5 | 8 | 6.5 | 5 | 3 | 1 |
Calpeda 1 HP Submersible Sewage Pump GMC 50-65C Applications
- Water transfer in industrial plants
- Irrigation systems in agriculture
- Drainage and flood control
- Residential water supply systems
Calpeda 1 HP Submersible Sewage Pump GMC 50-65C Benefits
- Durable cast iron construction for long-lasting use
- High flow rate of 800 liters per minute
- Suitable for submerged operation up to 10 meters
- Reliable mechanical seals for minimal leakage
Calpeda 1 HP Submersible Sewage Pump GMC 50-65C Price List
| No. | Name | Price |
| 1 | Calpeda 1 HP Submersible Sewage Pump GMC 50-65C Price | Contact us |
