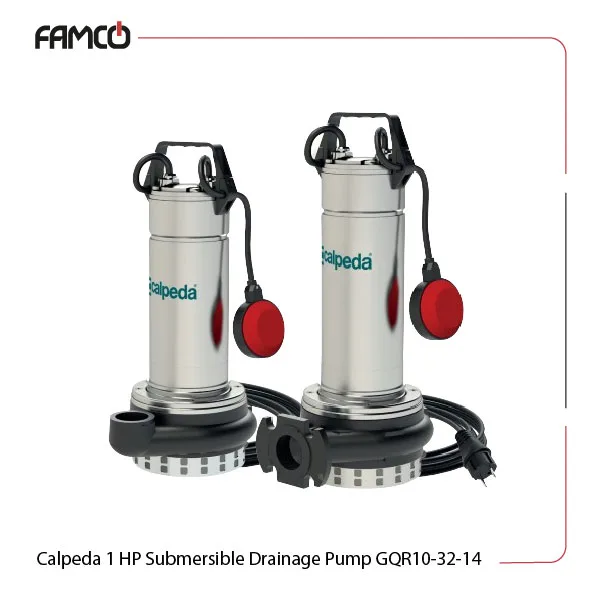

Calpeda 1 HP Submersible Drainage Pump GQR10-32-14 Specifications
This pump is designed for efficient operation in various applications. This Calpeda submersible pump is famous for handling liquid temperatures up to 35° C and has a maximum immersion depth of 5 meters. The minimum immersion depth in this product is 205 mm for different setups. The product’s rotation speed of 2900 rpm operates smoothly and effectively. This pump is available in both three-phase (230-400V) and single-phase (230V) options to enhance compatibility with various electrical systems. This powerful pump features an insulation class of F and an IP X8 protection rating for continuous immersion in water. The pump’s construction includes a sturdy cast iron casing and impeller for added durability. The handle of this product is made from polypropylene, while the shaft is crafted from chrome-nickel steel for added strength. The mechanical seals are designed with ceramic, carbon, and NBR materials, providing reliable performance. This drainage pump is suitable for continuous duty with a submerged motor and has a power output of 0.75 kW (1 HP), with a head range of 3 to 14 meters.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Maximum immersion depth | 5 m | |
| Minimum immersion depth | 205 mm | |
| No. of poles | 2 | |
| Rotation speed (rpm) | 2900 | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | single-impeller | |
| Power (kW) | 0.75 | |
| Power (HP) | 1 | |
| Head (m) | 3-14 | |
Calpeda 1 HP Submersible Drainage Pump GQR10-32-14 Materials
- Pump casing: Cast iron GJL EN 1561
- Impeller: Cast iron GJL EN 1561
- Handle: Polypropylene (with frame made of 1.4301 EN 10088 (AISI 304)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Ceramic / Carbon / NBR
- Lower mechanical seal: Ceramic / Carbon / NBR
- Seal lubrication oil: Oil for food/pharmaceutical machinery
Calpeda 1 HP Submersible Drainage Pump GQR10-32-14 Technical Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 |
| Head (m) | 14 | 13.5 | 12.8 | 10.8 | 9.3 | 7.5 | 5.5 | 3 |
Calpeda 1 HP Submersible Drainage Pump GQR10-32-14 Applications
- Agricultural irrigation systems
- Industrial water supply
- Residential drainage solutions
- Wastwwater management
Calpeda 1 HP Submersible Drainage Pump GQR10-32-14 Benefits
- Durable construction with cast iron components
- High efficiency with a rotation speed of 2900 rpm
- Versatile voltage options for different setups
- IP X8 protection for continuous immersion use
Calpeda 1 HP Submersible Drainage Pump GQR10-32-14 Price List
| No. | Name | Price |
| 1 | Calpeda 1 HP Submersible Drainage Pump GQR10-32-14 Price | Contact us |
