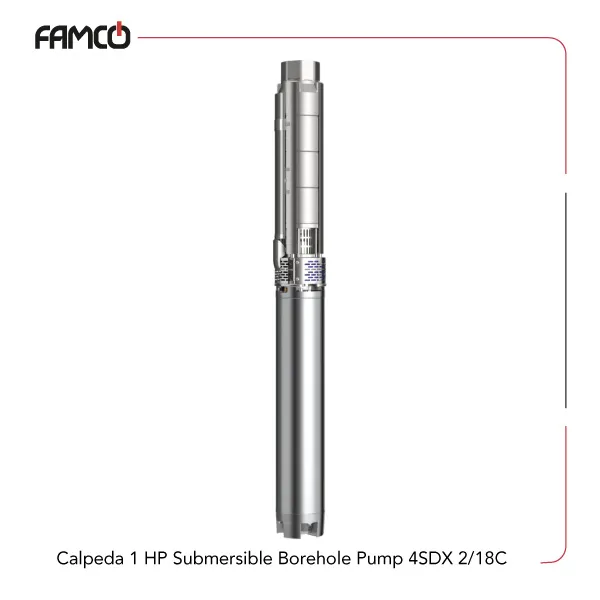

Calpeda 1 HP Submersible Borehole Pump 4SDX 2/18C Specifications
This pump operates on a single-phase voltage of 230V or a three-phase voltage range of 230-400V. It has a power output of 0.75 kW, equivalent to 1 HP, providing reliable performance for various applications. The pump can deliver a maximum head of 104 meters, which allows it to lift water efficiently over long distances or heights. Its maximum flow rate is 40 liters per minute, suitable for tasks requiring steady water movement. The motor runs at a speed of 2900 RPM, ensuring smooth operation. This Calpeda submersible pump is designed to handle water temperatures up to 35°C and can tolerate water with up to 50 grams of sand per cubic meter, making it suitable for use in environments with some debris. The pump features a two-pole motor, operates at a frequency of 50 Hz, and has an insulation class of F, indicating good thermal resistance. Its IP 68 protection rating ensures it is dust-tight and protected against water immersion, ideal for outdoor or harsh conditions.
| Specification | Value |
| single-phase voltage (V) | 230 |
| three-phase voltage (V) | 230-400 |
| power (kW) | 0.75 |
| power (HP) | 1 |
| Max. delivery head (m) | 104 |
| max. flow rate (l/min) | 40 |
| speed (rpm) | 2900 |
| Liquid temperature | 35 °C |
| Maximum amount of sand in the water | 50 g/m3 |
| number of poles | 2 |
| frequency (Hz) | 50 |
| Insulation class | F |
| Protection | IP 68 |

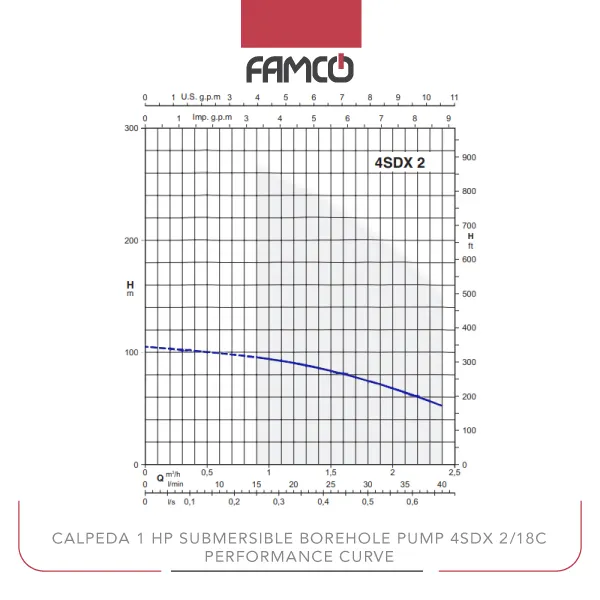

Calpeda 1 HP Submersible Borehole Pump 4SDX 2/18C Performance Data
Calpeda 1 HP Submersible Borehole Pump 4SDX 2/18C Applications
- Irrigation systems in agriculture
- Water supply for residential buildings
- Drainage and flood control
- Industrial water transfer
Calpeda 1 HP Submersible Borehole Pump 4SDX 2/18C Benefits
- High maximum head for lifting water over long distances
- Versatile voltage options for different setups
- Durable IP 68 protection for outdoor use
- Handles water with some debris, up to 50 g/m3
Calpeda 1 HP Submersible Borehole Pump 4SDX 2/18C Price List
| No. | Name | Price |
| 1 | Calpeda 1 HP Submersible Borehole Pump 4SDX 2/18C Price | Contact us |
