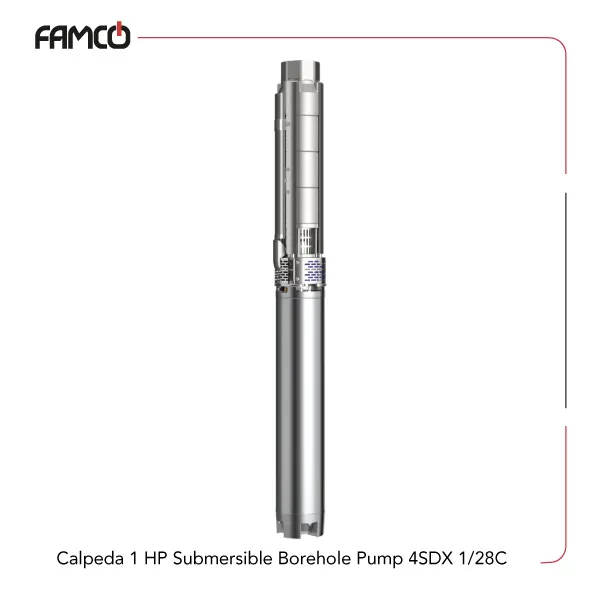

Calpeda 1 HP Submersible Borehole Pump 4SDX 1/28C

0.75 kW (1 HP)

Single- or three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Calpeda Pumps, Calpeda Submersible Pumps

Overview of Calpeda 1 HP Submersible Borehole Pump 4SDX 1/28C

The 1/28C single- or three-phased Calpeda pump from the 4SDX series (suitable for 4-inch boreholes) operates with a 1 HP pumping power output, with head heights of up to 158 meters. With a maximum head of 158 meters and a flow rate of 25 liters per minute, it is suitable for various tasks such as irrigation, water supply, and industrial processes. Its robust construction and high protection rating IP 68 ensure reliable operation even in challenging environments. The pump’s ability to handle water with some sand content and moderate temperatures makes it a practical choice for outdoor and semi-industrial uses. Its efficient motor and steady RPM provide consistent performance, making it a dependable component in water management systems. You can get this pump operating in two modes:

Calpeda 1 HP Submersible Borehole Pump 4SDX 1/28C (single-phase)

Calpeda 1 HP Submersible Borehole Pump 4SDX 1/28C (three-phase)

Calpeda 1 HP Submersible Borehole Pump 4SDX 1/28C Specifications

This pump operates on a single-phase voltage of 230V or a three-phase voltage range of 230-400V, making the 4SDX 1/28C more than suitable for 4-inch or smaller boreholes and wells. It delivers a power output of 0.75 kW, equivalent to 1 HP, providing reliable performance for different applications. The pump can reach a maximum delivery head of 158 meters, allowing it to lift water efficiently over long distances or heights. Its maximum flow rate is 25 liters per minute, suitable for moderate water transfer tasks. The motor at the heart of this Calpeda submersible pump runs at a speed of 2900 RPM, ensuring steady operation. It is designed to handle water temperatures up to 35°C and can tolerate water with up to 50 grams of sand per cubic meter, making it suitable for use in environments with some debris. The pump features a two-pole motor, operates at a frequency of 50 Hz, and has an insulation class rated F for safety and durability. Its IP 68 protection rating guarantees complete protection against dust and water ingress, ideal for outdoor or harsh conditions.

Calpeda 1 HP Submersible Borehole Pump 4SDX 1/28C

Specification	Value
Single-phase voltage (V)	230
Three-phase voltage (V)	230-400
Power (kW)	0.75
Power (HP)	1
Max. delivery head (m)	158
Max. flow rate (l/min)	25
Speed (rpm)	2900
Liquid temperature	35 °C
Maximum amount of sand in water (g/m3)	50
Number of poles	2
Frequency (Hz)	50
Insulation class	F
Protection	IP 68

Calpeda 1 HP Submersible Borehole Pump 4SDX 1/28C Performance Data

m³/h	0	0.3	0.6	0.9	1.2	1.5
l/min	0	5	10	15	20	25
head (m)	158	151	138	111	79	42

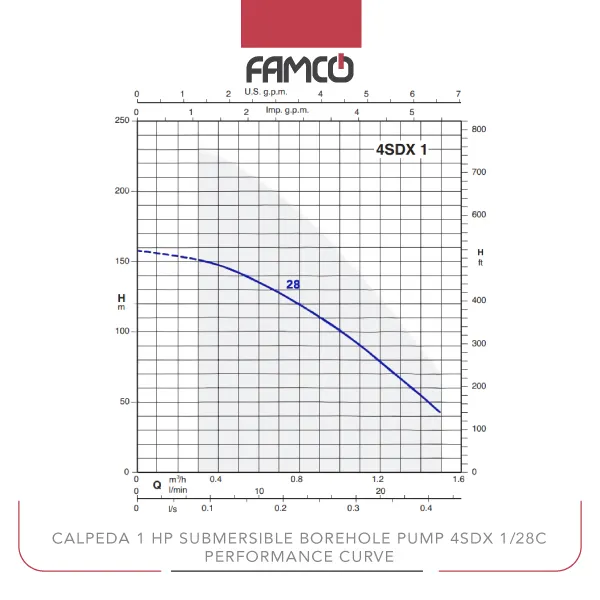

Calpeda 1 HP Submersible Borehole Pump 4SDX 1/28C Perfornance Curve

Calpeda 1 HP Submersible Borehole Pump 4SDX 1/28C Applications

Irrigation systems for agriculture
Water supply in residential or commercial buildings
Industrial water transfer tasks
Fountain and water feature installations

Calpeda 1 HP Submersible Borehole Pump 4SDX 1/28C Benefits

High durability with IP 68 protection rating
Flexible power options for different setups
Capable of handling water with some sand content
Strong performance with a maximum head of 158 meters

Calpeda 1 HP Submersible Borehole Pump 4SDX 1/28C Price List

No.	Name	Price
1	Calpeda 1 HP Submersible Borehole Pump 4SDX 1/28C Price	Contact us

Brand	Calpeda
Applications	Deep well water extraction, Domestic, Civil, Industrial, Water Supply Connections
Power (kW)	0.75
Power (HP)	1
Maximum Flow Rate (L/min)	25
Maximum Delivery Head (m)	158
Number of Poles	2
