Calpeda 1.5HP Multi-stage Submersible Pump MXS 903 Specifications
This product is designed for efficient operation in various applications. It can control liquid temperatures up to 35° C, which is suitable for a range of environments. The minimum immersion depth is 100 mm, while the maximum it can reach is 20 m with the appropriate cable length, for sure. Functioning at a frequency of 50 Hz and a rotation speed of approximately 2900 rpm, this Calpeda submersible pump presents users with reliable performance. The voltage options include single-phase at 230 V and three-phase at 230-400 V, catering to different system setups. The insulation class is rated F for additional protection against electrical hazards. The product offers an IP X8 protection class for continuous immersion in water. Its construction features a humidity-proof dry winding with triple impregnation to maximize the product’s durability. The impeller, made from PPO-GF20 (Noryl), and the shaft crafted from chrome-nickel steel (AISI 304) enhance its longevity. The mechanical seals of this product are designed with high-quality materials for optimal performance.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 8 | |
| Power (kW) | 1.1 | |
| Power (HP) | 1.5 | |
| Head (m) | 16.5-34 | |
Calpeda 1.5HP Multi-stage Submersible Pump MXS 903 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbone, Silicon Carbide, NBR
- Seal lubrication oil: for food machinery and pharmaceutical use oil
Calpeda 1.5HP Multi-stage Submersible Pump MXS 903 Dimensions
| Dimensions (mm) | ||||
| Model | DN2 | fM | j1 | l5 |
| MPS 509 | G 1 1/4 | 553 | 7 | 133 |
| MPSM 509 | G 1 1/4 | 553 | 7 | 133 |

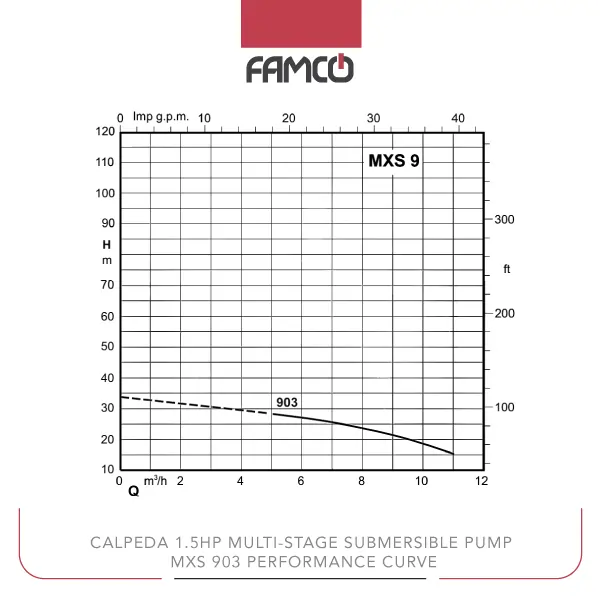

Calpeda 1.5HP Multi-stage Submersible Pump MXS 903 Performance Data
| m3 /h | 0 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| l/min | 0 | 83.3 | 100 | 117 | 133 | 150 | 167 | 183 |
| H (m) | 34 | 28.2 | 26.8 | 25.2 | 23.3 | 21.2 | 18.5 | 15.5 |
Calpeda 1.5HP Multi-stage Submersible Pump MXS 903 Applications
- Water supply systems
- Irrigation and drainage
- Food processing industries
- Pharmaceutical manufacturing
Calpeda 1.5HP Multi-stage Submersible Pump MXS 903 Benefits
- High efficiency with low energy consumption
- Durable construction for long-lasting use
- Versatile applications across various industries
- Safe for food and pharmaceutical use
Calpeda 1.5HP Multi-stage Submersible Pump MXS 903 Price List
| No. | Name | Price |
| 1 | Calpeda 1.5HP Multi-stage Submersible Pump MXS 903 Price | Contact us |
