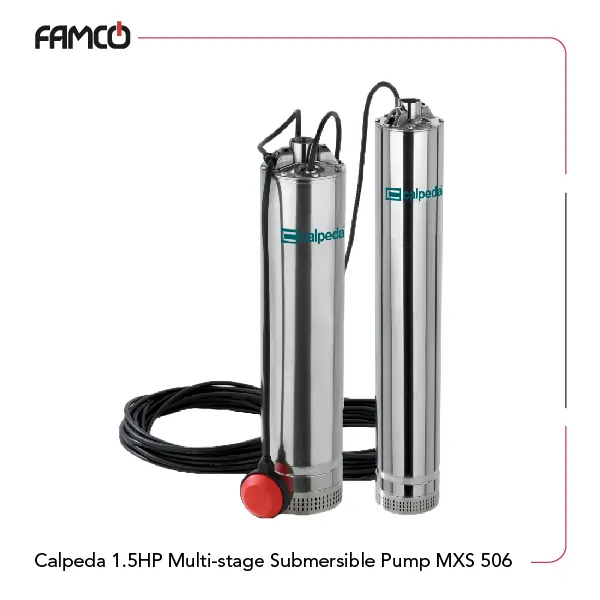

Calpeda 1.5HP Multi-stage Submersible Pump MXS 506 Specifications
Calpeda 1.5HP multi-stage submersible pump MXS 506 is designed for reliable performance in various applications. It can handle liquid temperatures up to 35° C, which is suitable for many environments. The minimum immersion depth in this pump is 100 mm, while the maximum depth reaches 20 m, given the right cable length. This Calpeda pump has a frequency of 50 Hz and a rotation speed of approximately 2900 rpm to operate efficiently. The voltage options include single-phase at 230 V and three-phase at 230-400 V. This Calpeda submersible pump also features an insulation class of F and a protection class of IP X8 for utmost durability even in continuous immersion scenarios. The humidity-proof dry winding is achieved through triple impregnation for enhanced longevity. This powerful product has eight impellers made from PPO-GF20 (Noryl) and a sturdy shaft constructed from chrome-nickel steel (AISI 304). The mechanical seals are designed for optimal performance, with the upper seal made of steatite, carbon, and NBR, while the lower seal uses carbon, silicon carbide, and NBR. It is lubricated with oil suitable for food machinery and pharmaceutical use. The power output is 1.1 kW (1.5 HP), and it can achieve a head of 16-66.5 m.
| Specification | Value |
| Liquid temperature | up to 35° C |
| Minimum immersion depth | 100 mm |
| Maximum immersion depth | 20 m (with suitable cable length) |
| No. of poles | 2 |
| Frequency (Hz) | 50 |
| Rotation speed | ≈ 2900 rpm |
| Voltage (V) | single-phase (230) |
| three-phase (230-400) | |
| Insulation class | F |
| Protection Class | IP X8 (for continuous immersion) |
| Humidity-proof dry winding | Triple impregnation |
| No. of impellers | 8 |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Head (m) | 16-66.5 |
Calpeda 1.5HP Multi-stage Submersible Pump MXS 506 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbon, Silicon Carbide, NBR
- Seal lubrication oil: for food machinery and pharmaceutical use oil
Calpeda 1.5HP Multi-stage Submersible Pump MXS 506 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MPS 503 | G 1 1/4 | 622 | 7 | 133 | 17.2 |
| MPSM 503 | G 1 1/4 | 622 | 7 | 133 | 18.6 |

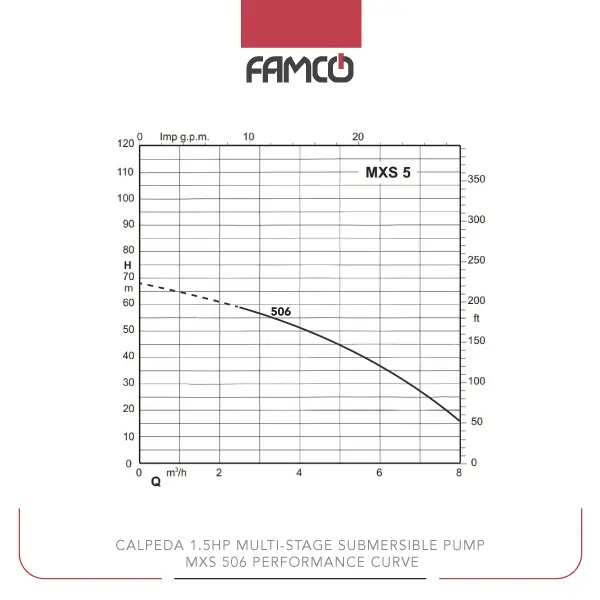

Calpeda 1.5HP Multi-stage Submersible Pump MXS 506 Technical Data
| m3 /h | 0 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7 | 8 |
| l/min | 0 | 41.6 | 50 | 58.3 | 66.6 | 75 | 83.3 | 100 | 117 | 133 |
| H (m) | 66.5 | 58 | 56.5 | 53.5 | 51 | 48 | 45 | 36.5 | 27.5 | 16 |
Calpeda 1.5HP Multi-stage Submersible Pump MXS 506 Applications
- Industrial liquid transfer
- Food processing and handling
- Pharmaceutical manufacturing
- Water treatment systems
Calpeda 1.5HP Multi-stage Submersible Pump MXS 506 Benefits
- High efficiency with low energy consumption
- Durable construction for long-lasting use
- Versatile voltage options for various setups
- Safe for use in food and pharmaceutical applications
Calpeda 1.5HP Multi-stage Submersible Pump MXS 506 Price List
| No. | Name | Price |
| 1 | Calpeda 1.5HP Multi-stage Submersible Pump MXS 506 Price | Contact us |
