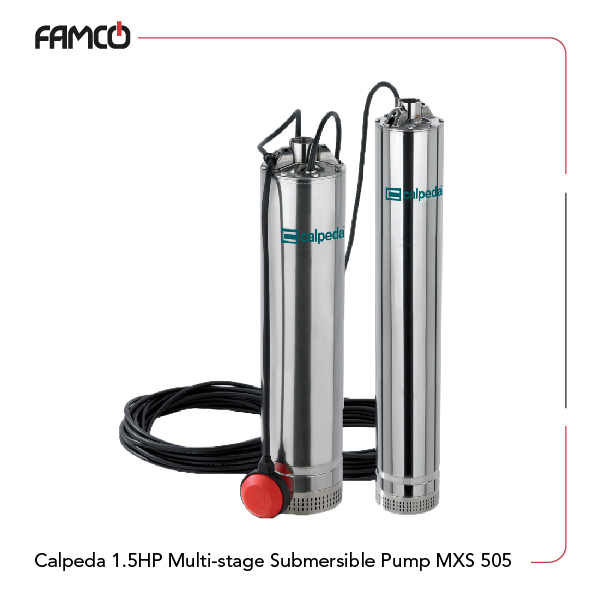

Calpeda 1.5HP Multi-stage Submersible Pump MXS 505 Specifications
Calpeda 1.5HP multi-stage submersible pump MXS 505 is designed for efficient operation in various applications successfully. Data shows that it handles liquid temperatures up to 35° C and has a minimum immersion depth of 100 mm and a maximum depth of 20 m when using the appropriate cable length. The product’s motor operates at a frequency of 50 Hz and has a rotation speed of approximately 2900 rpm. This Calpeda pump is available in both single-phase (230 V) and three-phase (230-400 V) configurations. The insulation class is rated at F to reach a reliable performance. This Calpeda submersible pump comes in with an IP X8 protection class; suitable for continuous immersion in water. This pump features a total of 8 impellers made from PPO-GF20 (Noryl) and a shaft constructed from chrome-nickel steel (AISI 304). The mechanical seals are designed specifically for durability, using materials like steatite, carbon, and NBR. Additionally, the seal lubrication oil is suitable for food machinery and pharmaceutical applications. The power output is 1.1 kW (1.5 HP), and it can achieve a head of 13.5 to 53 meters.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 8 | |
| Power (kW) | 1.1 | |
| Power (HP) | 1.5 | |
| Head (m) | 13.5-53 | |
Calpeda 1.5HP Multi-stage Submersible Pump MXS 505 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: S: Carbone, Silicon Carbide, NBR
- Seal lubrication oil: for food machinery and pharmaceutical use Oil

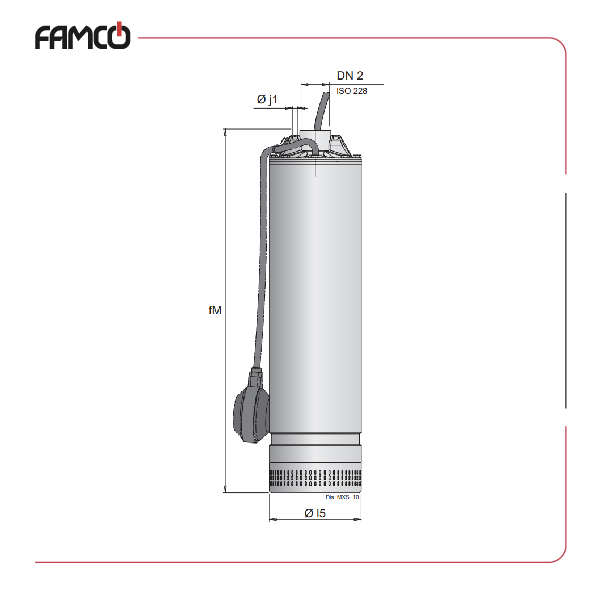

Calpeda 1.5HP Multi-stage Submersible Pump MXS 505 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MXS 505 | G 1 1/4 | 553 | 7 | 133 | 14.6 |
| MXSM 505 | G 1 1/4 | 553 | 7 | 133 | 15.9 |

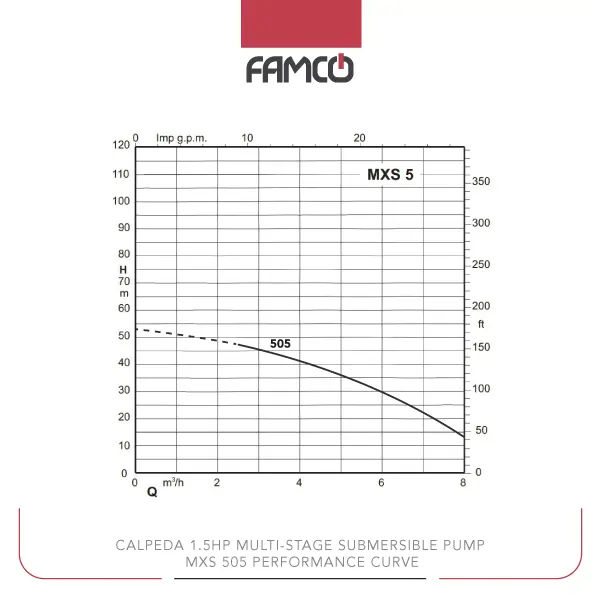

Calpeda 1.5HP Multi-stage Submersible Pump MXS 505 Technical Data
| m3 /h | 0 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 |
6 |
7 |
8 |
| l/min | 0 | 41.6 | 50 | 58.3 | 66.6 | 75 | 83.3 |
100 |
117 |
133 |
| H (m) | 53 | 47.5 | 45.5 | 43.5 | 41 | 38.5 | 35.5 |
29.5 |
22 |
13.5 |
Calpeda 1.5HP Multi-stage Submersible Pump MXS 505 Applications
- Food processing and handling
- Pharmaceutical manufacturing
- Water treatment facilities
- Irrigation systems
Calpeda 1.5HP Multi-stage Submersible Pump MXS 505 Benefits
- High efficiency with low energy consumption
- Durable construction for long-lasting use
- Safe for food and pharmaceutical applications
- Versatile immersion depth for various setups
Calpeda 1.5HP Multi-stage Submersible Pump MXS 505 Price List
| No. | Name | Price |
| 1 | Calpeda 1.5HP Multi-stage Submersible Pump MXS 505 Price | Contact us |
