Calpeda 1.5HP Multi-stage Submersible Pump MXS 308 Specifications
Calpeda 1.5HP multi-stage submersible pump MXS 308 is designed for efficient operation in various applications. It can handle liquid temperatures up to 35° C and has a minimum immersion depth of 100 mm. A maximum depth of 20 m when using the appropriate cable length makes it applicable at distant places. The product’s motor operates at a frequency of 50 Hz and has a rotation speed of approximately 2900 rpm. This Calpeda pump is available in both single-phase (230 V) and three-phase (230-400 V) configurations. The insulation class is rated F to maximize durability and reliability. Based on the available information, this pump has an IP X8 protection class, which is suitable for continuous immersion in water. This product features a triple impregnation for humidity-proof dry winding, enhancing its longevity. This Dab submersible pump is equipped with 8 impellers made from PPO-GF20 (Noryl) and a shaft made of chrome-nickel steel (AISI 304). The mechanical seals of this product consist of high-quality materials to gain effective sealing and lubricatio. The power output is 1.1 kW (1.5 HP), with a head range of 32-88.5 m which is versatile for various pumping needs.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 230-400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 8 | |
| Power (kW) | 1.1 | |
| Power (HP) | 1.5 | |
| Head (m) | 32-88.5 | |
Calpeda 1.5HP Multi-stage Submersible Pump MXS 308 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbon, Silicon Carbide, NBR
- Seal lubrication oil: for food machinery and pharmaceutical use Oil

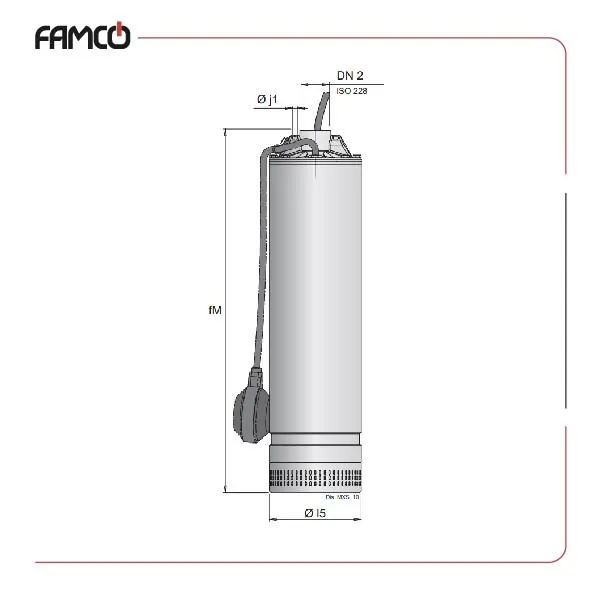

Calpeda 1.5HP Multi-stage Submersible Pump MXS 308 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MXS 308 | G 1 1/4 | 671 | 7 | 133 | 18.8 |
| MXSM 308 | G 1 1/4 | 671 | 7 | 133 | 20.5 |

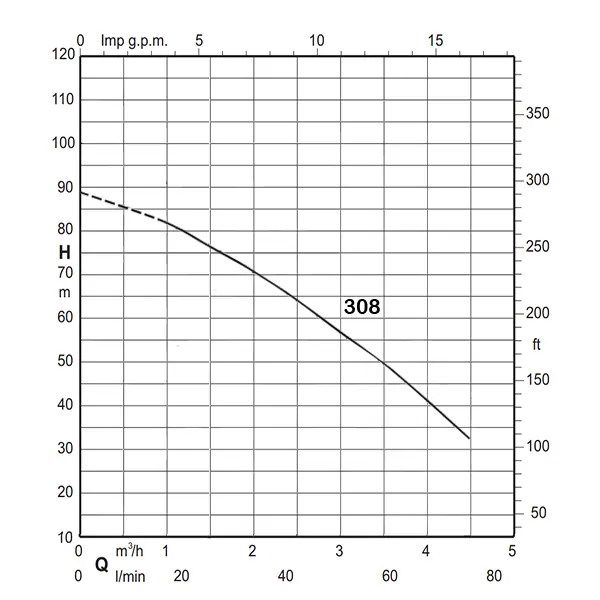

Calpeda 1.5HP Multi-stage Submersible Pump MXS 308 Performance Data
| Q= m3 /h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 |
| Q=l/min | 0 | 16.66 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 75 |
| H (m) | 88.5 | 81.5 | 76 | 70.5 | 64 | 56.5 | 49.5 | 41 | 32 |
Calpeda 1.5HP Multi-stage Submersible Pump MXS 308 Applications
- Food processing and handling
- Pharmaceutical manufacturing
- Water treatment facilities
- Industrial liquid transfer
Calpeda 1.5HP Multi-stage Submersible Pump MXS 308 Benefits
- High durability with IP X8 protection
- Efficient operation at various depths
- Versatile for food and pharmaceutical use
- Robust construction with quality materials
Calpeda 1.5HP Multi-stage Submersible Pump MXS 308 Price List
| No. | Name | Price |
| 1 | Calpeda 1.5HP Multi-stage Submersible Pump MXS 308 Price | Contact us |
