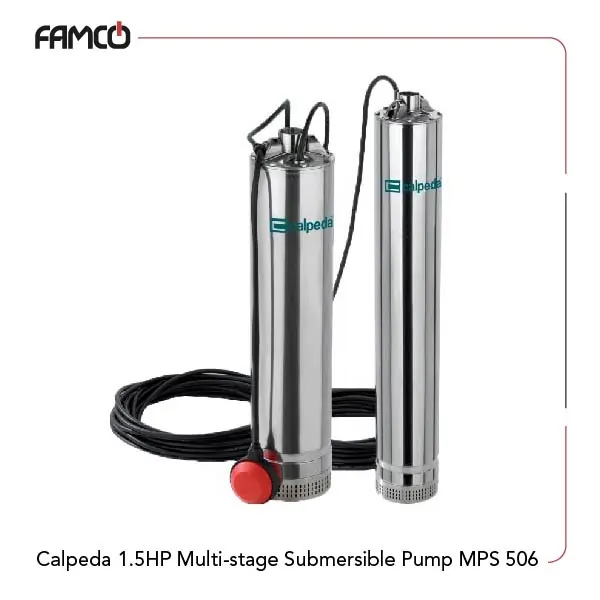

Calpeda 1.5HP Multi-stage Submersible Drainage Pump MPS 506 Specifications
Calpeda 1.5HP multi-stage submersible pump MPS 506 is designed for efficient operation approved in various applications. It can handle liquid temperatures up to 35° C which is suitable for a range of environments. The minimum immersion depth in this powerful product is 100 mm, while the maximum depth reaches 20 m with the appropriate cable length. This Calpeda submersible pump operates on a frequency of 50 Hz and has a rotation speed of approximately 2900 rpm. The voltage options include single-phase at 230 V and three-phase at 230-400 V. This pump is for continuous immersion with an insulation class of F and a protection class of IP X8. The humidity-proof dry winding features triple impregnation for added durability. This advanced product includes six impellers made from PPO-GF20 (Noryl) and a shaft crafted from chrome-nickel steel (AISI 304). The mechanical seals are also provided and designed with high-quality materials to reach utmost longevity.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 6 | |
| Power (kW) | 1.1 | |
| Power (HP) | 1.5 | |
| Head (m) | 14-66.5 | |
Calpeda 1.5HP Multi-stage Submersible Drainage Pump MPS 506 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbon, Silicon Carbide, NBR
- Seal lubrication oil: for food machinery and pharmaceutic use oil

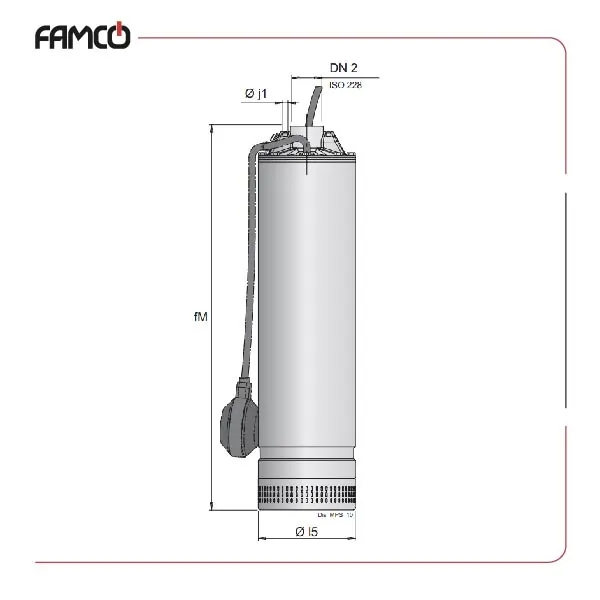

Calpeda 1.5HP Multi-stage Submersible Drainage Pump MPS 506 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MPS 506 | G 1 1/4 | 622 | 7 | 133 | 15.2 |
| MPSM 506 | G 1 1/4 | 504 | 7 | 133 | 17.2 |

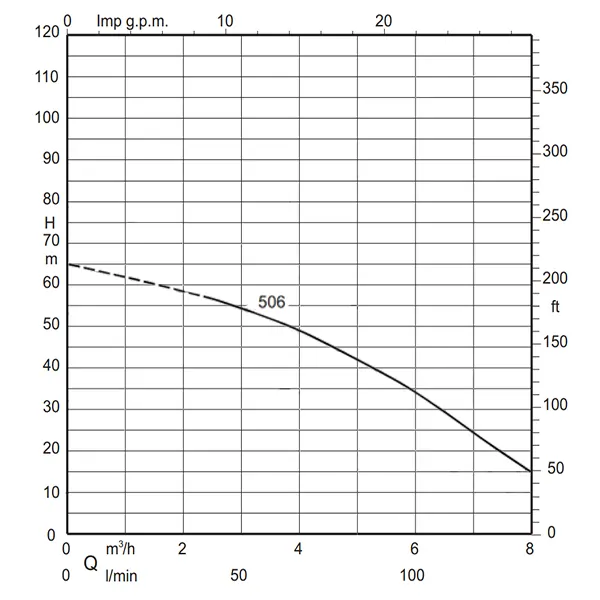

Calpeda 1.5HP Multi-stage Submersible Drainage Pump MPS 506 Performance Data
| Q= m3 /h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7 | 8 |
| Q=l/min | 0 | 16.6 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 75 | 83.3 | 100 | 117 | 133 |
| H (m) | 66.5 | – | – | – | 58 | 55.6 | 53 | 50 | 46.3 | 42.5 | 34 | 24.5 | 14 |
Calpeda 1.5HP Multi-stage Submersible Drainage Pump MPS 506 Applications
- Food processing and handling
- Pharmaceutical manufacturing
- Water treatment facilities
- Industrial liquid transfer
Calpeda 1.5HP Multi-stage Submersible Drainage Pump MPS 506 Benefits
- High efficiency with low energy consumption
- Durable construction for long-lasting performance
- Versatile for various liquid types and depths
- Reliable seals prevent leaks and contamination
Calpeda 1.5HP Multi-stage Submersible Drainage Pump MPS 506 Price List
| No. | Name | Price |
| 1 | Calpeda 1.5HP Multi-stage Submersible Drainage Pump MPS 506 Price | Contact us |
