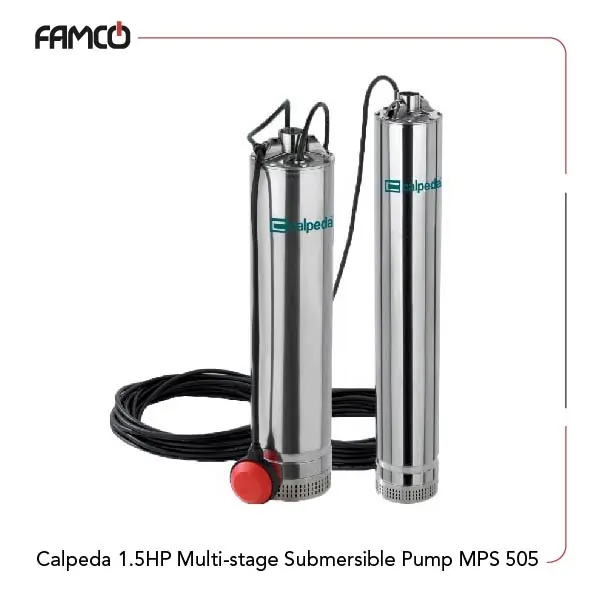

Calpeda 1.5HP Multi-stage Submersible Pump MPS 505 Specifications
Calpeda 1.5HP multi-stage submersible pump MPS 505 is designed for impressive liquid handling with a maximum temperature of 35° C. It has a minimum immersion depth that is measured at 100 mm. In effect, it can reach depths of up to 20 m, given the appropriate cable length is provided. The product’s sleek motor operates at a frequency of 50 Hz and a rotation speed of approximately 2900 rpm to deliver striking power. This model is available in both single-phase (230 V) and three-phase (230-400 V) configurations to match different usages and setups. The insulation class is rated as F to reach durability for long-term use. This Calpeda submersible pump’s IP X8 protection class has made a potent pump of it for continuous immersion in liquids. This pump features five impellers made from PPO-GF20 (Noryl) and a sturdy shaft made from chrome-nickel steel (AISI 304). The mechanical seals are designed for longevity, utilizing materials like steatite and silicon carbide.
| Specification | Value | |
| Liquid temperature | up to 35° C | |
| Minimum immersion depth | 100 mm | |
| Maximum immersion depth | 20 m (with suitable cable length) | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Rotation speed | ≈ 2900 rpm | |
| Voltage (V) | single-phase | 230 |
| three-phase | 400 | |
| Insulation class | F | |
| Protection Class | IP X8 (for continuous immersion) | |
| Humidity-proof dry winding | Triple impregnation | |
| No. of impellers | 5 | |
| Power (kW) | 1.1 | |
| Power (HP) | 1.5 | |
| Head (m) | 13.5-53 | |
Calpeda 1.5HP Multi-stage Submersible Pump MPS 505 Materials
- Impeller: PPO-GF20 (Noryl)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Steatite, carbon, NBR
- Lower mechanical seal: Carbon, Silicon Carbide, NBR

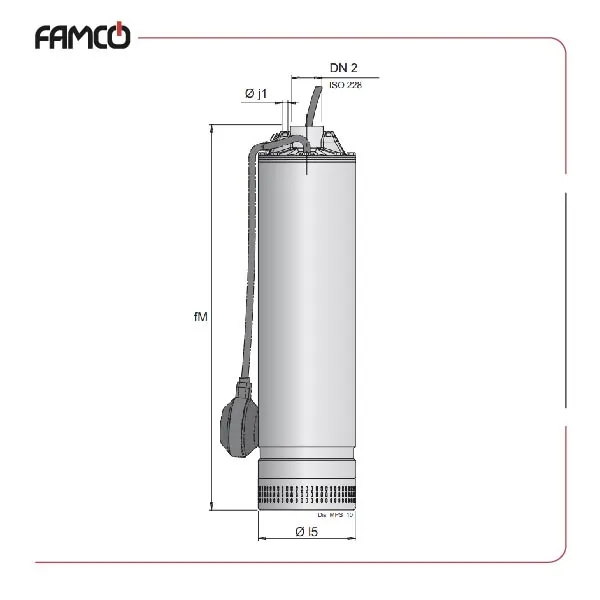

Calpeda 1.5HP Multi-stage Submersible Pump MPS 505 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||
| Model | DN2 | fM | j1 | l5 | |
| MPS 503 | G 1 1/4 | 504 | 7 | 133 | 13.6 |
| MPSM 503 | G 1 1/4 | 504 | 7 | 133 | 11.4 |

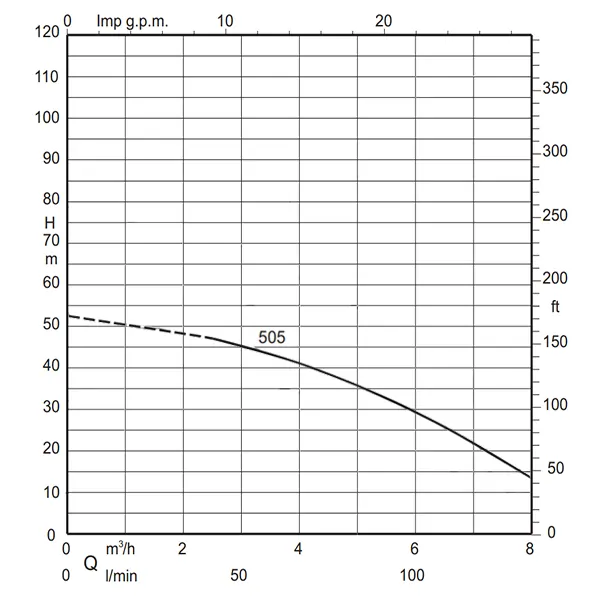

Calpeda 1.5HP Multi-stage Submersible Pump MPS 505 Performance Data
| Q= m3 /h | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7 | 8 |
| Q=l/min | 0 | 16.6 | 25 | 33.3 | 41.6 | 50 | 58.3 | 66.6 | 75 | 83.3 | 100 | 117 | 133 |
| H (m) | 53 | – | – | – | 47.5 | 45.5 | 43.5 | 41 | 38.5 | 35.5 | 29.5 | 22 | 13.5 |
Calpeda 1.5HP Multi-stage Submersible Pump MPS 505 Applications
- Water supply systems
- Industrial liquid transfer
- Food processing facilities
- Pharmaceutical manufacturing
Calpeda 1.5HP Multi-stage Submersible Pump MPS 505 Benefits
- High efficiency with low energy consumption
- Durable construction for long-lasting use
- Safe for food and pharmaceutical applications
- Versatile for various liquid types and depths
Calpeda 1.5HP Multi-stage Submersible Pump MPS 505 Price List
| No. | Name | Price |
| 1 | Calpeda 1.5HP Multi-stage Submersible Pump MPS 505 Price | Contact us |
