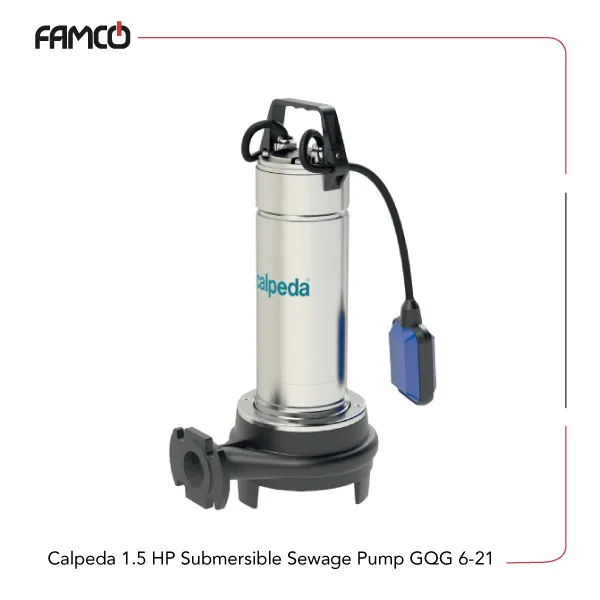

Calpeda 1.5 HP Submersible Sewage Pump GQG 6-21 Specifications
This pump features a robust cast iron casing and impeller, designed for durability and efficient performance. It operates with a 2-pole motor, suitable for both single-phase (230V) and three-phase (400V) power supplies. The motor power is 1.1 kW or 1.5 HP, providing a maximum head of 19.2 meters and a flow rate of 280 liters per minute. It is built for continuous duty with a submerged motor, capable of handling liquids up to 35°C. The pump can be immersed up to 5 meters deep, with a minimum immersion requirement of 300 mm. Mechanical seals are made of ceramic, carbon, and NBR, ensuring reliable sealing and long service life. The Calpeda submersible pump‘s weight varies slightly depending on the power supply, with 18.6 kg for single-phase and 21.8 kg for three-phase models. This Calpeda sewage pump includes a grinder from the GQ series, enhancing its versatility for various applications. The design emphasizes durability, efficiency, and ease of use in demanding environments, making it suitable for industrial, municipal, or agricultural uses where reliable liquid transfer is essential.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 400 |
| Grinder | included in GQ series |
| Maximum liquid temperature | 35 °C |
| Immersion depth | 5 m max |
| Minimum immersion depth | 300 mm |
| Continuous duty | with submerged motor |
| Pump casing | Cast iron |
| Impeller | Cast iron |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Ceramic / Carbon / NBR |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Head (m) | 19.2 |
| Flow rate (l/min) | 280 |
| Single-phase weight (kg) | 18.6 |
| Three-phase weight (kg) | 21.8 |

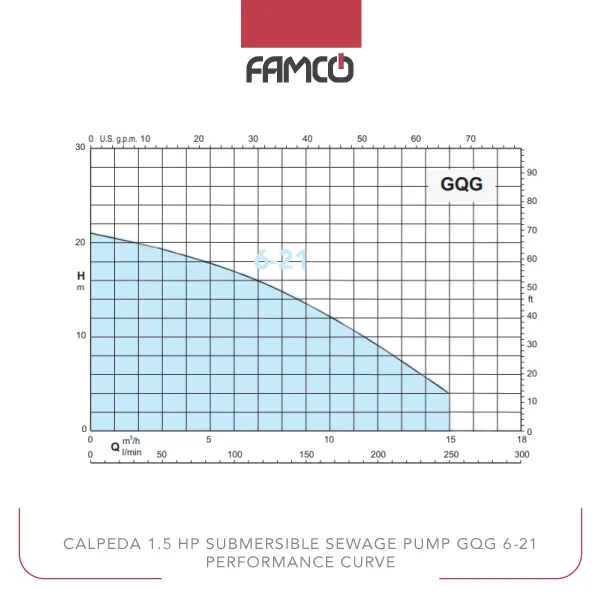

Calpeda 1.5 HP Submersible Sewage Pump GQG 6-21 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 13.2 | 15 |
| l/min | 0 | 50 | 100 | 150 | 200 | 220 | 250 |
| Head (m) | 21 | 19.2 | 17 | 13.5 | 9 | 7 | 4 |
Calpeda 1.5 HP Submersible Sewage Pump GQG 6-21 Applications
- Wastewater and sewage pumping
- Industrial liquid transfer
- Municipal water management
- Agricultural irrigation systems
Calpeda 1.5 HP Submersible Sewage Pump GQG 6-21 Benefits
- Durable cast iron construction for long-lasting use
- Suitable for both single-phase and three-phase power supplies
- High flow rate and head for efficient performance
- Includes grinder for handling solids and debris
Calpeda 1.5 HP Submersible Sewage Pump GQG 6-21 Price List
| No. | Name | Price |
| 1 | Calpeda 1.5 HP Submersible Sewage Pump GQG 6-21 Price | Contact us |
