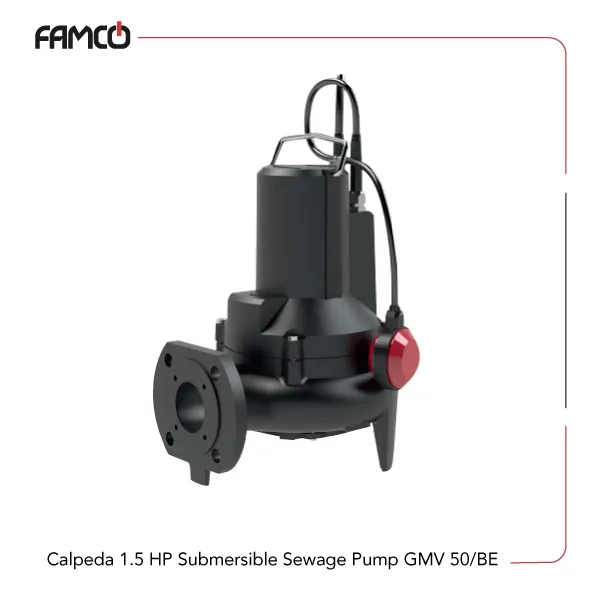

Calpeda 1.5 HP Submersible Sewage Pump GMV 50/BE Specifications
This pump features a robust cast iron casing and impeller, designed for durability and efficient operation. It operates at approximately 2900 rpm and supports both single-phase 230V and three-phase 230V or 400V power supplies. The device has an insulation class F, ensuring safety and reliability during prolonged use. Its protection rating is IP X8, making it suitable for submersion up to 10 meters deep. Capable of handling liquids with a pH range of 6 to 11, the maximum liquid temperature this Calpeda submersible pump’s tolerates stands at 35°C. This GMV series Calpeda pump has the advantage of using high-quality mechanical seals with ceramic, carbon, and NBR materials in the upper part, and silicon carbide with NBR in the lower part, ensuring leak-proof operation. With a power output of 1.1 kW (1.5 HP), this Calpeda sewage pump delivers a maximum head of 10.7 meters and a flow rate of 650 liters per minute, making it ideal for various water transfer applications. Its design emphasizes durability, efficiency, and safe/product-tag/calpeda-submersible-pumps/ty, suitable for both residential and industrial uses where reliable liquid handling is required.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 230, 400 |
| Speed (rpm) | ≈2900 |
| Insulation class | F |
| Protection | IP X8 |
| Immersion depth | 10 m max |
| Max. liquid pH value | 6-11 |
| Maximum liquid temperature (°C) | 35 |
| Pump casing | Cast iron |
| Impeller | Cast iron |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Silicon carbide / Silicon carbide / NBR |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Head (m) | 10.7 |
| Flow rate (l/min) | 650 |
Calpeda 1.5 HP Submersible Sewage Pump GMV 50/BE Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 35 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 583 |
| Head (m) | 10.7 | 9.5 | 8 | 6.5 | 4.5 | 2.5 | 1 |
Calpeda 1.5 HP Submersible Sewage Pump GMV 50/BE Applications
- Water drainage in residential or industrial settings
- Irrigation systems for agriculture
- Water transfer in construction sites
- Flood control and emergency water removal
Calpeda 1.5 HP Submersible Sewage Pump GMV 50/BE Benefits
- Durable cast iron construction for long-lasting use
- Supports multiple voltage options for versatility
- High protection rating IP X8 for underwater operation
- Efficient flow rate and head for various water tasks
Calpeda 1.5 HP Submersible Sewage Pump GMV 50/BE Price List
| No. | Name | Price |
| 1 | Calpeda 1.5 HP Submersible Sewage Pump GMV 50/BE Price | Contact us |
