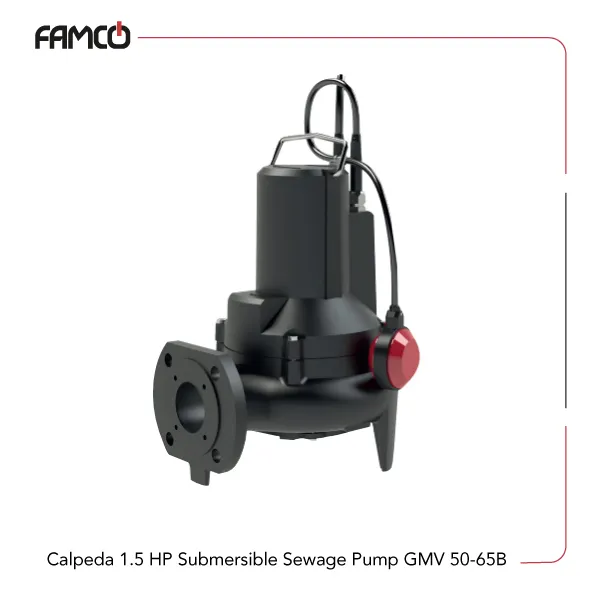

Calpeda 1.5 HP Submersible Sewage Pump GMV 50-65B Specifications
This pump features a robust cast iron casing and impeller, designed for durability and efficient operation. It operates at approximately 2900 rpm, suitable for various applications requiring steady flow and reliable performance. The device supports both single-phase and three-phase power supplies, with voltages of 230V and 400V, respectively. Its insulation class is F, ensuring safety and efficiency under continuous use. The pump is protected with an IP X8 rating, making it suitable for submersion up to 10 meters deep. It can handle liquids with a pH range of 6 to 11 and a maximum temperature of 35°C, making this Calpeda sewage pump a perfect match for a range of liquid types. The mechanical seals are made of ceramic, carbon, and NBR for upper seals, and silicon carbide and NBR for lower seals, providing excellent sealing and longevity. With a power output of 1.1 kW (1.5 HP), it delivers a head of 10.7 meters and a flow rate of 650 liters per minute, making this Calpeda submersible pump more than fitting when it comes to water transfer, irrigation, and industrial applications. The pump’s design ensures reliable operation even in demanding environments, with features that support long-term use and minimal maintenance.
| Specification | Value |
| Number of poles | 2 |
| Single-phase voltage (V) | 230 |
| Three-phase voltage (V) | 230, 400 |
| Speed (rpm) | ≈2900 |
| Insulation class | F |
| Protection | IP X8 |
| Immersion depth | 10 m max |
| Max. liquid pH value | 6-11 |
| Maximum liquid temperature (°C) | 35 |
| Pump casing | Cast iron |
| Impeller | Cast iron |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Silicon carbide / Silicon carbide / NBR |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Head (m) | 10.7 |
| Flow rate (l/min) | 650 |

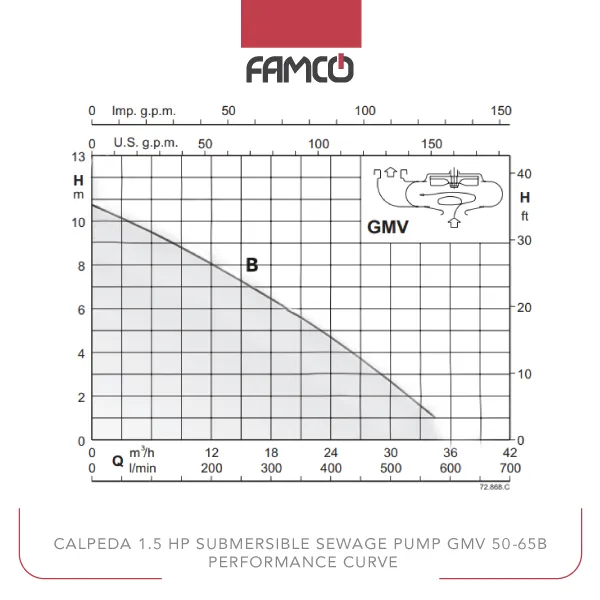

Calpeda 1.5 HP Submersible Sewage Pump GMV 50-65B Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 35 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 583 |
| Head (m) | 10.7 | 9.5 | 8 | 6.5 | 4.5 | 2.5 | 1 |
Calpeda 1.5 HP Submersible Sewage Pump GMV 50-65B Applications
- Water transfer in residential and industrial settings
- Irrigation systems for agriculture
- Deep well water pumping
- Fluid transfer in construction sites
Calpeda 1.5 HP Submersible Sewage Pump GMV 50-65B Benefits
- Durable cast iron construction for long-lasting use
- Supports both single-phase and three-phase power supplies
- High protection level suitable for submersion
- Efficient performance with steady flow and high head
Calpeda 1.5 HP Submersible Sewage Pump GMV 50-65B Price List
| No. | Name | Price |
| 1 | Calpeda 1.5 HP Submersible Sewage Pump GMV 50-65B Price | Contact us |
There are no reviews yet.
