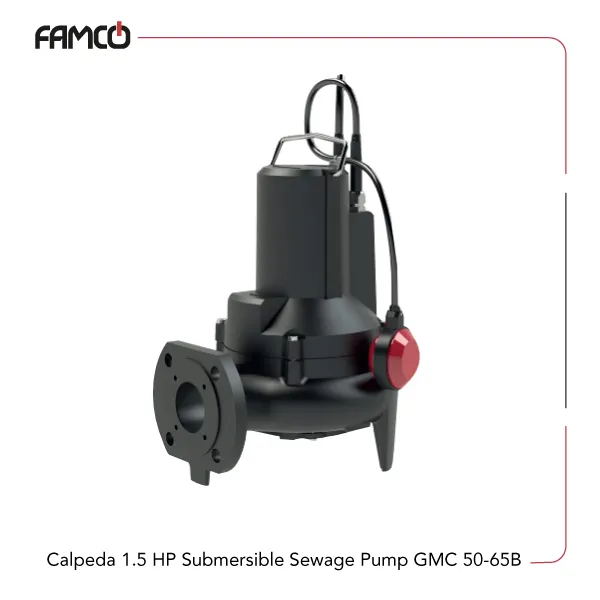

Calpeda 1.5 HP Submersible Sewage Pump GMC 50-65B Specifications
This pump features a robust cast iron casing and impeller, designed for durability and efficient operation. It operates at approximately 2900 rpm, suitable for various applications requiring steady flow and reliable performance. The Calpeda submersible pump you see here has the ability to support different power setups, with both single-phase and three-phase power supplies, with voltages of 230V and 400V. Safety-wise, this Calpeda sewage pump’s insulation class is F, guaranteeing unwavering results under operational stresses. The pump is protected with an IP X8 rating, making this Calpeda sewage pump suitable for submersion up to 10 meters deep. It handles liquids with a pH range of 6 to 11 and can operate in temperatures up to 35°C. The mechanical seals implemented in the 50-65B Calpeda sewage pump are made of ceramic, carbon, and NBR for upper seals, while the lower seals are silicon carbide and NBR, providing excellent sealing and longevity. With a power output of 1.1 kW (1.5 HP), this pumping solution can generate a head of 15.5 meters and a flow rate of 800 liters per minute, making it ideal for water transfer, irrigation, and industrial applications.
| Specification | Value |
| Number of poles | 2 |
| Three-phase voltage (V) | 230, 400 |
| Single-phase voltage (V) | 230 |
| Speed (rpm) | ≈2900 |
| Insulation class | F |
| Protection | IP X8 |
| Immersion depth | 10 m max |
| Max. liquid pH value | 6-11 |
| Maximum liquid temperature (°C) | 35 |
| Pump casing | Cast iron |
| Impeller | Cast iron |
| Upper mechanical seal | Ceramic / Carbon / NBR |
| Lower mechanical seal | Silicon carbide / Silicon carbide / NBR |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Head (m) | 15.5 |
| Flow rate (l/min) | 800 |
Calpeda 1.5 HP Submersible Sewage Pump GMC 50-65B Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 |
| Head (m) | 15.5 | 12.5 | 10 | 8.5 | 6.5 | 5 | 3 | 1 |
Calpeda 1.5 HP Submersible Sewage Pump GMC 50-65B Applications
- Irrigation systems for agriculture
- Water transfer in industrial processes
- Residential water supply and drainage
- Deep well and submersible applications
Calpeda 1.5 HP Submersible Sewage Pump GMC 50-65B Benefits
- Durable cast iron construction for long-lasting use
- Supports both single-phase and three-phase power supplies
- High protection rating IP X8 for submersion up to 10 meters
- Efficient flow rate of 800 liters per minute with a 15.5-meter head
Calpeda 1.5 HP Submersible Sewage Pump GMC 50-65B Price List
| No. | Name | Price |
| 1 | Calpeda 1.5 HP Submersible Sewage Pump GMC 50-65B Price | Contact us |
