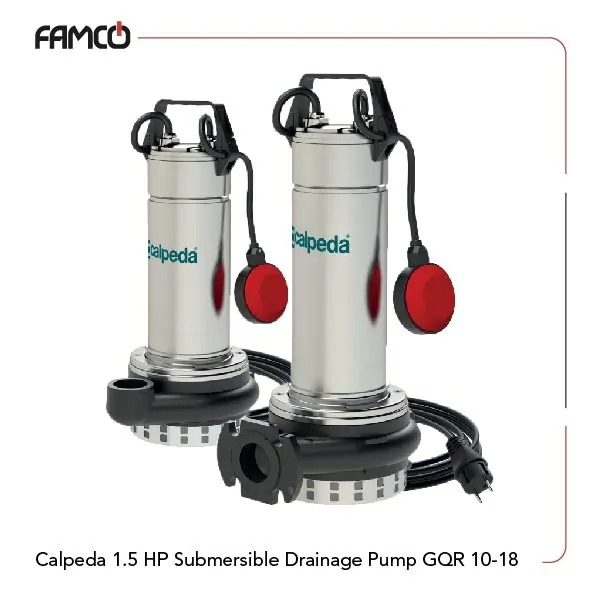

Calpeda 1.5 HP Submersible Drainage Pump GQR 10-18 Specifications
Calpeda 1.5 HP submersible drainage pump GQR 10-18 presents users with high performance across various applications. This Calpeda drainage pump operates at a frequency of 50 Hz and supports both three-phase (230-400 V) and single-phase (230 V) voltage. The insulation class of this product is rated F to make it more durable under high temperatures. This sturdy pump has an IP X8 protection rating to handle continuous immersion in water, even at wet environments. This pump features a single impeller. Constructed from cast iron, this pump provides strength and longevity. It can operate in liquid temperatures up to 35°C and has a maximum immersion depth of 5 meters, with a minimum depth of 205 mm. The mechanical seals incorporated in this product are made from ceramic, carbon, and NBR, offering effective sealing and protection against leaks. This pump weighs 17.5 kg and has a power output of 1.1 kW (1.5 HP), with a head range of 4.3 to 18 meters.
| Specification | Value | |
| No. of poles | 2 | |
| Frequency (Hz) | 50 | |
| Voltage (V) | three-phase | 230-400 |
| single-phase | 230 | |
| Insulation class | F | |
| Protection | IP X8 (for continuous immersion) | |
| humidity-proof dry winding | Triple impregnation | |
| Maximum immersion depth | 5 m | |
| Minimum immersion depth | 205 mm | |
| Continuous duty | with submerged motor | |
| Liquid temperature | up to 35° C | |
| No. of impellers | single-impeller | |
| Power (kW) | 1.1 | |
| Power (HP) | 1.5 | |
| Head (m) | 4.3-18 | |
| Weight (kg) | 17.5 | |
Calpeda 1.5 HP Submersible Drainage Pump GQR 10-18 Materials
- No. of impellers: single-impeller
- Pump casing: Cast iron GJL EN 1561
- Impeller: Cast iron GJL EN 1561
- Handle: Polypropylene (with frame made of 1.4301 EN 10088 (AISI 304)
- Shaft: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
- Upper mechanical seal: Ceramic / Carbon / NBR
- Lower mechanical seal: Ceramic / Carbon / NBR
- Seal lubrication oil: Oil for food/pharmaceutical machinery
Calpeda 1.5 HP Submersible Drainage Pump GQR 10-18 Technical Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Head (m) | 18 | 17.5 | 17 | 16.2 | 15 | 13.7 | 11.8 | 9 | 7 | 4.3 |
Calpeda 1.5 HP Submersible Drainage Pump GQR 10-18 Applications
- Irrigation systems for agriculture
- Drainage in construction sites
- Water transfer in industrial processes
- Flood control and management
Calpeda 1.5 HP Submersible Drainage Pump GQR 10-18 Benefits
- Durable cast iron construction for long-lasting use
- High immersion depth capability for versatile applications
- Efficient operation in submerged conditions
- Advanced sealing technology for leak prevention
Calpeda 1.5 HP Submersible Drainage Pump GQR 10-18 Price List
| No. | Name | Price |
| 1 | Calpeda 1.5 HP Submersible Drainage Pump GQR 10-18 Price | Contact us |
