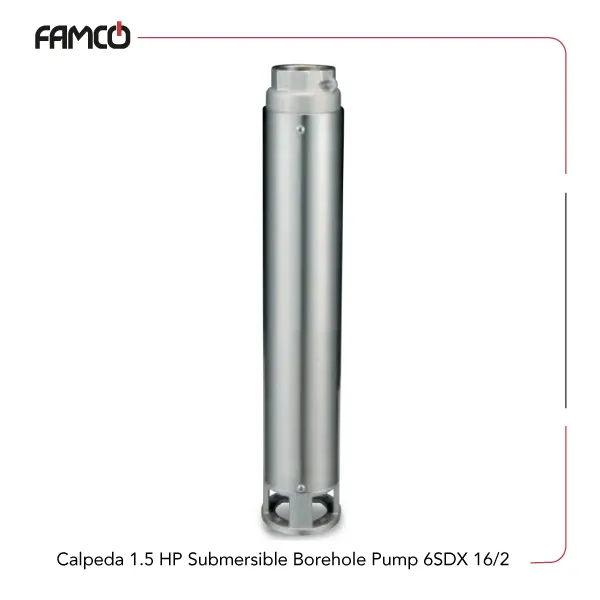

Calpeda 1.5 HP Submersible Borehole Pump 6SDX 16/2 Specifications
This product is a robust three-phase pump designed for demanding applications. It operates at a voltage of 400 V or 690 V, with a power output of 1.1 kW, equivalent to 1.5 HP. The pump can generate a maximum delivery head of 22 meters, making it suitable for various water transfer tasks. It has a high flow rate capacity of 383 liters per minute, ensuring efficient water movement.
The motor inside this Calpeda submersible pump runs at approximately 2900 revolutions per minute, providing reliable performance. It is capable of handling water temperatures up to 30 degrees Celsius and can tolerate water with up to 50 grams of sand per cubic meter, making it suitable for water with some impurities. The pump features a two-pole motor and operates at a frequency of 50 Hz. It can be immersed up to 150 meters deep, which is ideal for deep well applications. Its IP 68 protection rating guarantees excellent durability and resistance to dust and water ingress, suitable for harsh environments and outdoor use.
| Specification | Value |
| Three-phase voltage | 400 V; 400/690 V |
| Power | 1.1 kW |
| Power (HP) | 1.5 HP |
| Max. delivery head | 22 m |
| Max. flow rate | 383 l/min |
| Speed | ≈ 2900 rpm |
| Liquid temperature | 30 °C |
| Maximum amount of sand in water | 50 g/m3 |
| Number of poles | 2 |
| Frequency | 50 Hz |
| Max. immersion depth | 150 m |
| Protection | IP 68 |

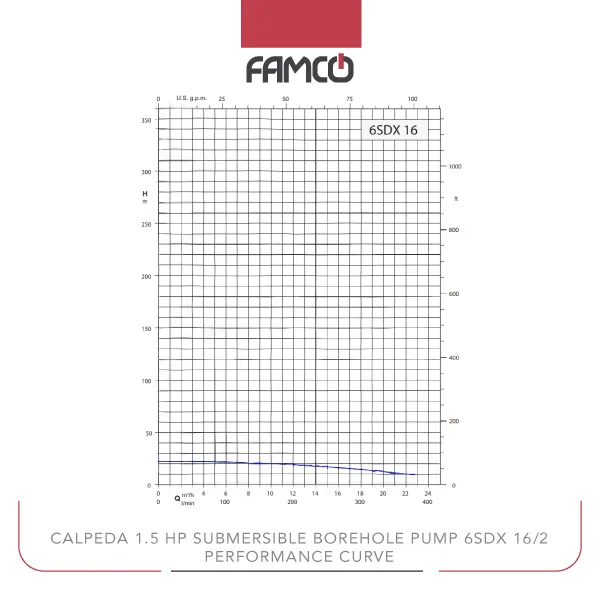

Calpeda 1.5 HP Submersible Borehole Pump 6SDX 16/2 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 23 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 383 |
| head (m) | 22 | 22 | 22 | 20 | 19 | 18 | 14 | 12 | 9 |
Calpeda 1.5 HP Submersible Borehole Pump 6SDX 16/2 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Construction site water management
Calpeda 1.5 HP Submersible Borehole Pump 6SDX 16/2 Benefits
- High flow rate for efficient water movement
- Deep immersion capability up to 150 meters
- Durable IP 68 protection for harsh environments
- Handles water with impurities up to 50 g/m3
Calpeda 1.5 HP Submersible Borehole Pump 6SDX 16/2 Price List
| No. | Name | Price |
| 1 | Calpeda 1.5 HP Submersible Borehole Pump 6SDX 16/2 Price | Contact us |
