Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/18C Specifications
With a flow rate of 70 liters per minute and a maximum head of 116 meters, this model runs at 2900 rpm delivering 1.5 HP of power. The pump is built with insulation class F, suitable for liquid temperatures up to 35°C, and can tolerate up to 50 g/m³ sand content, making it reliable for borehole applications. Among Calpeda submersible pumps, the 4SDX 3/18C offers flexibility with both single-phase and three-phase voltage options to fit different power supply requirements. Its IP 68 rating ensures safe operation under full submersion. This Calpeda submersible pump combines efficient water delivery with durable components, ideal for agricultural and residential water extraction.
| Specification | Value |
| single-phase voltage (V) | 230 |
| three-phase voltage (V) | 230-400 |
| power (kW) | 1.1 |
| power (HP) | 1.5 |
| Max. delivery head (m) | 116 |
| max. flow rate (l/min) | 70 |
| speed (rpm) | 2900 |
| Liquid temperature | 35 °C |
| Maximum amount of sand in the water | 50 g/m3 |
| number of poles | 2 |
| frequency (Hz) | 50 |
| Insulation class | F |
| Protection | IP 68 |

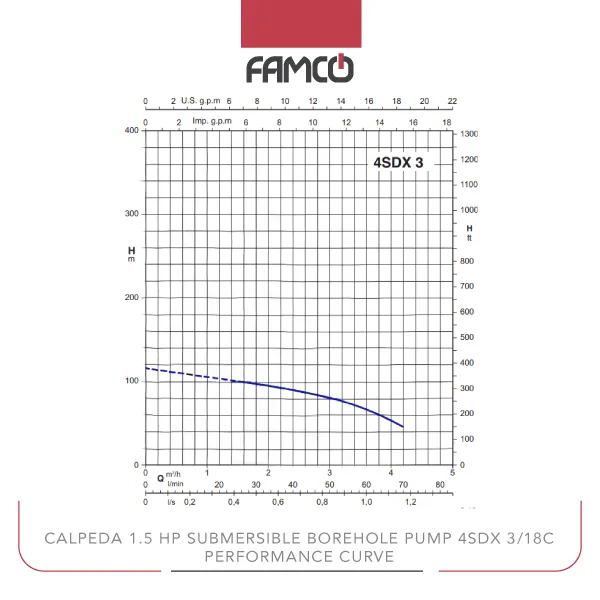

Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/18C Performance Curve
| m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 |
| head (m) | 116 | – | – | – | – | 101 | 97 | 94 | 90 | 85 | 80 | 67 | 45 |
Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/18C Applications
- Irrigation systems for agriculture
- Water supply in industrial facilities
- Flood control and drainage
- Water transfer in construction sites
Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/18C Benefits
- High durability with IP 68 protection rating
- Flexible power options for different setups
- Efficient performance with high flow and head
- Suitable for water with small sand content
Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/18C Price List
| No. | Name | Price |
| 1 | Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/18C Price | Contact us |
