Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/15C

1.1 kW (1.5 HP)

Single- or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/15C

The Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/15C delivers 1.1 kW (1.5 HP) power at 2900 rpm, with a maximum delivery head of 97 meters and a flow rate of 70 liters per minute. This pump features a 2-pole motor with insulation class F and IP 68 protection, designed for liquid temperatures up to 35°C and can handle up to 50 g/m³ of sand content. You can choose this Calpeda pump in two power setup compatible modes:

Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/15C (Single-phase)

Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/15C (Three-phase)

Related Products

Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/15C Specifications

Operating at 2900 rpm, this pump manages a flow rate of 70 liters per minute and reaches a maximum head of 97 meters. Its motor, rated at 1.5 HP, features insulation class F to ensure durability under liquid temperatures up to 35°C. The Calpeda submersible pump is built to withstand sand content up to 50 g/m³, making it suitable for challenging borehole conditions. Among Calpeda submersible pumps, this model stands out for its versatility, offering both single-phase and three-phase power options for different installation needs. The reliable IP 68 protection class further guarantees continuous operation in submerged environments. This Calpeda pump combines efficient performance with adaptability for residential, agricultural, or light industrial water extraction tasks.

Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/15C



Specification Value
Single-phase voltage (V) 230
Three-phase voltage (V) 230-400
Power (kW) 1.1
Power (HP) 1.5
Max. delivery head (m) 97
Max. flow rate (l/min) 70
Speed (rpm) 2900
Liquid temperature 35 °C
Maximum amount of sand in the water 50 g/m3
Number of poles 2
Frequency (Hz) 50
Insulation class F
Protection IP 68

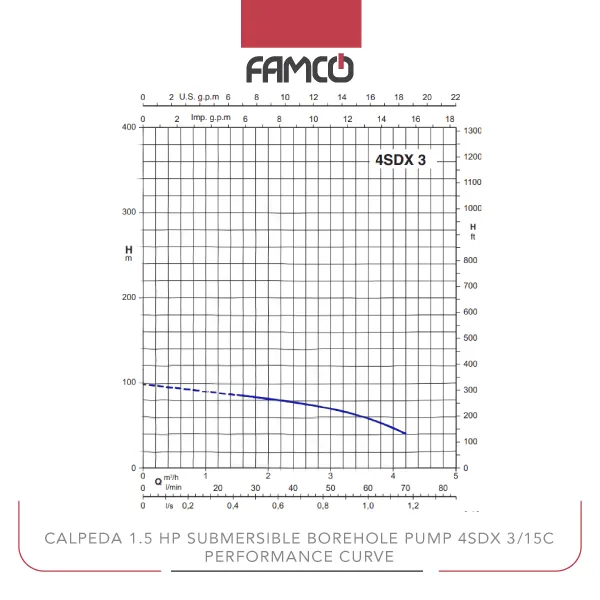

Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/15C Performance Curve

m³/h 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3 3.6 4.2
l/min 0 5 10 15 20 25 30 35 40 45 50 60 70
head (m) 97 66 64 62 58 56 52 42 28



Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/15C Performance Curve



Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/15C Applications

  • Irrigation systems in agriculture
  • Water supply for residential or commercial buildings
  • Industrial water transfer tasks
  • Fountains and water features



Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/15C Benefits

  • High durability with IP 68 protection rating
  • Flexible power options for different setups
  • Strong performance with 97 meters head and 70 l/min flow
  • Can handle water with some sand content



Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/15C Price List

No. Name Price
1 Calpeda 1.5 HP Submersible Borehole Pump 4SDX 3/15C Price Contact us
